Worcester Greenstar Heatslave II ErP 18/25

Service and Spares
Greenstar Heatslave II
ErP -
6 720 813 344 (2014/09)42

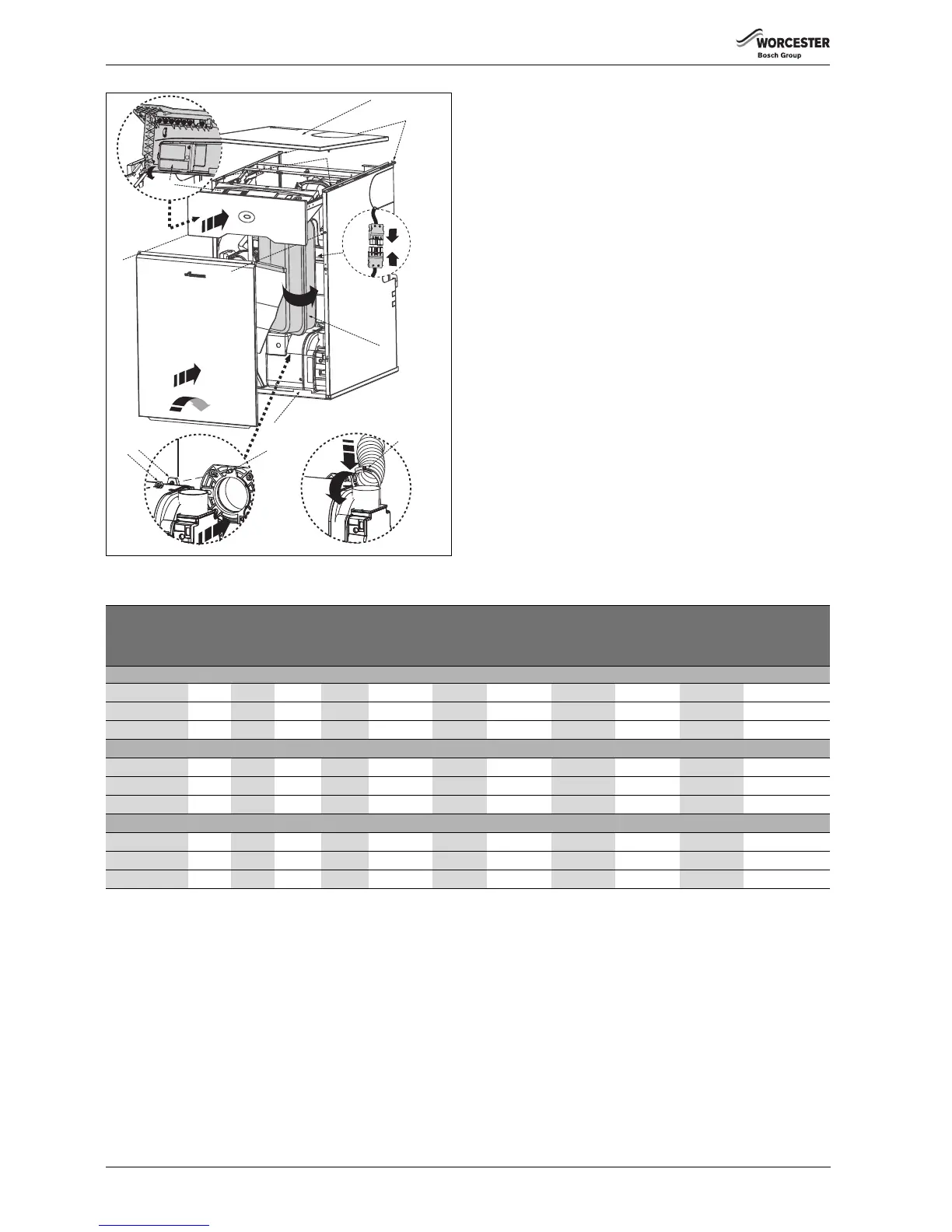

Fig. 79
Nominal boiler rating at normal operating temperature using Kerosene (Class C2)
6 720 805 209-59.1TL
7
6
1
2
3
4
A
C
B
D
L
F
K
M
M
H
G
O
N
Oil pump pressure Fuel flow rate
Approximate
flue gas
temperature
Approximate
air setting
Input
(appliance)
Output
(appliance)
Air damper
disk setting
Burner head
Nozzle bar psi Kg/h l/h °C %CO2 kW kW
Greenstar Heatslave II 12/18 model
0.35 x 80° SR
9.0 132 1.04 1.32 72 11.0 3.0 12.4 12.0 12/15 LD2X Short
0.45 x 60° ES
7.5 110 1.28 1.63 77 11.5 5.0 15.4 15 12/15 LD2X Short
0.55 x 80° ES
7.8 115 1.54 1.96 80 12.0 5.0 18.5 18.0 18 LD2X Short
Greenstar Heatslave II 18/25 model
0.50 x 80° ES
8.5 125 1.58 1.96 76 11.5 3.0 18.5 18.0 18 LD2SX Short
0.60 x 60° ES
8.5 125 1.84 2.33 81 12.0 3.5 22.1 21.5 21.5 LD2SX Short
0.75 x 80° ES
7.5 110 2.15 2.72 87 12.0 4.5 25.7 25.0 25 LD2SX Short
Greenstar Heatslave II 25/32 model
0.75 x 80° ES
7.5 110 2.15 2.72 79 11.5 3.5 25.7 25.0 N/A T2 Short
0.75 x 80° ES
10.0 147 2.46 3.12 81 12.0 4.5 29.4 28.5 N/A T2 Short
0.85 x 80° EH
9.5 140 2.78 3.52 86 12.5 5.0 33.0 32.0 N/A T2 Short
Table 9 Combustion settings
