7.2 Short parts lists
Short parts list 12/18

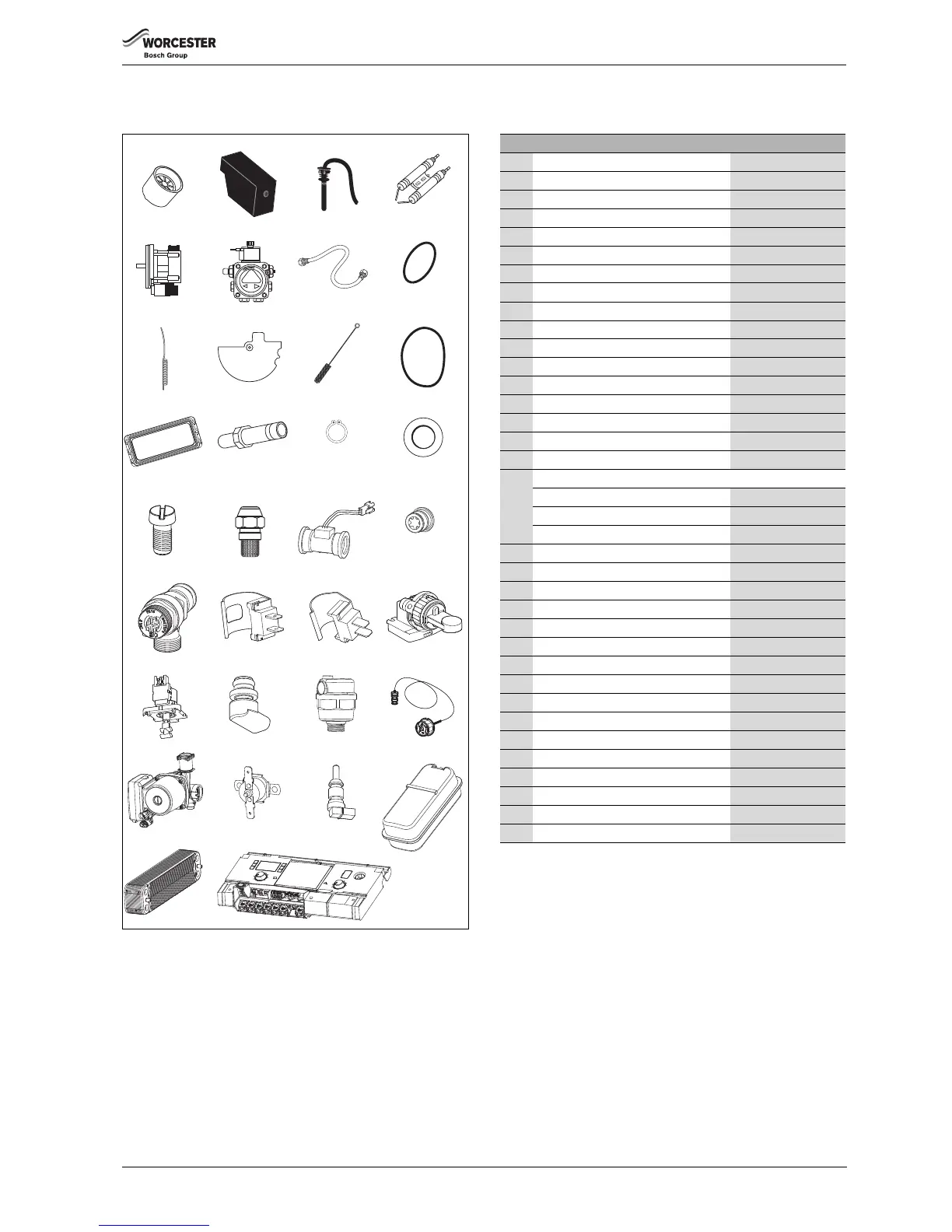

Fig. 80 Short parts list 12/18
7
8
11
15
16
17
13
12
14
2
34
5
6
9
10
1
18
19
20
22
21
24
23
26
25
28
27
30
29
32
31
34
33
6 720 805 209-60.1TL
No. Description Part No.
1 Combustion head - LD2X SH12/18 8 716 112 731 0
2 Control box MO535 MRF 8 718 682 250 0
3Photocell 8 716 109 193 0
4 Ignition electrode 8 716 109 211 0
5Motor 8 716 110 522 0
6 Oil pump - Riello RDB 8 718 689 342 0
7 Flexible oil hose kit 8 716 115 310 0
8 Burner 'O' ring 8 716 109 341 0
9 Manual reset flue thermostat 8 716 107 624 0
10 Air damper disc 12 15-18 8 718 690 377 0
11 Cleaning brush 8 716 109 428 0
12 Manifold access cover seal 8 716 107 536 0
13 Secondary Heat Exchanger gasket 8 718 690 792 0
14 Nozzle holder 8 716 116 638 0
15 Circlip 8 716 112 773 0
16 Brass air restricter washer 8 716 112 729 0
17 Flue sample point screw 8 718 682 081 0
18 Oil nozzle
0.35 80°SR (12kW output)
8 716 156 679 0
0.45 60°ES (15kW output) 8 716 114 545 0
0.55 80°EH (18kW output)
8 716 156 671 0
19 Flow turbine 8 717 002 132 0
20 Flow regulator 15 litre (Lime) 8 708 500 407 0
21 Pressure relief valve 8 718 681 163 0
22 18mm Pipe NTC 8 718 688 801 0
23 15mm Pipe NTC 8 716 010 809 0
24 Diverter valve assembly 8 716 106 845 0
25 Diverter valve motor 8 718 682 839 0
26 DHW Pressure relief valve 8 717 401 029 0
27 Auto air vent 8 718 684 401 0
28 Pressure gauge 8 718 686 357 0
29 Pump assembly 12/18 & 18/25 8 716 117 574
30 Manual reset tank thermostat 8 718 690 548 0
31 Wet sensor 8 718 684 323 0
32 Expansion vessel 8 716 107 660 0
33 Plate heat exchanger 8 716 108 212 0
34 Control box 8 718 689 480 0
Table 10
