Worcester Greenstar Heatslave II ErP 18/25

Service and Spares
Greenstar Heatslave II
ErP -
6 720 813 344 (2014/09) 45
Short parts list 25/32

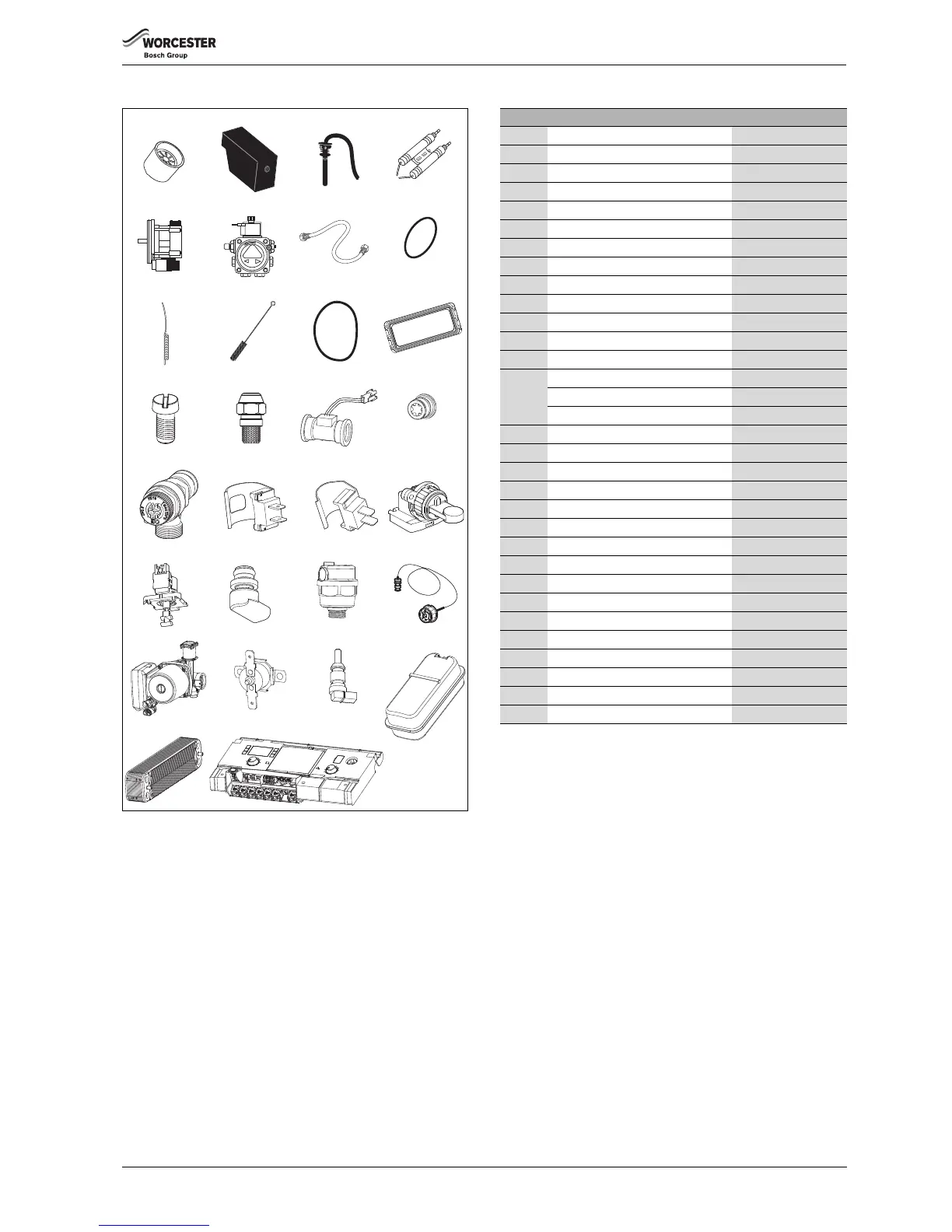

Fig. 82 Short parts list 25/32
7
8
11
15
16
17
13
12
14
2
34
5
6
9
10
1
18
19
20
22
21
24
23
26
25
28
27
30
29
6 720 805 209-62.1TL
No. Description Part number
1 Combustion head - T2 SH 25/32 8 716 112 780 0
2 Control box MO535 MRF 8 718 682 250 0
3Photocell 8 716 109 193 0
4 Ignition electrode 8 716 109 211 0
5Motor 8 716 110 522 0
6 Oil pump - Riello RDB 8 718 689 342 0
7 Flexible oil hose kit 8 716 115 310 0
8 Burner 'O' ring 8 716 109 341 0
9 Manual reset flue thermostat 8 716 107 624 0
10 Cleaning brush 8 716 109 428 0
11 Manifold access cover seal 8 718 682 849 0
12 Secondary Heat Exchanger gasket 8 718 688 799 0
13 Flue sample point screw 8 718 682 081 0
14 Oil nozzle
0.75 80°ES (25 & 28.5kW output) 8 716 109 387 0
0.85 80°EH (32kW output)
8 716 156 644 0
15 Flow turbine 8 717 002 132 0
16 Flow regulator 25 litre (Grey) 8 718 681 198 0
17 Pressure relief valve 8 718 681 163 0
18 18mm Pipe NTC 8 718 688 801 0
19 15mm Pipe NTC 8 716 010 809 0
20 Diverter valve assembly 8 716 106 845 0
21 Diverter valve motor 8 718 682 839 0
22 DHW Pressure relief valve 8 717 401 029 0
23 Auto air vent 8 718 684 401 0
24 Pressure gauge 8 718 686 357 0
25 Pump assembly 25/32 8 716 117 628
26 Manual reset tank thermostat 8 718 690 548 0
27 Wet sensor 8 718 684 323 0
28 Expansion vessel 8 716 107 660 0
29 Plate heat exchanger 8 716 108 212 0
30 Control box 8 718 689 480 0
Table 12 Short parts 25/32
