Work Microwave VSCU - Status Indicators

Satellite Upconverter Manual WORK Microwave
39 / 49 V151207

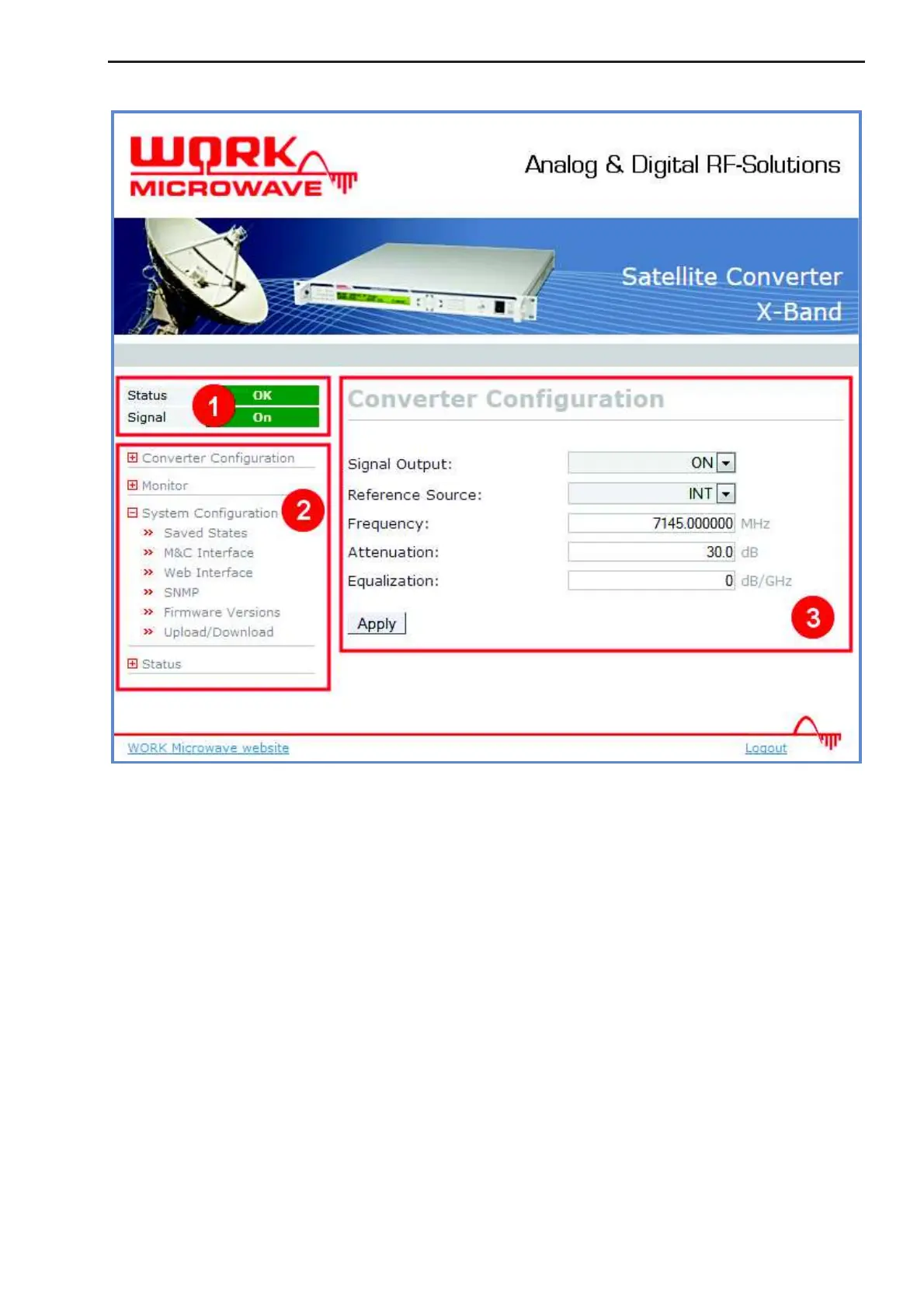

Figure 18: Page sections
1. Status indicators
2. Navigation bar
3. Main area
The three areas are described in the following chapters.
4.4.1 Status Indicators
The two most important status indicators of the device are always displayed on the upper left. The different
status types are illustrated in the table below.
