A - 4 Workabout Pro4 (Windows Embedded Hand-Held 6.5) User Manual

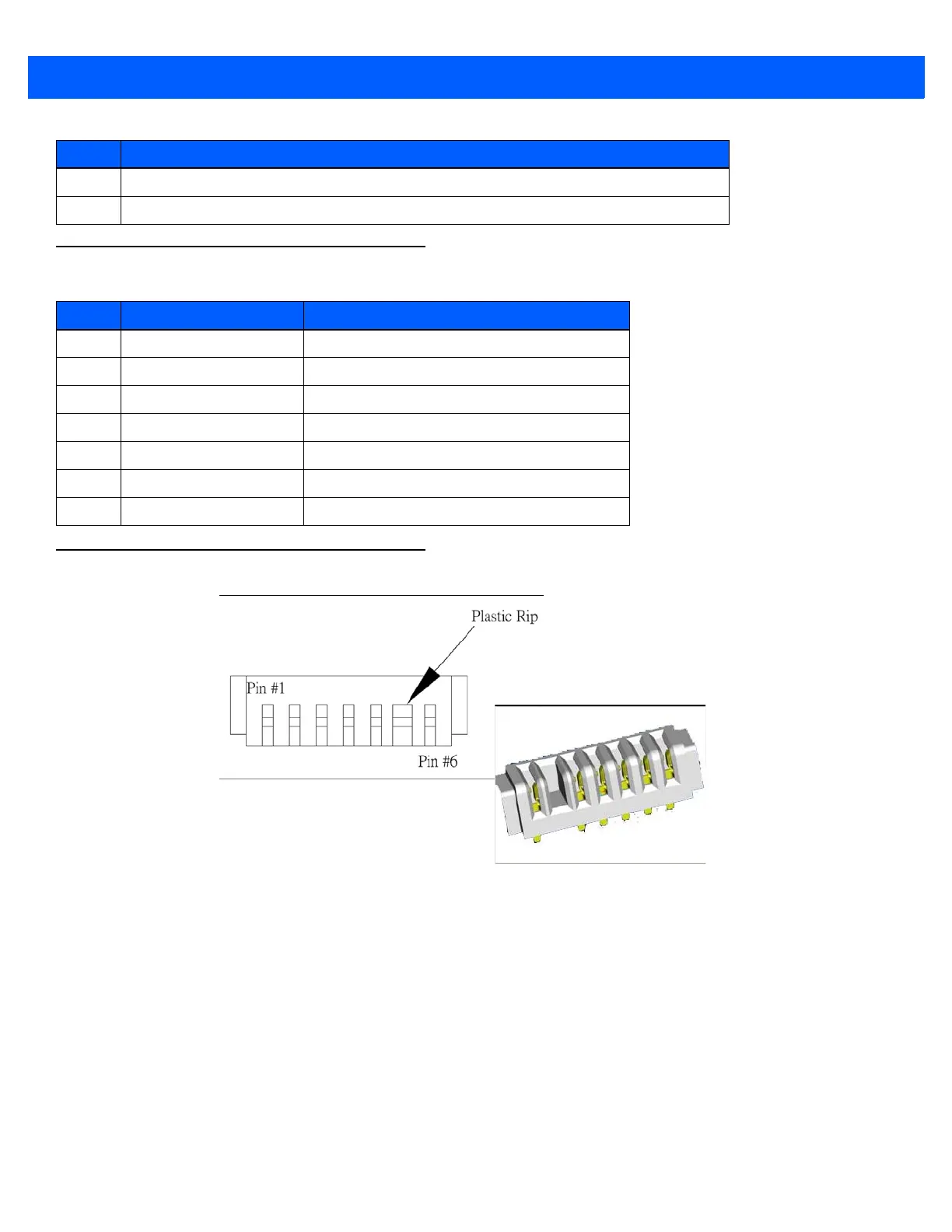

Battery Contact Pinout – WA3010
Positive Female Battery Connector
19 Ground
20 Ground
PIN # Signal Name Function
1 P- Power Pin for Battery Pack Negative
2 DQ Maxim DS2762 Data
3 TH (GND) Ground
4 P+ Power Pin for Battery Pack Positive
5 PS Power Switch Sensor
- Plastic Rip -
6 P- Power Pin for Battery Pack Negative
PIN # Signal Name
