Woson TANDA - Appendix 3 Piping and Circuit Diagram; Piping Diagram

Steam Sterilizer Operation Manual
TANDA Model REV-E Page of 43
40
Appendix 3 Piping and Circuit Diagram

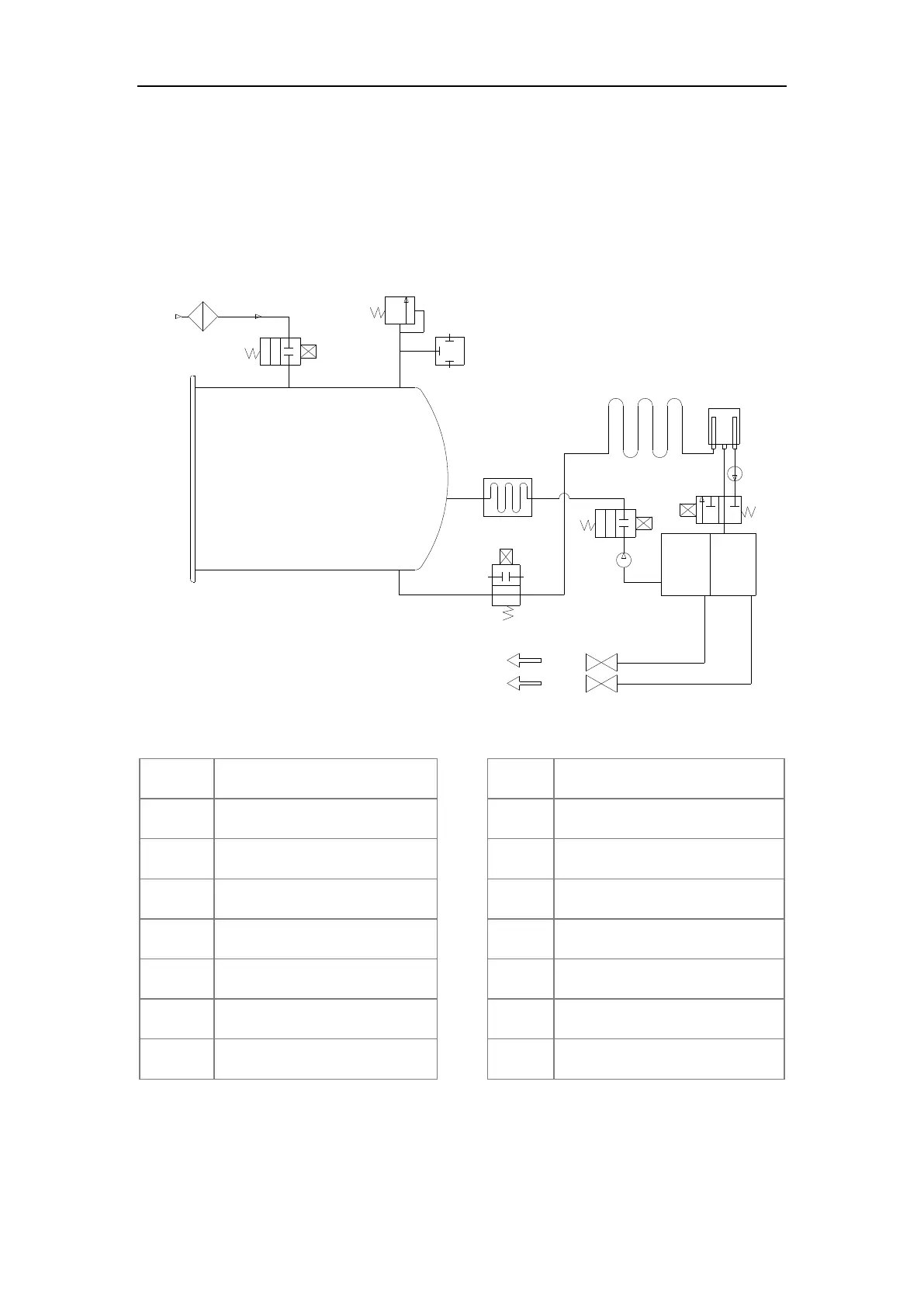

Piping Diagram
AF
Air Filter
SM
Steam Maker
UMT
The Used Water Tank
WP1
Main Water Pump
DWT
The Distilled Water Tank
VP
Vacuum Pump
EV1
Air Release Valve
CC
Condensate Collector
EV2
Water Supply Valve
RV
Relief Valve
EV3
Vacuum Valve
R1
Distilled Water Drain Valve
EV4
Air Return Valve
R2
Used Water Drain Valve
P1
Pressure Sensor
Ts1
Temperature Sensor
AF
EV4
RV
P1
EV1
EV2
EV3
VP
DWT
UWT
WP1
CC
SM
R2
R1
TS1
TS2
