Installing the Duplex Tray 1. Setting up the DocuColor 2006
Xerox DocuColor 2006 1-31
CAUTION
Ensure that the small connector and cable on the left-hand side of the Lower
Inverter are pulled back out of the way.

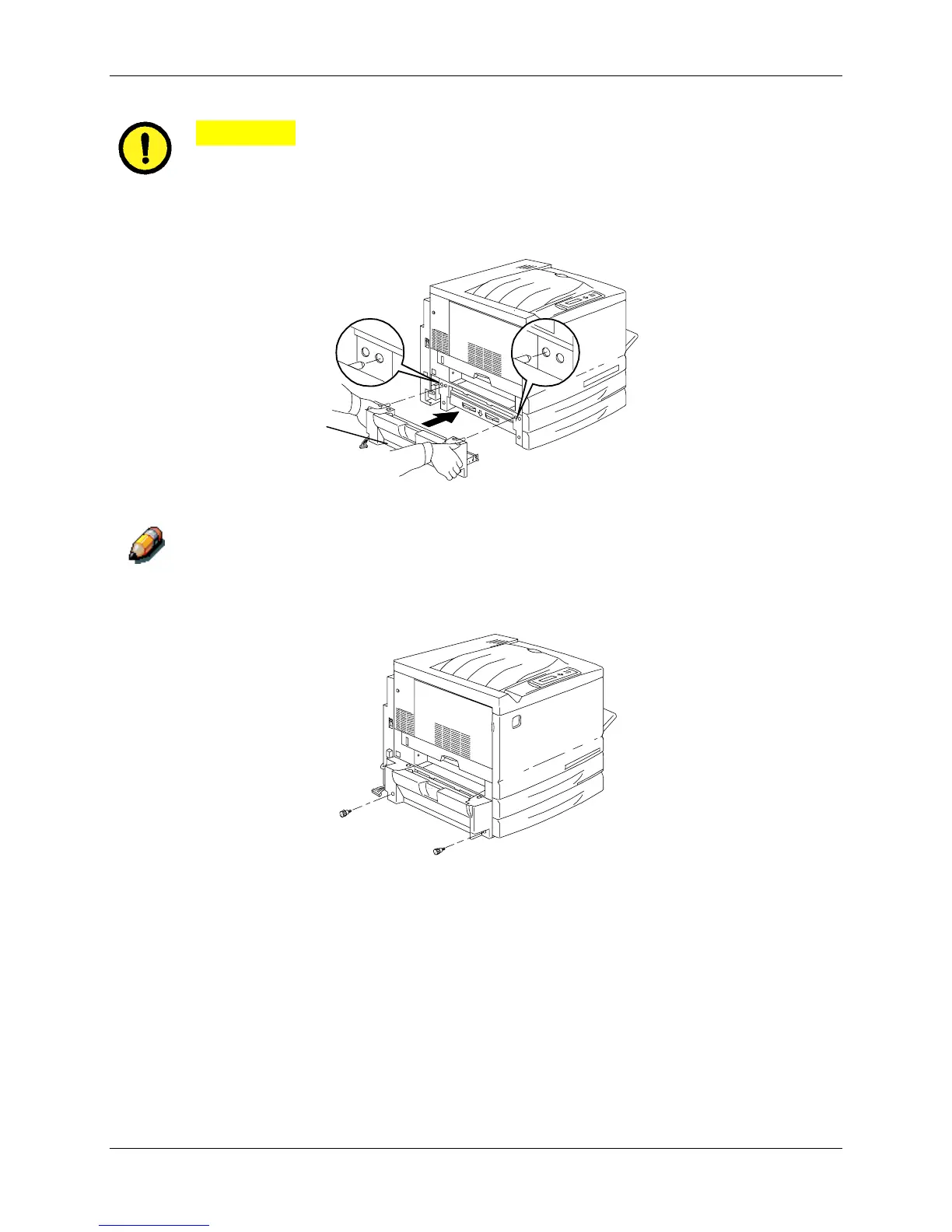

10. Install the Lower Inverter as shown below.
301057B-WO
301057b
The Lower Inverter does not install flush with the Printer covers.
a. Install the two thumbscrews from the contents of the box.
301058B-WO
301058a
SMALL
CONNECTOR
AND CABLE
To Next Page
