1. Setting up the DocuColor 2006 Installing the Duplex Tray
1-32 Xerox DocuColor 2006

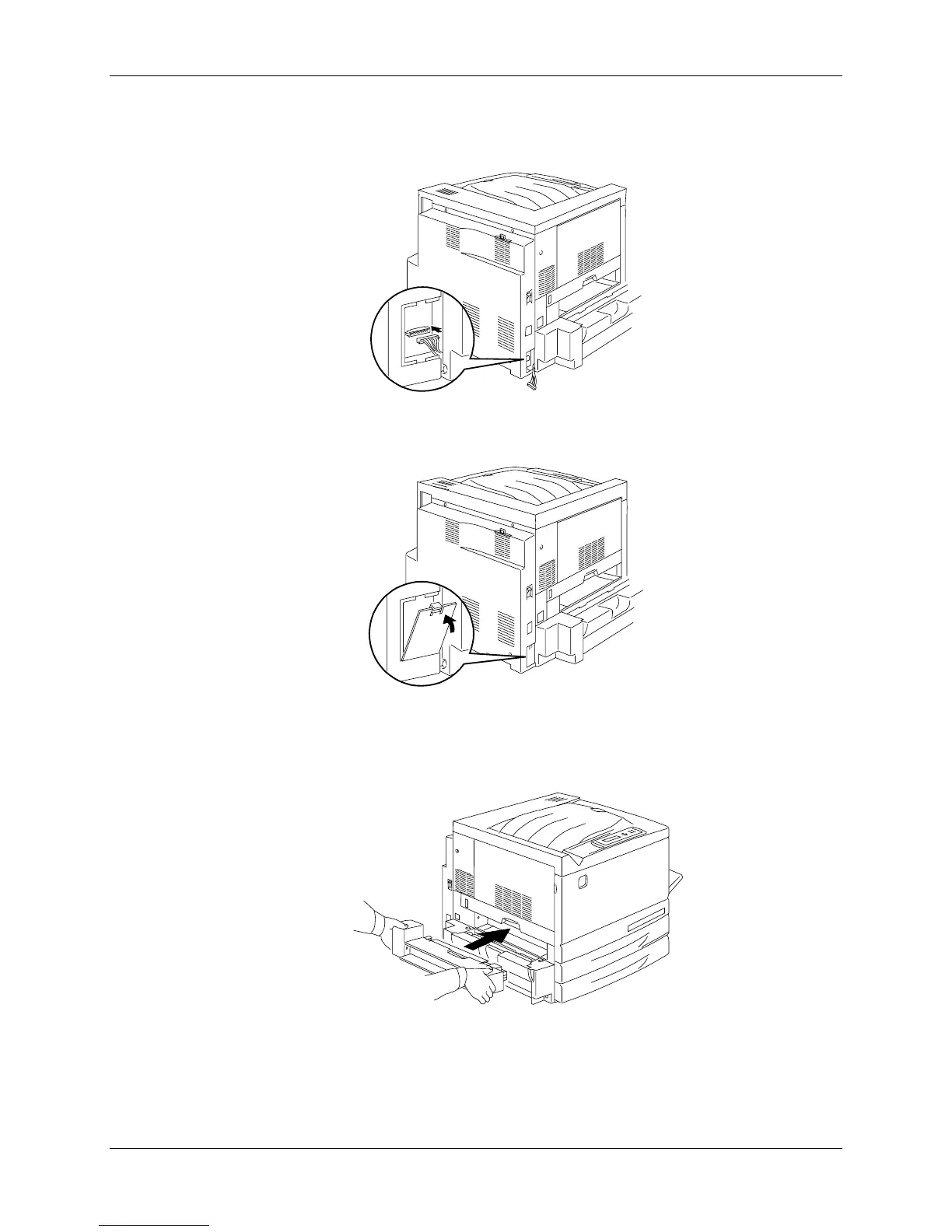

b. Connect the small connector from the Lower Inverter to the small
jack located at the rear of the left-hand side of the Printer.
301059A-WO
L
0
f. Reinstall the small Access Cover.
301060B-WO
L
0
11. Install the Upper Inverter:
a. Install the Upper Inverter into the Printer as shown.
301061B-WO
L
0
