Xerox DocuMate 3125 User Manual

Xerox DocuMate 3125
User’s Guide
177

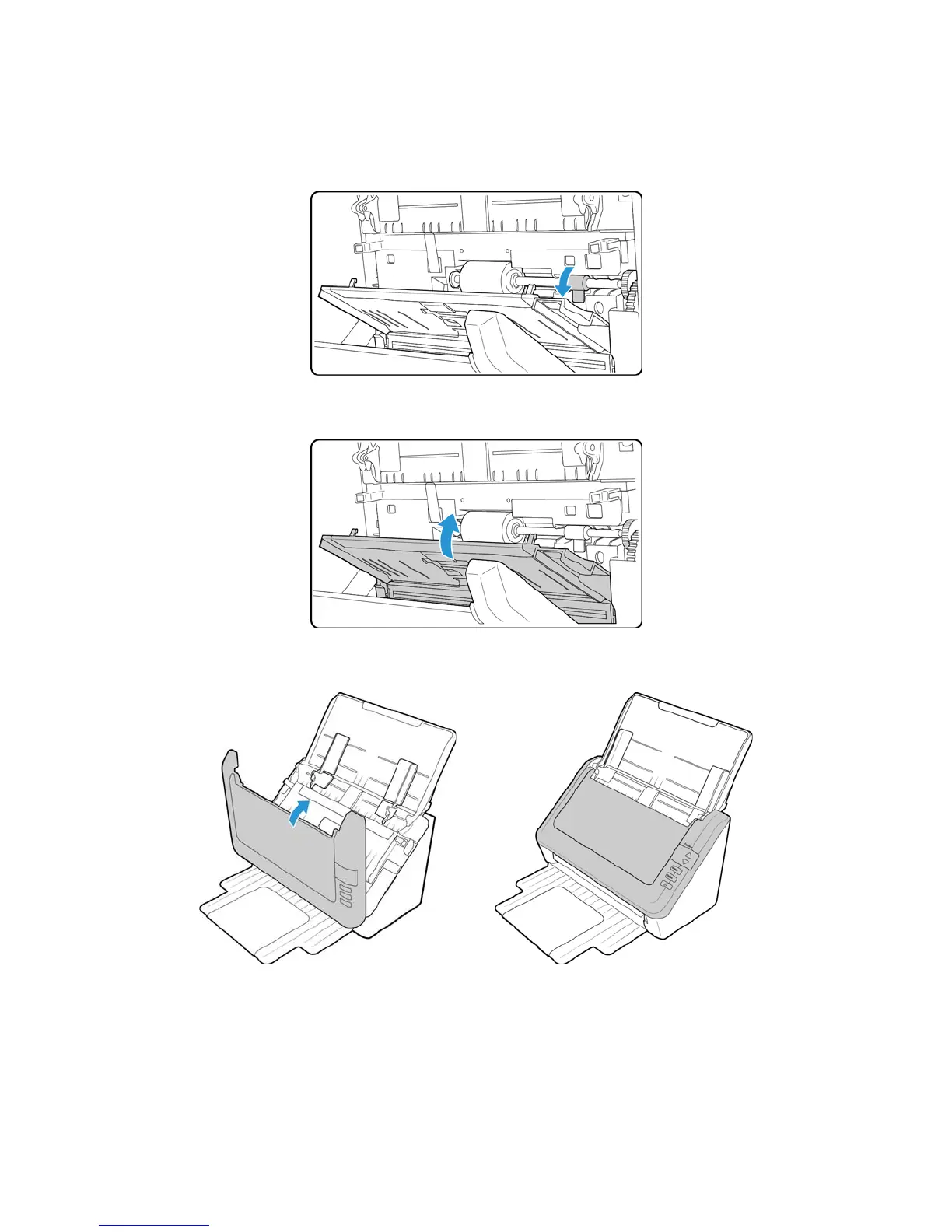

8. Rotate the lock tab into the scanner. Press down on the lock flange to lock the roller into the scanner.
The lock will “click” into place when it is secure. However, if it does not rotate easily into the housing, make sure
the flange is properly seated in its latch.
9. Lift the paper guide up to the back of the scanner and press gently on the paper guide until it snaps into place.
10. Close the scanner when you’re finished.

Xerox DocuMate 3125 Specifications

General

Grayscale levels	8
Maximum scan area (ADF)	216 x 965 mm
Minimum scan area (ADF)	51 x 74 mm
Cables included	AC, USB
Built-in display	No
USB port	Yes
USB version	2.0
