Xerox® Phaser® 3052/3260 Service Manual
REP 1.9
Repairs
Figure 3 Feed and Registration Clutch / Feeder PWB
6. Remove the Feed and Registration Clutch Drive Gears (Figure 4).

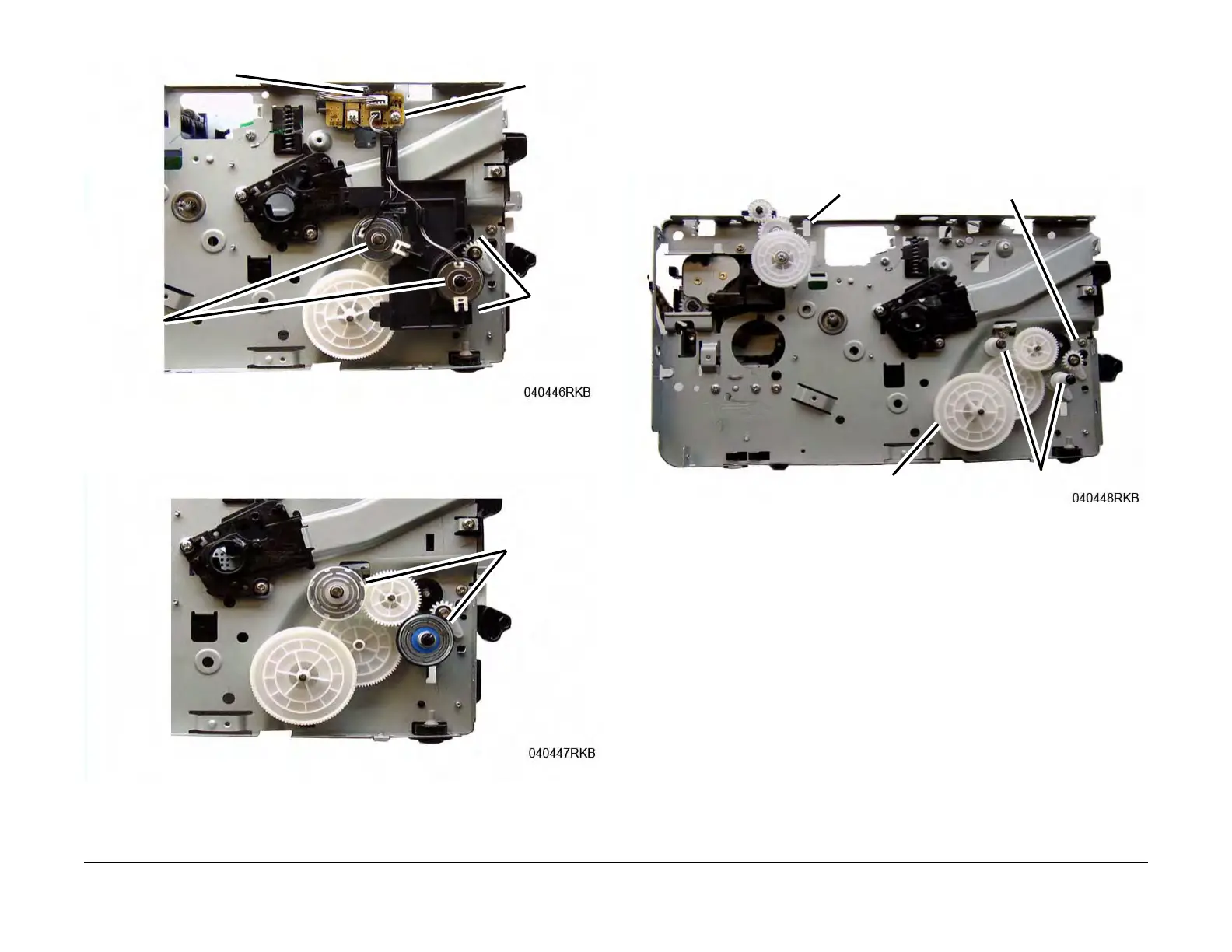

Figure 4 Feed and Registration Clutch Drive Gears
7. Remove the following (Figure 5):
Make note of the order that the Feed and Registration Drive Gears are remove in so they
can be re-installed correctly.
a. Feed and Registration Drive Gears, there is a Snap Ring on one gear.
b. Feed and Registration Clutch Bushings (2 Snap Rings).
c. Exit Drive Gears, (2 screws and a Latch).
Figure 5 Drive Gears and Bushings
8. Remove the following from the Left Frame (Figure 6):
a. Shaft Bushings (2), release the latches.
b. LSU Support (2 screws).
c. Paper Path Module (5 screws).
Screw
CN3
Snap Rings
& Washers
Latches
Clutch Drive
Gears
Snap Ring
Exit Drive Gears
Feed & Registration Drive Gears
Clutch Bushings
