4-15
Xerox® Phaser® 3052/3260 Service Manual
REP 1.9
Repairs

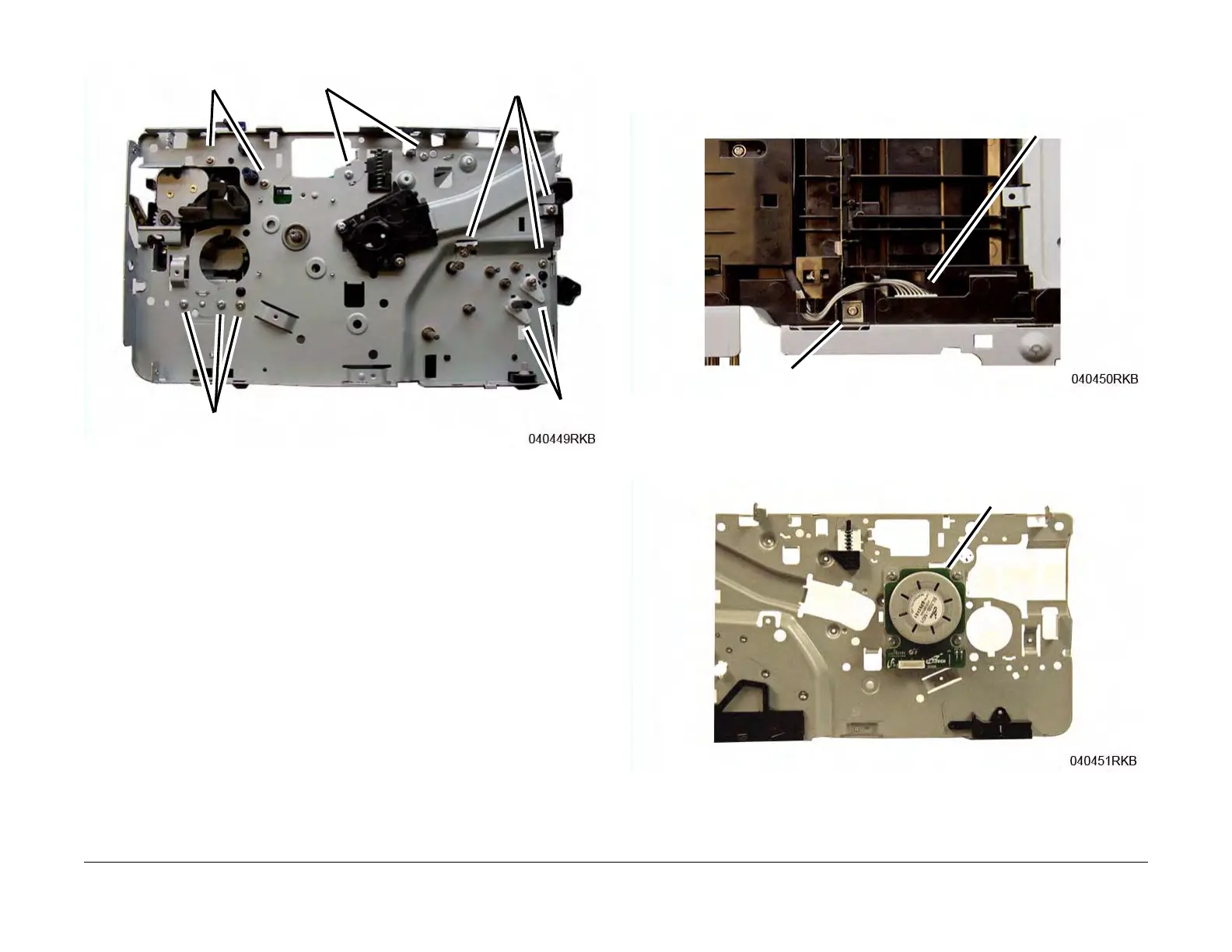

Figure 6 Frame Screw Removal
9. On the bottom of the Printer (Figure 7):
a. Disconnect the Printer Drive Motor Connector.
b. Remove the screw (1) and the Ground Clip.
Figure 7 Drive Motor Connector & Ground Clip (Bottom View)
10. Remove the Left Frame (3 screws) (Figure 6).
11. Remove the Drive Motor (4 screws) (Figure 8).
Figure 8 Drive Motor
Step 8b
Step 8c
Step 8c
Step 10
Step 8a
Connector
Screw
Drive Motor

Xerox Phaser 3260 Specifications

General

Print Technology	Laser
Print Speed	Up to 29 ppm
First Page Out	As fast as 8.5 seconds
Duplex Printing	Automatic
Monthly Duty Cycle	Up to 30, 000 pages
Output Capacity	150 sheets
Processor Speed	600 MHz
Memory	128 MB
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Input Capacity	250 sheets
Media Sizes Supported	A4, A5, A6, B5, Executive, Folio, Legal, Letter, Oficio
PDL	PCL 6, PCL 5e, PostScript 3
