Printer Tour
Phaser® 3500 Laser Printer
3
Control Panel Layout
The control panel has three components:
Multi-colored Light Emitting Diode (LED) light
Alphanumeric display
Six-button cluster.
The alphanumeric display provides status messages and control panel menus.
Error and Warning Messages
When there is a problem with the printer, the control panel LED (2) blinks orange for an error
and a warning. An error or warning message is displayed in the Alphanumeric Display (1).
Menu Map
The “Menu Map” is a visual representation of the control panel settings and information
pages.
To print the “Menu Map”:
1. On the control panel, press the Menu button, then press the OK button to select
Information.
2. Press the OK button to print the Menu Map.

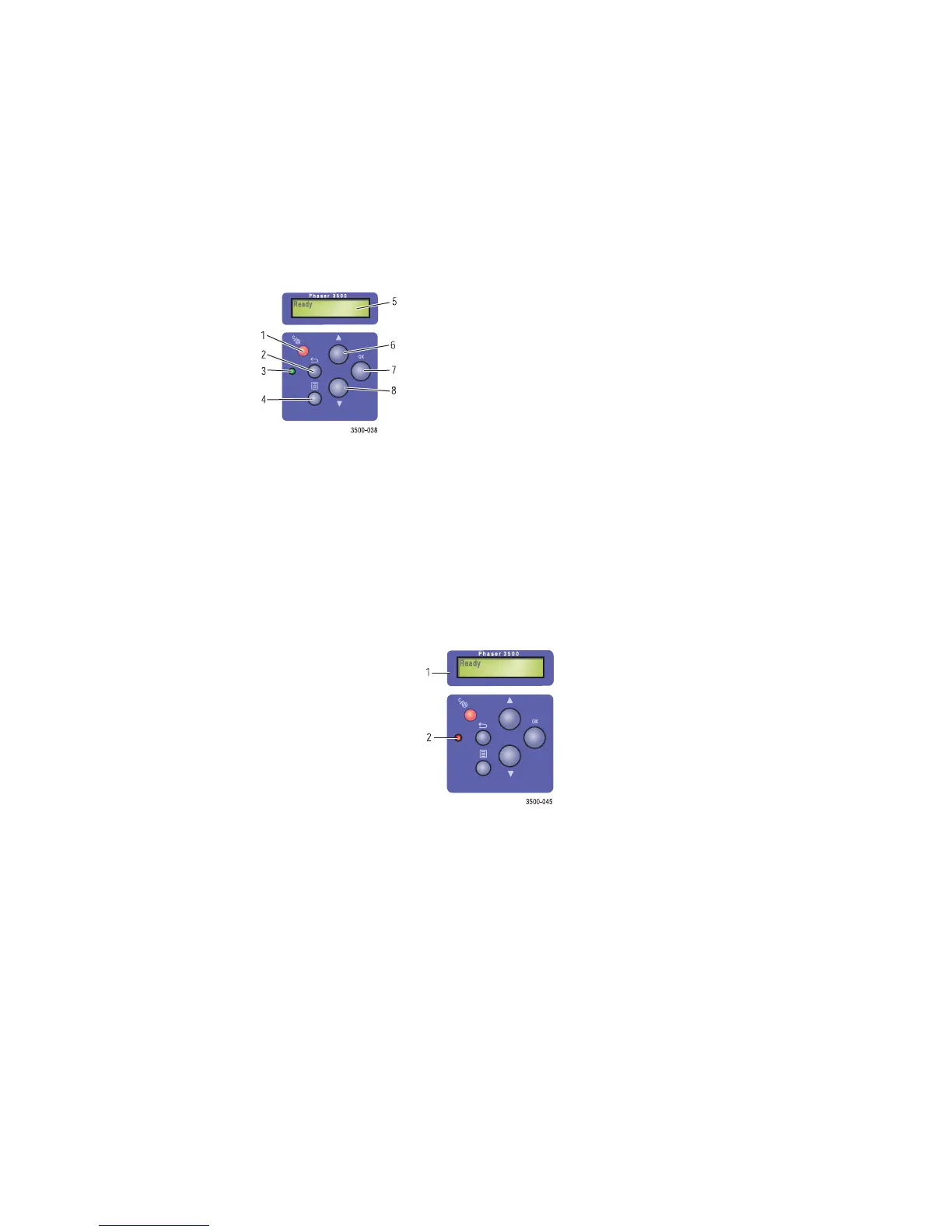

1. Cancel button
2. Return button
3. On-line/Data/Error LED
4. Menu button
5. Status/Error Messages and Menus
6. Up Arrow button
7. OK button
8. Down Arrow button
