Cleaning the Printer
Phaser® 4510 Laser Printer
5-3

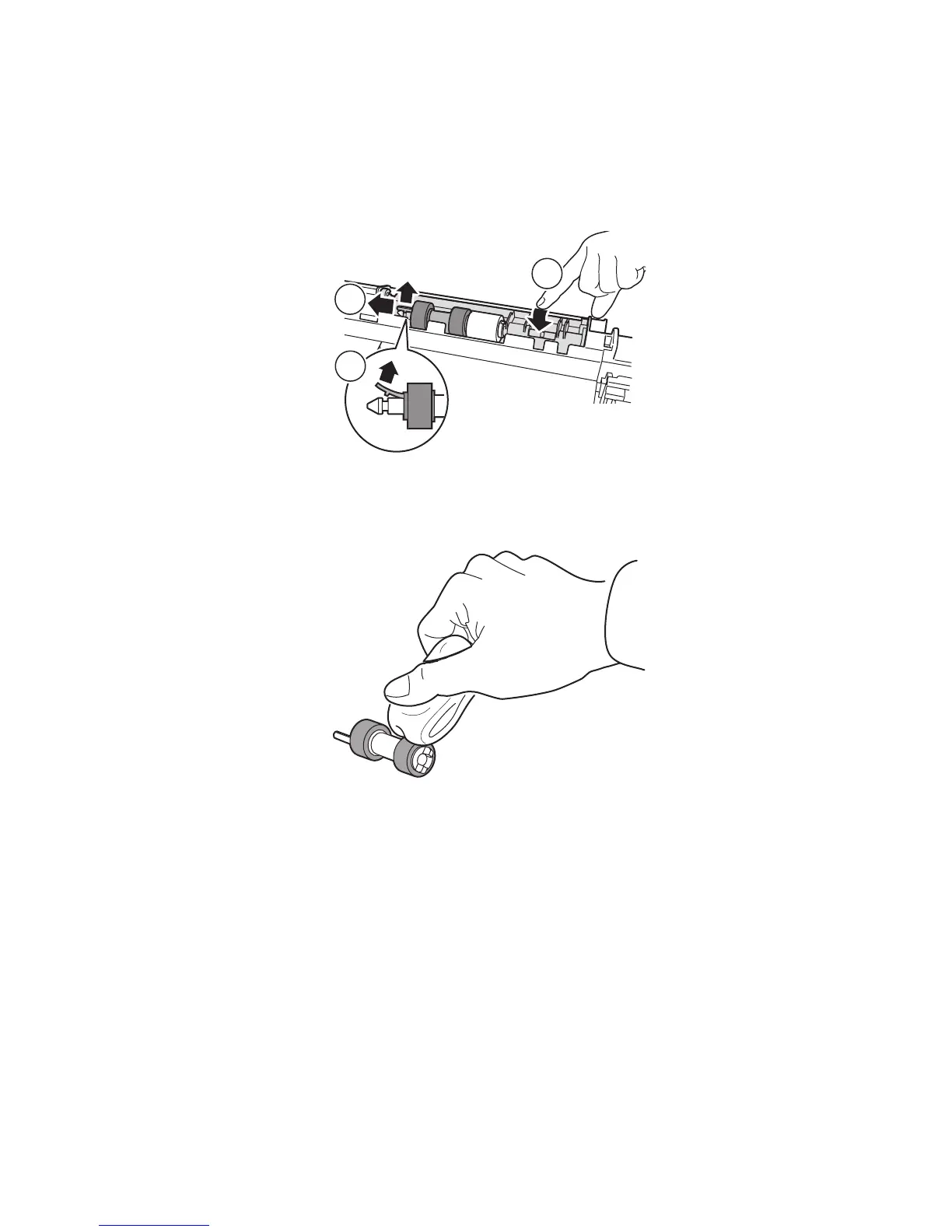

2. Remove the feed roll from the paper tray shaft.
a. Push down on the shaft of the feed roll (1), and then widen the tab of the feed roll to
loosen it (2).
b. Remove the feed roll from the paper tray shaft (3).
3. Clean the rollers with a damp cloth.
1
3
2
4510-116
4510-117
