Printing on Specialty Media
Phaser® 4510 Laser Printer
3-45
7. If you selected
New Custom Size, select the custom width and height:
a. For
Short Edge, use the Up Arrow and Down Arrow buttons to specify the short
edge, and then press the OK button.
b. For
Long Edge, use the Up Arrow and Down Arrow buttons to specify the long
edge, and then press the OK button.
c. If the control panel prompts you for the
Paper Orientation, use the Up Arrow and
Down Arrow buttons to select the direction you are feeding the paper into the tray.
Note: When you define a new custom size, it is stored in the printer so it can be used
again. Up to five custom sizes can be stored in the printer. If you define a new custom size
after five custom sizes have been stored, the new custom size replaces the least recently
used.
8. Either use the custom size as the document size in the application or select the appropriate
tray as the paper source.
Creating Custom Paper Types
Custom paper types are created in CentreWare IS and appear in the printer driver, control
panel, and CentreWare IS. Use this feature to create your own custom paper type with specific
settings that you can reuse for routine print jobs, for example, monthly reports.
To create custom paper types:
1. Launch your web browser.
2. Enter the printer’s IP address in the browser’s Address field (http://xxx.xxx.xxx.xxx).
3. Click Properties.
4. Select the General folder on the left navigation panel.
5. Select Custom Paper Types.
6. Enter or modify the settings, and then click Save Changes at the bottom of the page.
Note: For more information about creating custom paper types, click the Help button on the
Properties tab to view the online help.

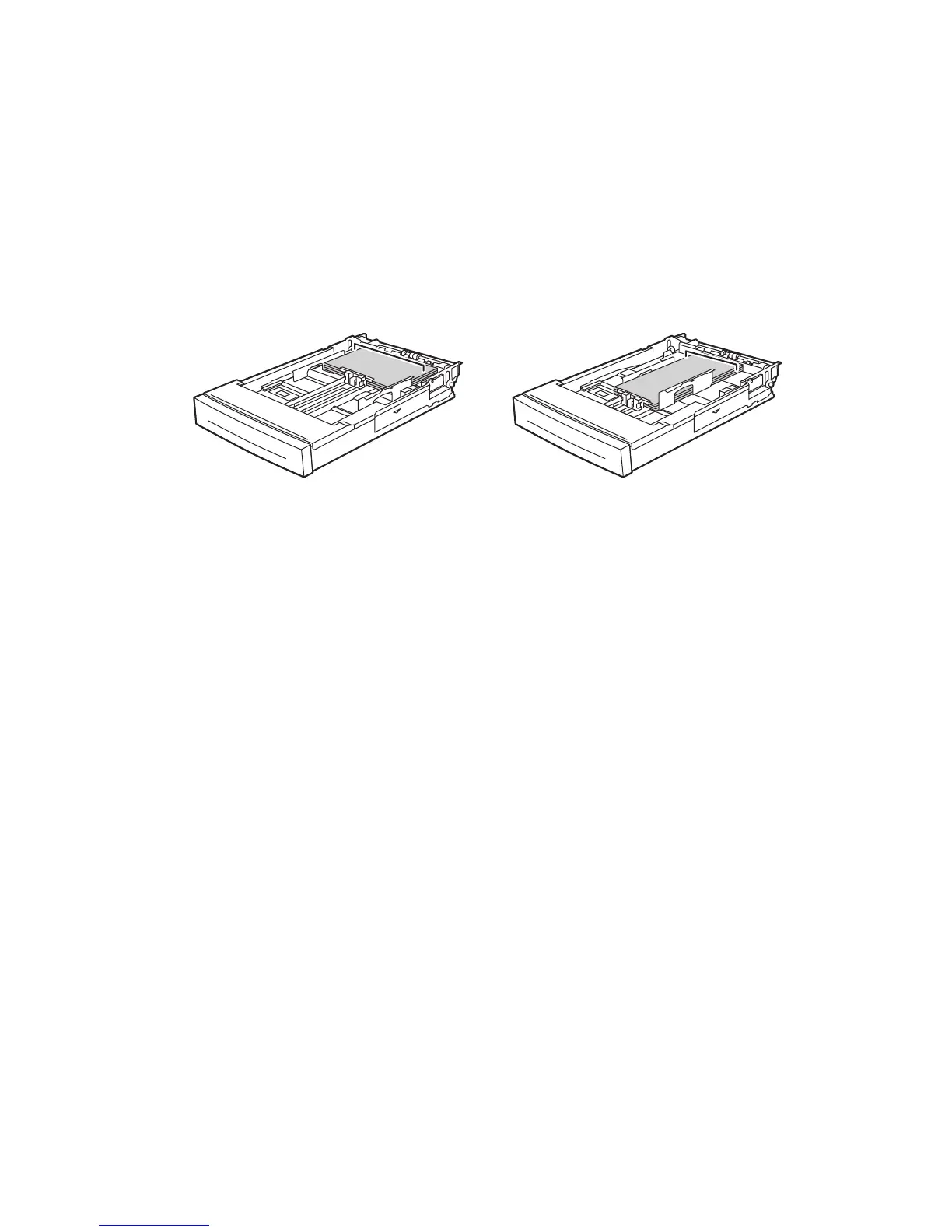

Long-Edge Feed Short-Edge Feed
4510-114 4510-113

Xerox Phaser 4510 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	43 ppm
Maximum internal memory	512 MB
Sound power level (standby)	28 dB
Sound pressure level (printing)	56.1 dB
Total input capacity	1350 sheets
Total output capacity	500 sheets
Maximum input capacity	1800 sheets
Maximum number of input trays	2
Multi-Purpose tray input capacity	150 sheets
I/O ports	Parallel (IEEE 1284), USB 2.0
Power supply type	220 V
Weight (imperial)	45.2 lbs
Power consumption (active)	675 W
Acoustic power emissions (active, print, copy or scan)	71.9 dB
Envelopes sizes	B5, C5, DL
Custom media width	76 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	127 - 356 mm
Paper tray media types	Bond paper, Coated paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
Paper tray media weight	64 - 216 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), index card, Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Wi-Fi	No
Supported network protocols (IPv4)	USB/Parallel, 10/100 Base-TX Ethernet
PCL fonts	81
Printer fonts	PCL, PostScript
Maximum duty cycle	250000 pages per month
Recommended duty cycle	25000 pages per month
Number of PostScript fonts	139
Number of print cartridges	1
Display	LCD
Certification	EMC Directive 89/336/EEC, FCC Part 15, Class B, Low Voltage Directive 73/23/EEC, RoHS 2002/95/EC
Operating temperature (T-T)	41 - 95 °F
Operating relative humidity (H-H)	15 - 85 %
Power consumption (standby)	80 W
Power consumption (PowerSave)	18 W
Package weight	49896 g
Standard interfaces	Ethernet, Parallel, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Dimensions (WxDxH)	630 x 630 x 1194 mm
