Xerox Phaser 4510 - Jam at the Exit and Jam at the Rear (with Duplex Unit)

Clearing Paper Jams
Phaser® 4510 Laser Printer
6-9
Jam at the Exit and Jam at the Rear (with Duplex Unit)
There is a jam at the exit or at the rear cover. On the control panel of the printer, press the
Help (?) button to view information about the control panel message.
To clear the jam:

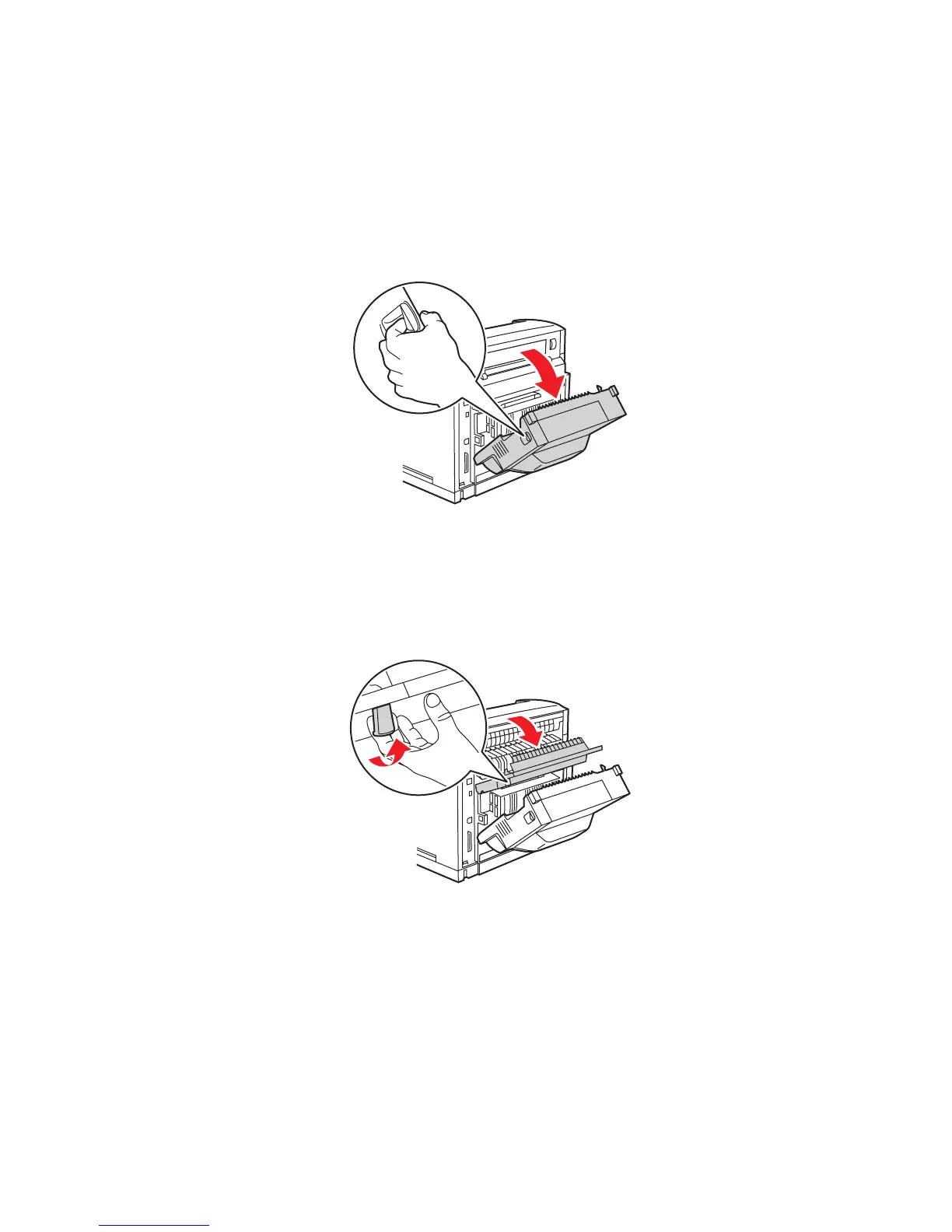

1. Open the duplex unit cover.
2. Open the rear cover.
Warning: Be careful, some components inside the rear cover may be hot.
4510-018
4510-023
