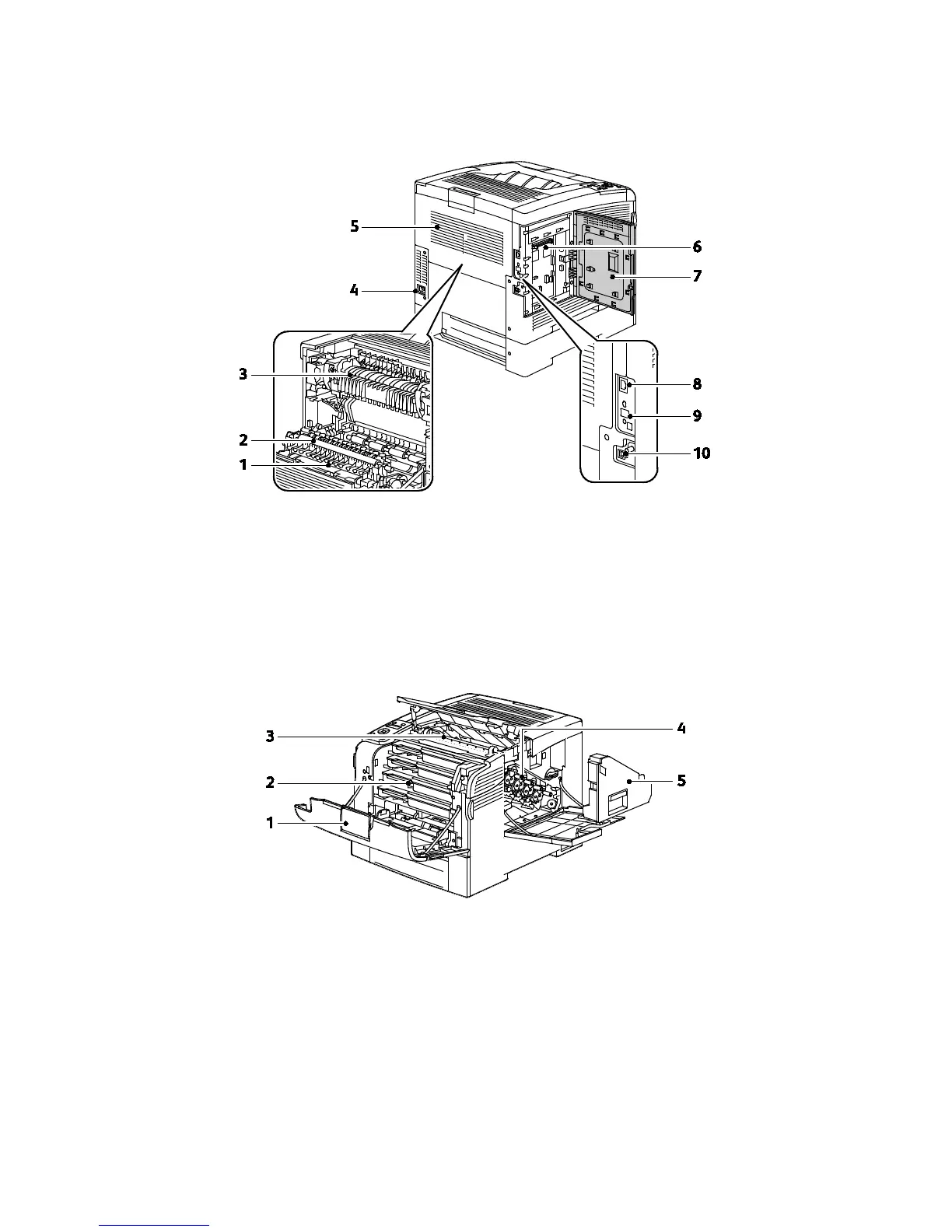

Rear View
1. Duplex Unit
2. Transfer Roller
3. Fuser
4. Power Connector
5. Rear Cover
6. Control Board
7. Left Side Door
8. Ethernet Connection
9. Wireless Network Adapter Port
10. USB Port
Internal Parts
1. Front Cover
2. Toner Cartridges
3. Transfer Belt
4. Imaging Unit
5. Waste Cartridge
Control Panel
The control panel consists of a display, indicator lights, and buttons you press to control the functions
available on the printer. The control panel:
