LLooaaddiinngg PPaappeerr iinn TTrraayy 11 aanndd TTrraayyss 22––55
You can adjust the length of the paper tray to accommodate A4 (210 x 297 mm), Letter (8.5 x 11 in.),
and Legal (8.5 x 14 in.) paper sizes. You can also load label sheets in Tray 1.

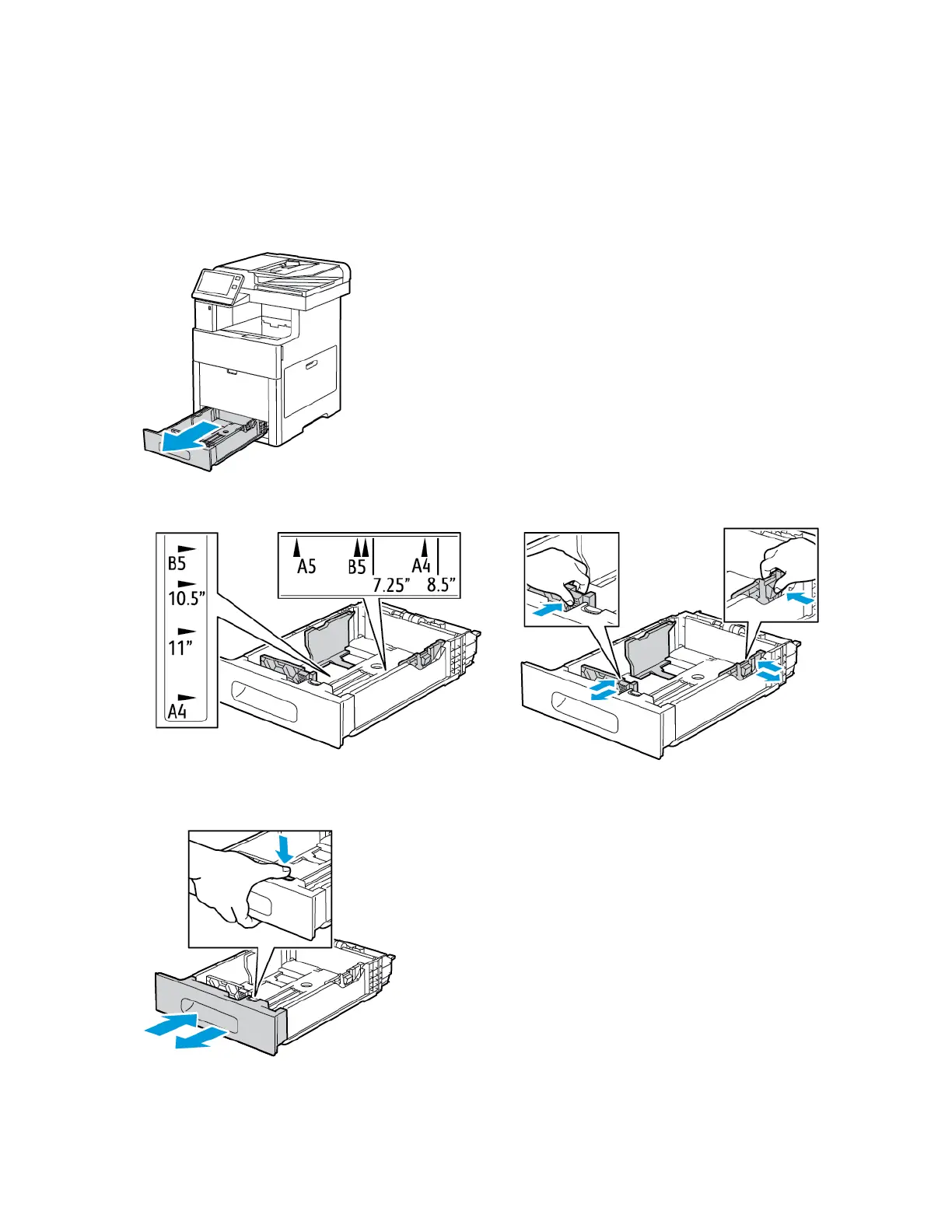

1. To remove the tray from the printer, pull out the tray until it stops. Lift the front of the tray slightly
and then pull out the tray completely.
2. For paper sizes other than Legal, adjust the paper length and width guides as illustrated.
3. For Legal-size paper, to extend the front of the tray, press the green release latch, then pull the
tray out.
160
Xerox
®
VersaLink
®
C505 Color Multifunction Printer
User Guide
Paper and Media
