d. To dedicate the tray for a paper size, type, or color, touch Tray Mode, then touch Dedicated.
• To select a paper size, touch the current size setting, then from the list, select a size.
• To select a paper type, touch the current paper type, then from the list, select a paper type.
• To select a paper color, touch the current paper color, then from the list, select a paper
color.
e. To save the settings, touch OK.
f. To return to the Home screen, press the Home button.
LLooaaddiinngg PPaappeerr iinn tthhee HHiigghh CCaappaacciittyy FFeeeeddeerr ((HHCCFF))
The High Capacity Feeder (HCF) tray accommodates 8.5 x 11 in. / A4 paper only and is loaded in the
short-edge feed (SEF) direction.

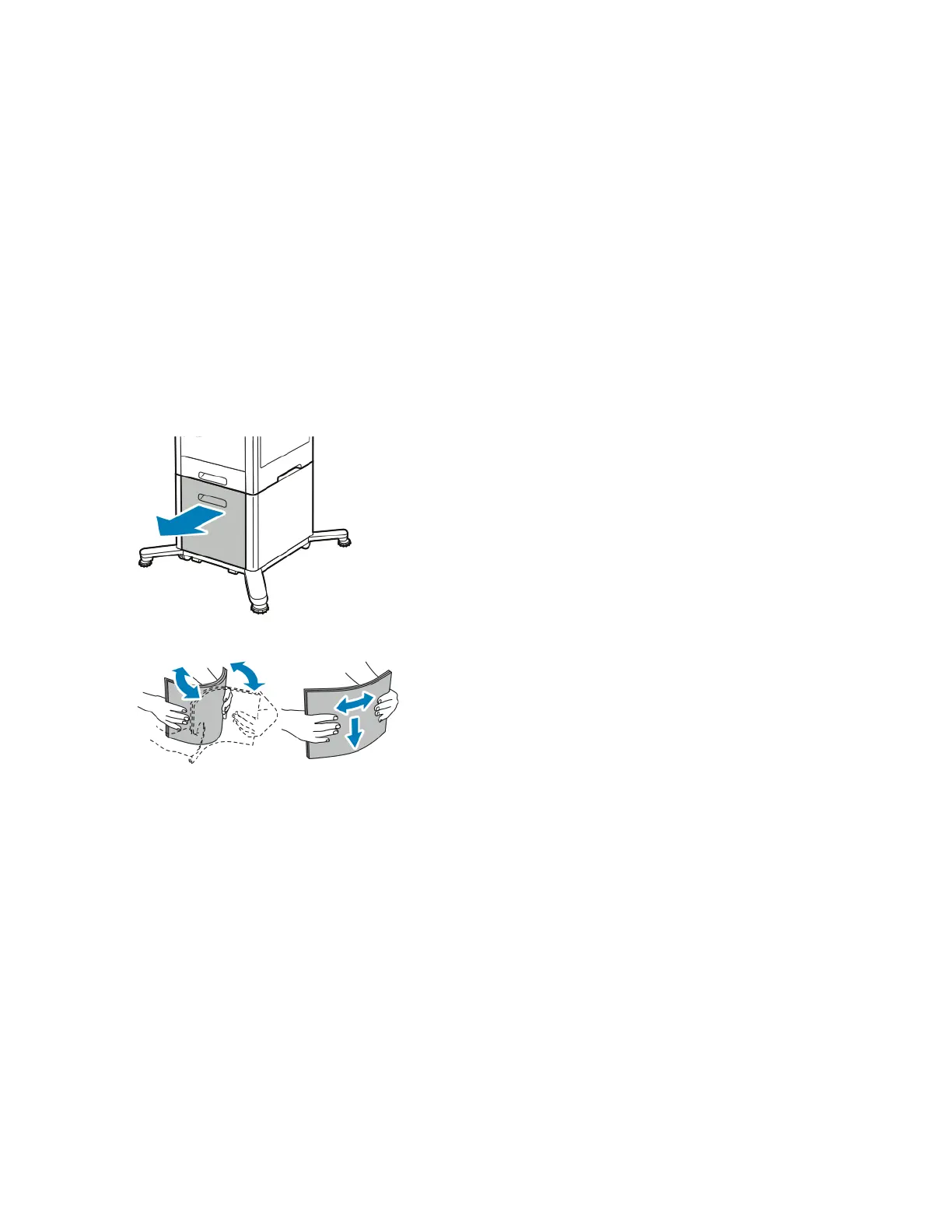

1. Pull out the tray slowly until it stops.
2. Flex the sheets back and forth and fan the sheets before loading them into the tray.
Xerox
®
VersaLink
®
C505 Color Multifunction Printer
User Guide
163
Paper and Media
