Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
PL 3.1
Parts Lists

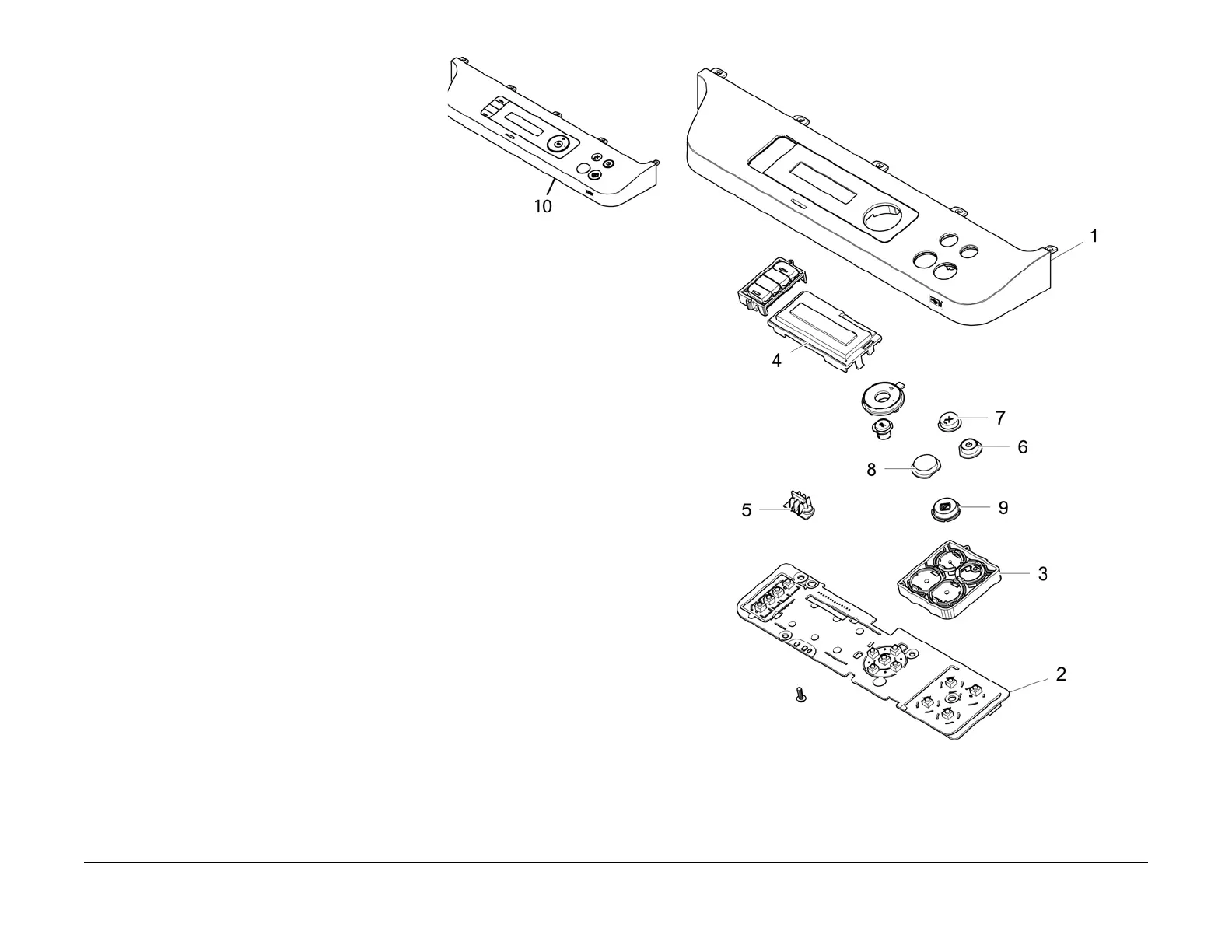

PL 3.1 Control Panel Assembly
Item Part Description
1 – Cover
2 140N63724 Control Panel PWB
3 – Key Holder Cover
4 – LCD Cover
5 – LED Status Indicator
6– Power Key
7 – Stop Key
8 – Power Saver Key
9– Start Key
10 140N63732 Control Panel Assembly
