Xerox WorkCentre 3025BI Service Manual

June 2014
5-13
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
PL 5.3
Parts Lists

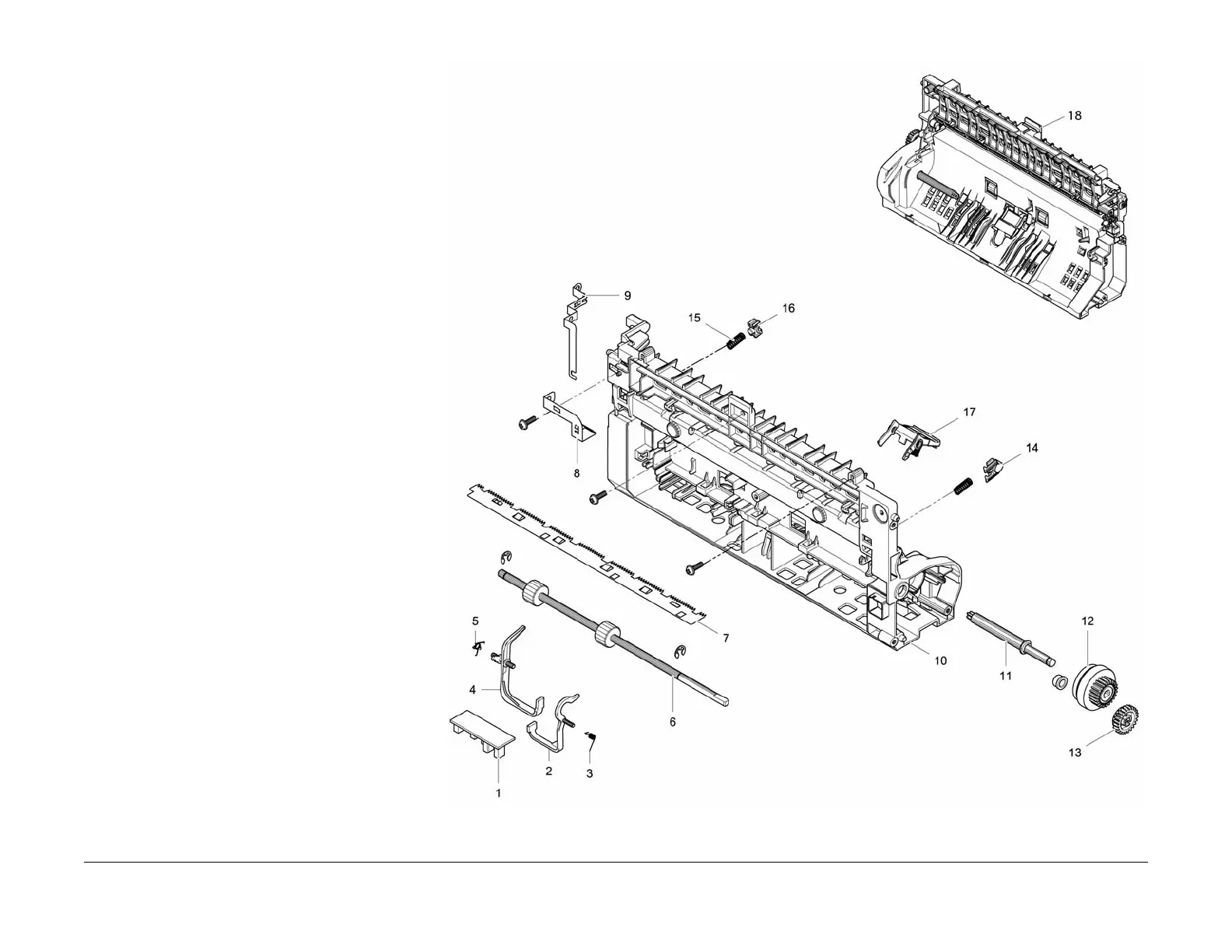

PL 5.3 Frame Path
Item Part Description
1 130N01759 Paper Feed Sensor PWB
2 120N00546 Feed Sensor Actuator
3– Spring
4 120N00547 Width Sensor Actuator
5– Spring
6 022N02798 Paper Drive Roll
7– Plate
8 – Ground Clip
9 – Ground Clip
10 – Paper Path Guide
11 – Feed Roll Shaft
12 121N01246 Feed Clutch
13 007N01801 Feed Gear
14 – Left Bushing
15 – Spring
16 – Right Bushing
17 001N00547 Retard Pad
18 – Path Frame

Xerox WorkCentre 3025BI Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Memory	128 MB
Duplex Printing	Manual
First Page Out	As fast as 8.5 seconds
Paper Input Capacity	150 sheets
Paper Output Capacity	100 sheets
Paper Capacity	150 sheets
Processor Speed	600 MHz
Dimensions	406 x 360 x 257 mm
Weight	7.5 kg
Scan Resolution	600 x 600 dpi
Maximum Document Size	216 x 356 mm
Connectivity	USB, Wi-Fi
Print Resolution	Up to 1200 x 1200 dpi enhanced image quality
Duty Cycle	Up to 15, 000 pages
