Xerox WorkCentre 3025BI

June 2014
5-15
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
PL 5.5
Parts Lists

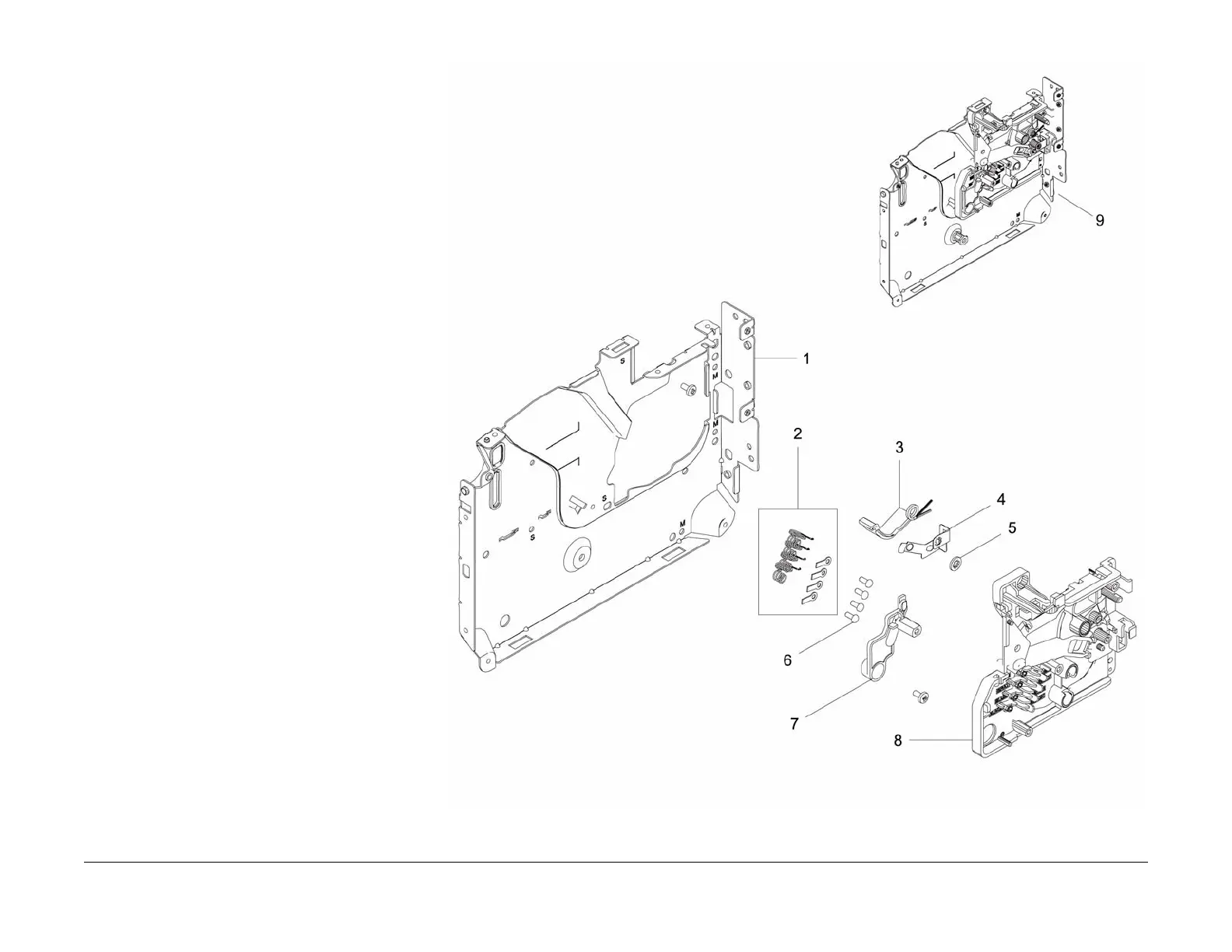

PL 5.5 Right Main Frame
Item Part Description
1 – Right Frame
2 – CRUM Contacts
3– Spring
4 – Ground Clip
5 – Washer
6– Screw
7 – CRUM Cover
8 – Print Cartridge Guide
9 – Main Right Frame Assembly
