Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
PL 5.6
Parts Lists

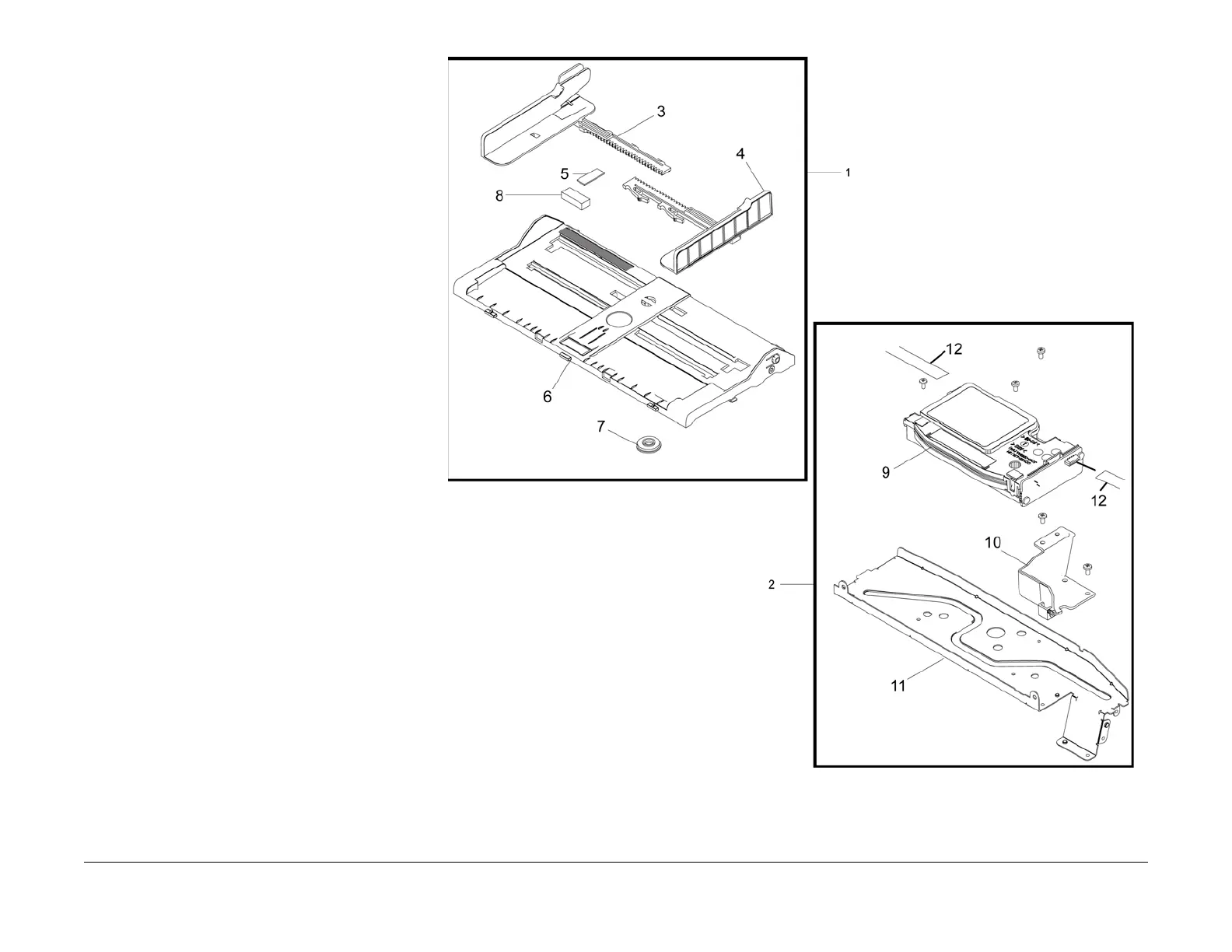

PL 5.6 Paper Tray and LSU Frame
Item Part Description
1 001N00549 Paper Tray
2 – LSU Frame
3 – Right Guide
4 – Left Guide
5 – Rubber Friction Pad
6 – Bottom Plate
7 – Pinion Gear
8 – Sponge Damper
9 062N00293 LSU
10 – Motor Cover
11 – LSU Frame
12 117N01971 LSU Flat Cable
