Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
PL 5.4
Parts Lists

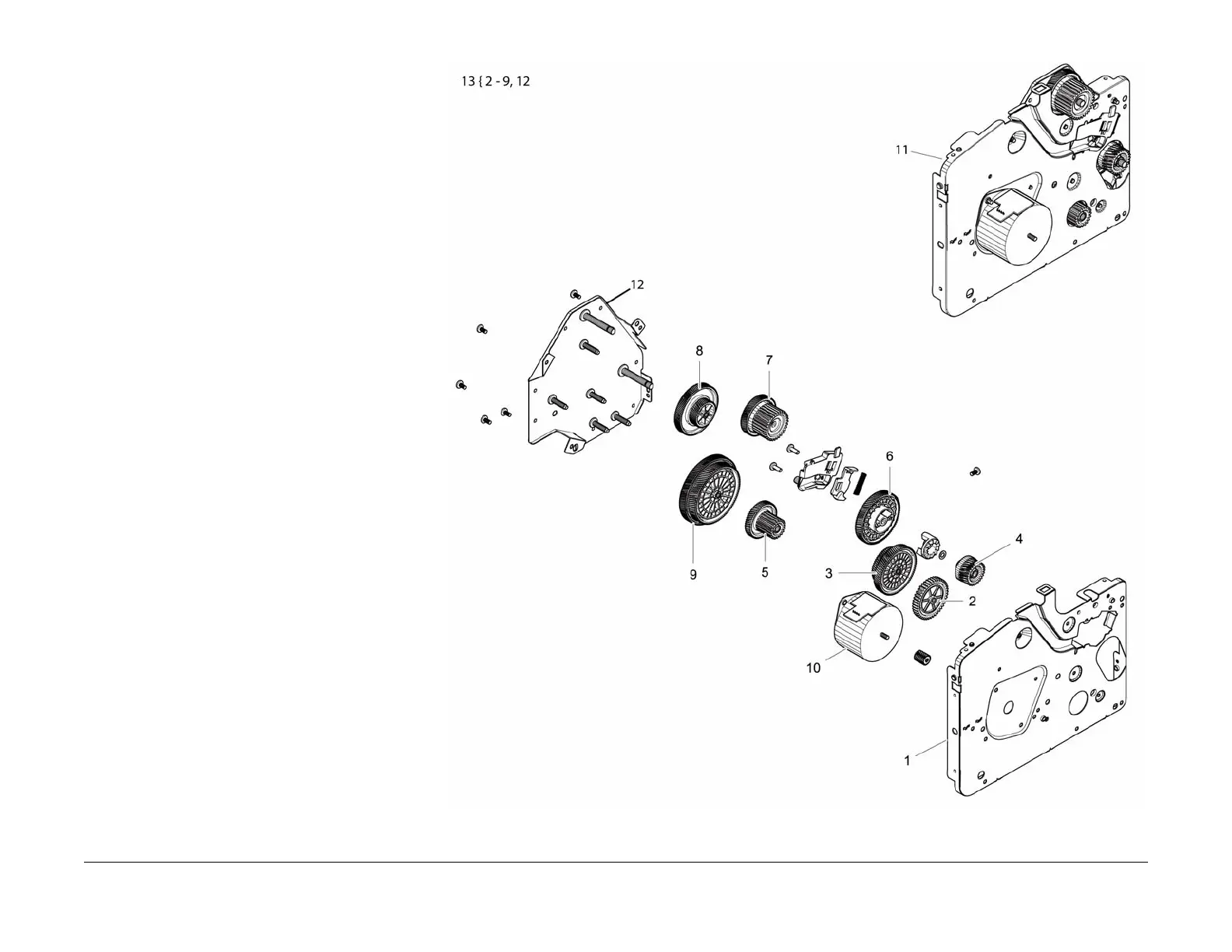

PL 5.4 Left Main Frame
Item Part Description
1 – Left Frame
2 – Feed Drive Gear
3 – RDCN OPC Gear
4 – Drive Out Gear
5 – Feed Gear
6 – Drive In Gear
7 – Fuser Drive Gear
8 – RDCN Fuser Gear
9 – RDCN A Gear
10 – Drive Motor
11 – Left Main Frame
12 – Drive Mounting Plate
13 001N00548 Drive Gear Assembly
