Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
PL 4.2
Parts Lists

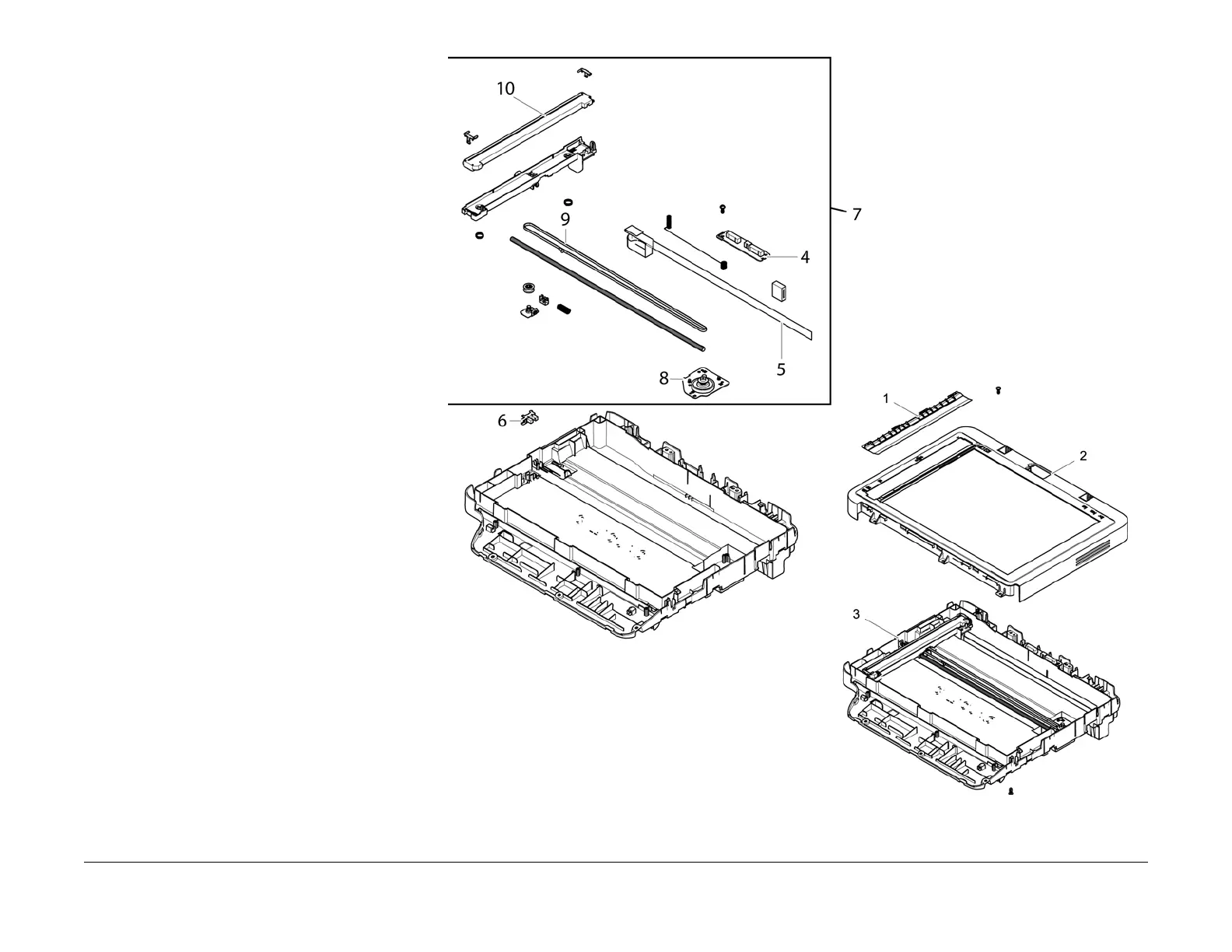

PL 4.2 Scanner
Item Part Description
1 Paper Guide
2 Upper Scanner Frame
3 Lower Scanner Frame
4 Scanner PWB
5 Flat Cable
6 Sensor
7 Platen Scanner
8 Platen Drive
9 Drive Belt
10 Contact Image Sensor
