Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.1
Repairs
REP 1.1 Left and Right Side Covers
Parts List on PL 1.1 and PL 1.2
Removal
1. Switch Off the Printer and disconnect the Power Cord.
2. Remove the Front Cover (REP 1.2).
3. Remove the screw (1) for the Left or Right Side Cover at the rear of the printer (Figure 1).

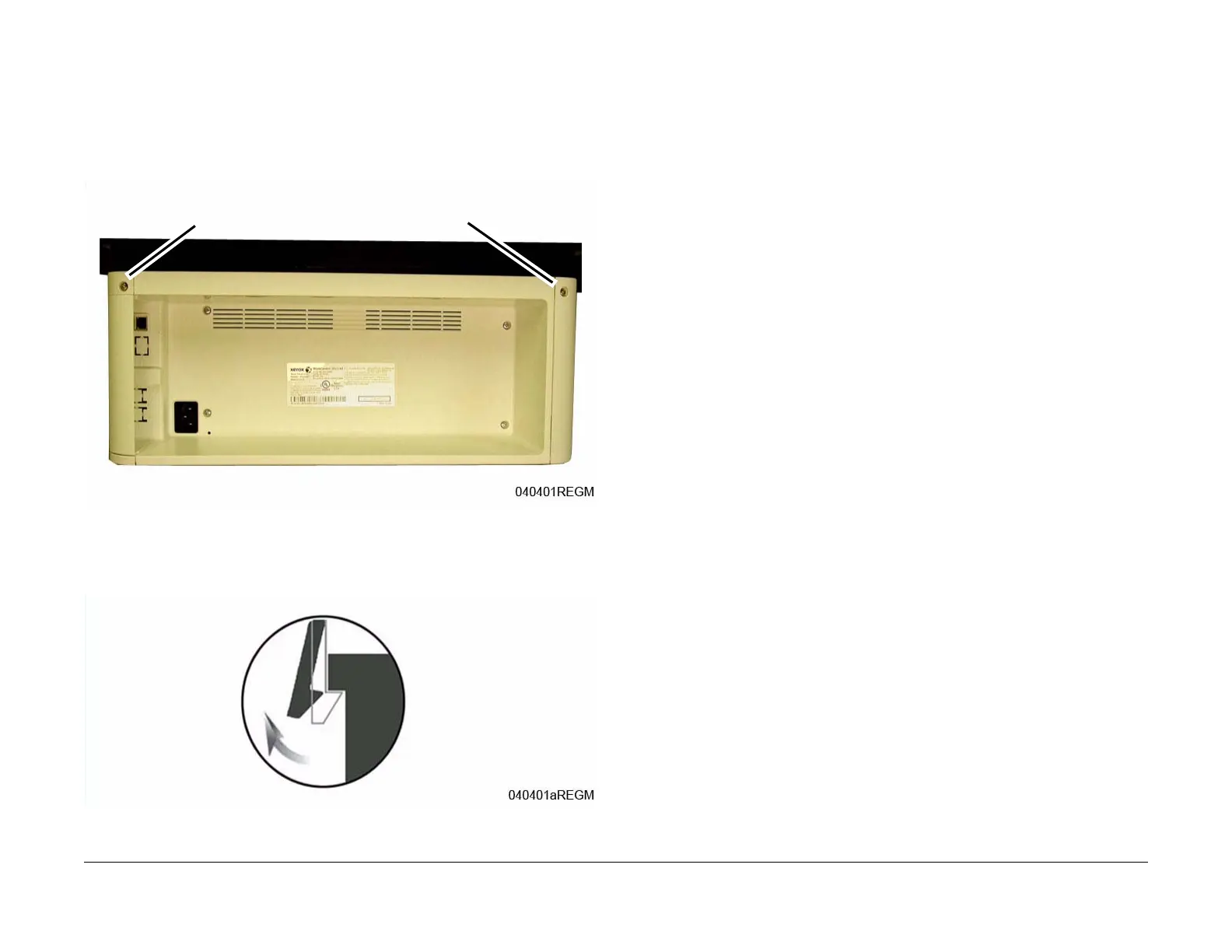

Figure 1 Left and Right Cover Screws (Rear View)
4. Remove the Side Covers being careful not to damage the Fastening Hooks (Figure 2):
a. Pull the bottom of the cover away from the printer to remove it.
Figure 2 Fastening Hooks
Replacement
Install the components in the reverse of removal.
Right Cover Screw
Left Cover Screw

Xerox WorkCentre 3025BI Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Memory	128 MB
Duplex Printing	Manual
First Page Out	As fast as 8.5 seconds
Paper Input Capacity	150 sheets
Paper Output Capacity	100 sheets
Paper Capacity	150 sheets
Processor Speed	600 MHz
Dimensions	406 x 360 x 257 mm
Weight	7.5 kg
Scan Resolution	600 x 600 dpi
Maximum Document Size	216 x 356 mm
Connectivity	USB, Wi-Fi
Print Resolution	Up to 1200 x 1200 dpi enhanced image quality
Duty Cycle	Up to 15, 000 pages
