Xerox WorkCentre 3025BI Service Manual

June 2014
5-12
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
PL 5.2
Parts Lists

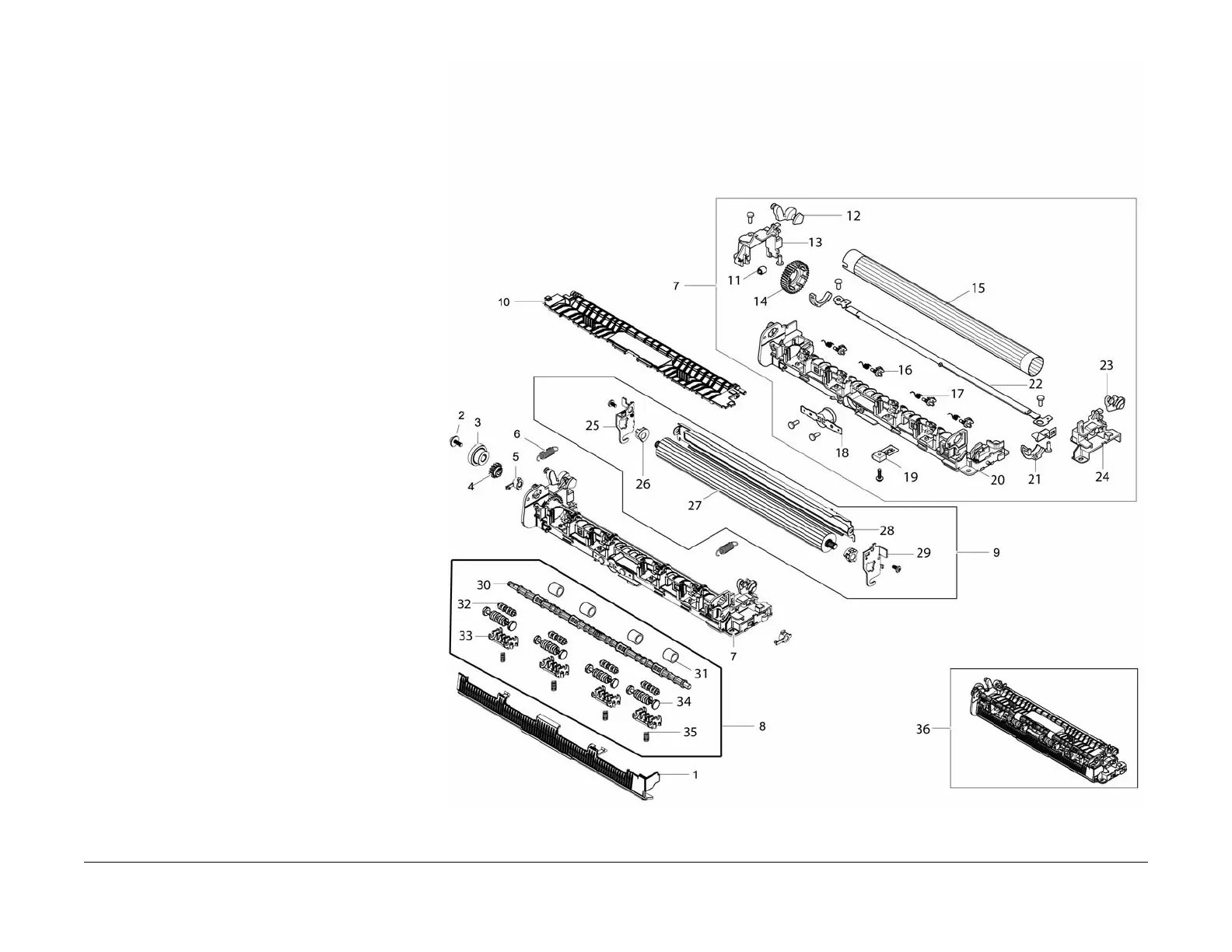

PL 5.2 Fuser
Item Part Description
1 – Exit Cover
2– Screw
3 – Exit Drive Gear
4 – Exit Gear
5 – Exit Shaft Bushing
6– Spring
7 – Upper Fuser
8 – Exit Roller
9 – Lower Fuser
10 – Fuser Cover
11 – Gear
12 – Jam Lever
13 – Lamp Cover
14 – Gear
15 – Heat Roll
16 – Claw Guide
17 – Spring
18 – Thermostat
19 – Thermistor
20 – Fuser Cover
21 – Bushing
22 – Fuser Lamp
23 – Right Jam Lever
24 – Lamp Cover
25 – Bracket
26 – Bushing
27 – Pressure Roll
28 – Frame
29 – Bracket
30 – Exit Shaft
31 – Rubber Rolls
32 – Exit Roll
33 – Exit Holder
34 – Exit Roll
35 – Spring
36 126N00432 FUSER Module 110V
– 126N00433 FUSER Module 220V

Xerox WorkCentre 3025BI Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Memory	128 MB
Duplex Printing	Manual
First Page Out	As fast as 8.5 seconds
Paper Input Capacity	150 sheets
Paper Output Capacity	100 sheets
Paper Capacity	150 sheets
Processor Speed	600 MHz
Dimensions	406 x 360 x 257 mm
Weight	7.5 kg
Scan Resolution	600 x 600 dpi
Maximum Document Size	216 x 356 mm
Connectivity	USB, Wi-Fi
Print Resolution	Up to 1200 x 1200 dpi enhanced image quality
Duty Cycle	Up to 15, 000 pages
