Xerox WorkCentre 3025BI Service Manual

June 2014
4-16
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.9, REP 1.10
Repairs
REP 1.9 FAX PWB
Parts List on PL 1.2
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the following covers:
a. The Front Cover (REP 1.2).
b. The Right Side Cover (REP 1.1).
3. Remove the FAX PWB (Figure):
a. Disconnect the connectors (2) on the FAX PWB (Figure 1)
b. Remove the screws (4) and the PWB.

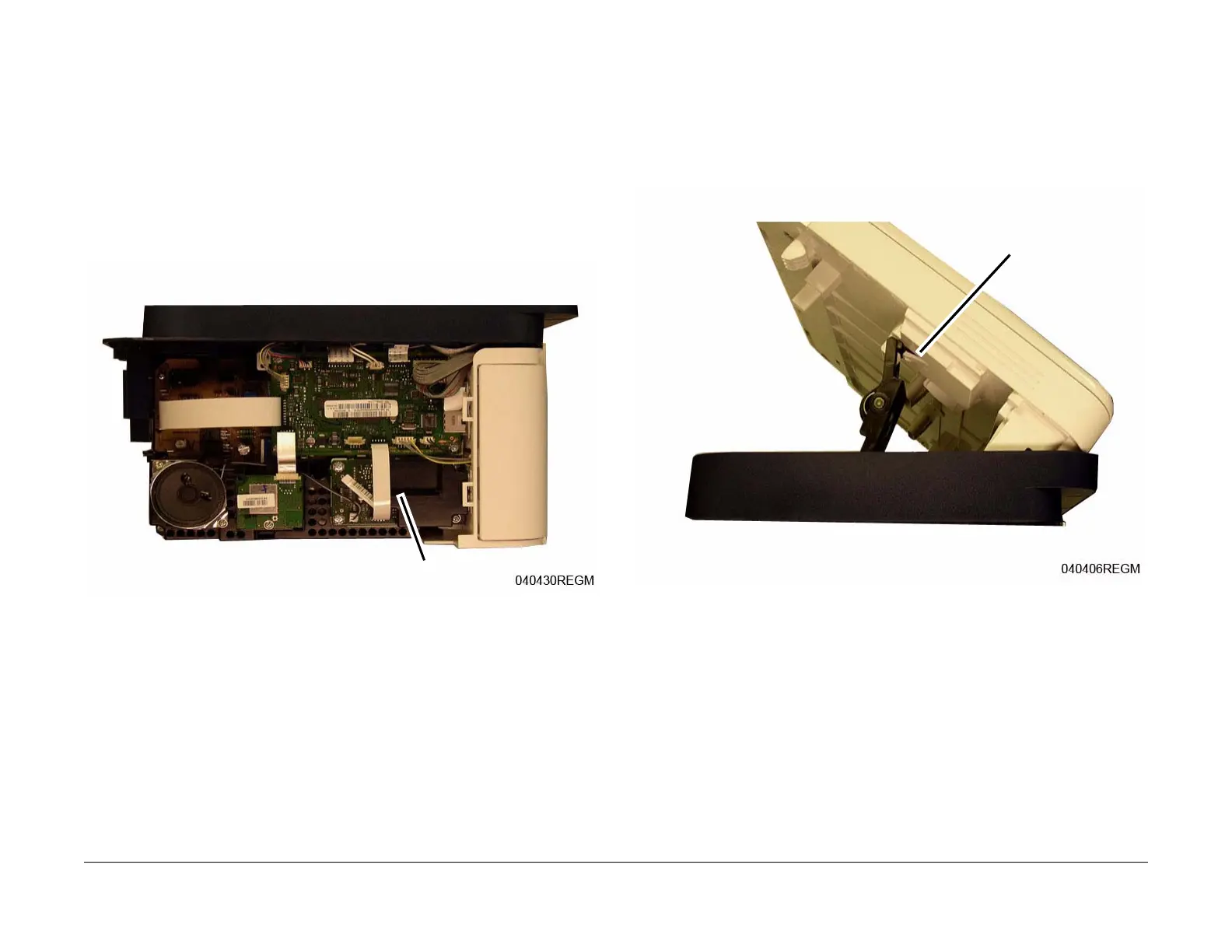

Figure 1 FAX PWB Removal
Replacement
NOTE: Tapered Plastic Screws and Round Machine Screws are used to hold the PWB to the
frame. Make sure that the Plastic Screws go into plastic components and Machine Screws go
into the metal frame.
Install the components in the reverse of removal.
REP 1.10 Scanner Module and Support Hinge
Parts List on PL 1.1 and PL 1.2
Removal
Scanner Module Support Hinge Removal
1. Open the Scanner Module and release the Latch on the Scanner Support Hinge (Figure
1).
Figure 1 Scanner Support Hinge (Right Side View)
FAX PWB
Hinge Latch

Xerox WorkCentre 3025BI Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Memory	128 MB
Duplex Printing	Manual
First Page Out	As fast as 8.5 seconds
Paper Input Capacity	150 sheets
Paper Output Capacity	100 sheets
Paper Capacity	150 sheets
Processor Speed	600 MHz
Dimensions	406 x 360 x 257 mm
Weight	7.5 kg
Scan Resolution	600 x 600 dpi
Maximum Document Size	216 x 356 mm
Connectivity	USB, Wi-Fi
Print Resolution	Up to 1200 x 1200 dpi enhanced image quality
Duty Cycle	Up to 15, 000 pages
