Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.21, REP 1.22
Repairs
5. Remove the Black Insulator Sheet and the LSU Cable (Figure 2).

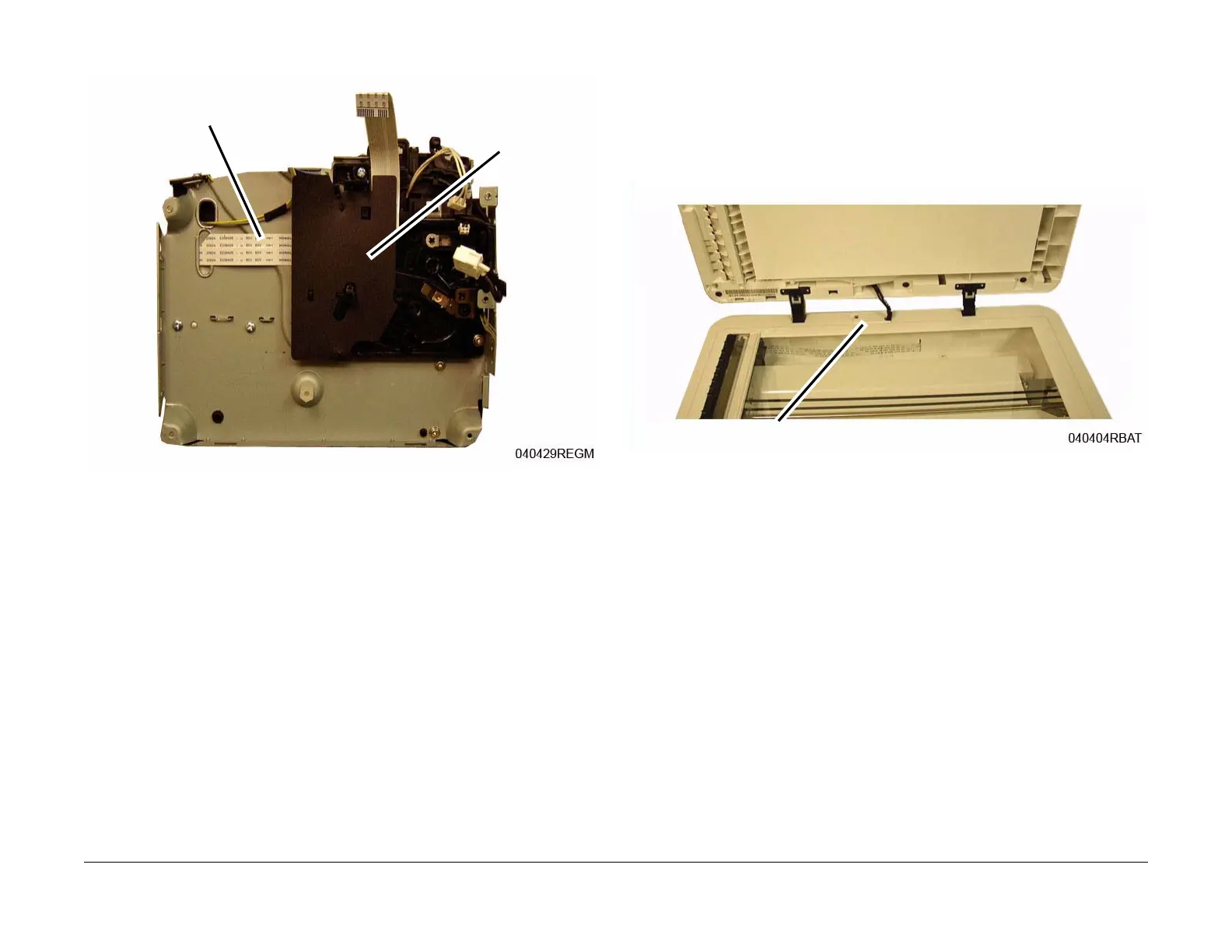

Figure 2 Insulator Sheet and LSU Cable
Replacement
NOTE: Tapered Plastic Screws and Round Machine Screws are used to hold the PWB to the
frame. Make sure that the Plastic Screws go into plastic components and Machine Screws go
into the metal frame.
Install the components in the reverse of removal.
REP 1.22 Automatic Document Feeder (ADF)
Parts List on PL 1.2
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Open and lift the ADF up.
Unlatch and remove the Connector Cover (Figure 1).
Figure 1 ADF Connector Cover
LSU Cable
Insulator
ADF Connector Cover

Xerox WorkCentre 3025BI Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Memory	128 MB
Duplex Printing	Manual
First Page Out	As fast as 8.5 seconds
Paper Input Capacity	150 sheets
Paper Output Capacity	100 sheets
Paper Capacity	150 sheets
Processor Speed	600 MHz
Dimensions	406 x 360 x 257 mm
Weight	7.5 kg
Scan Resolution	600 x 600 dpi
Maximum Document Size	216 x 356 mm
Connectivity	USB, Wi-Fi
Print Resolution	Up to 1200 x 1200 dpi enhanced image quality
Duty Cycle	Up to 15, 000 pages
