Xerox WorkCentre 3025BI Service Manual

June 2014
5-4
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
PL 1.2
Parts Lists

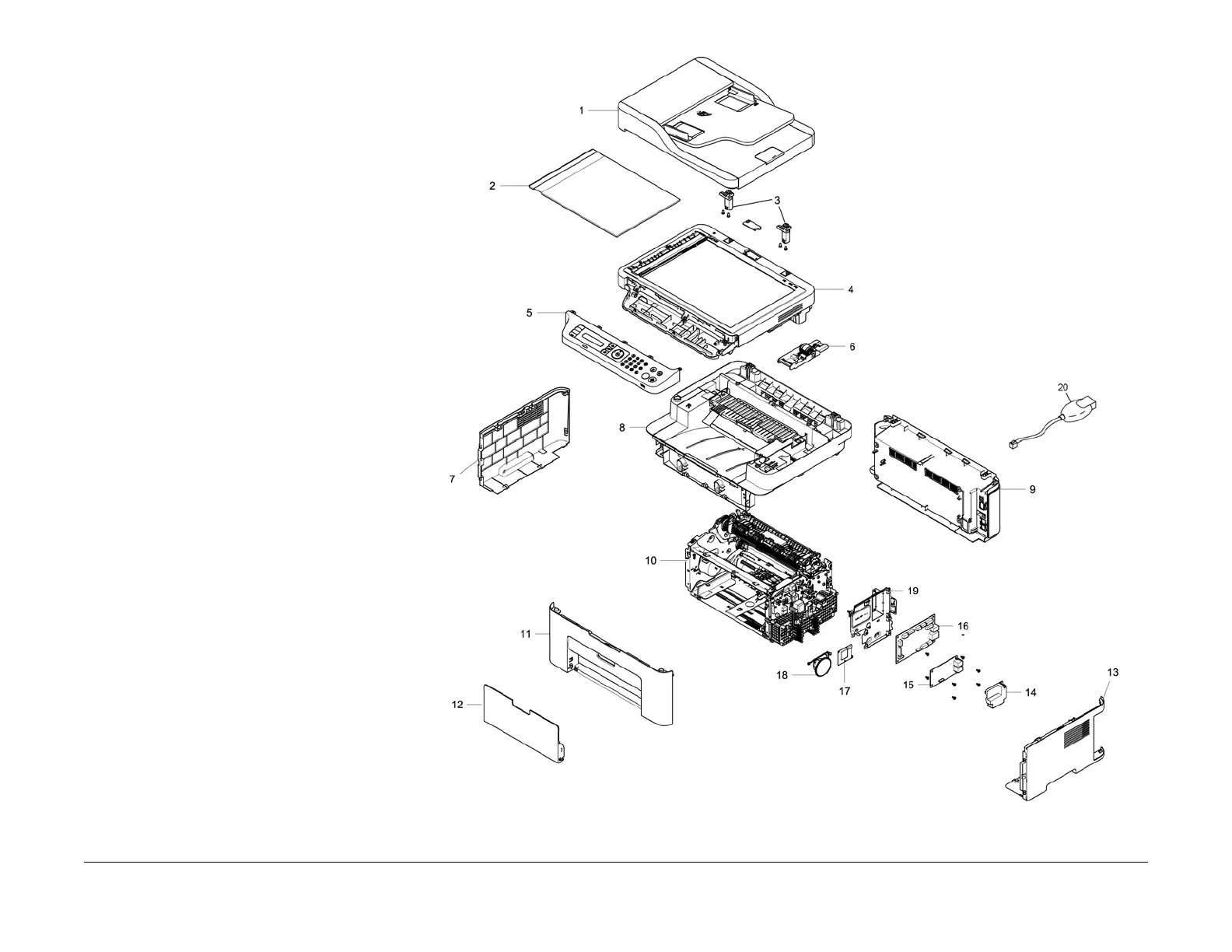

PL 1.2 Main
Item Part Description
1 022N02799 ADF (PL 1.3)
2 050N00680 Document Pad
3 003N01117 Hinge
4 090N00183 Scanner (PL4.2)
5 – Control Panel (PL 3.2)
6 – Scanner Support Hinge
7 002N03163 Left Cover
8 – Middle Cover (PL 2.1)
9 002N03168 Rear Cover
10 – Frame (PL 5.1)
11 002N03173 Front Cover
12 002N03176 Paper Support
13 002N03180 Right Cover
14 – FAX Board Cover
15 140N63726 Fax PWB
16 140N63717 PWB-MAIN-3025 NI (NW / Wifi)
17 140N63727 WNPC (WiFi) PWB
18 – Speaker
19 – Controller Shield
20 005N01172 Surge Protector (South Africa Only)
