Xerox WorkCentre 3025BI Service Manual

June 2014
4-15
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.8
Repairs
7. Remove the Left Frame and Drive Motor (Figure 3):
a. Remove the LSU Cover screw (1).
b. Remove the screws (7) and the Left Frame.

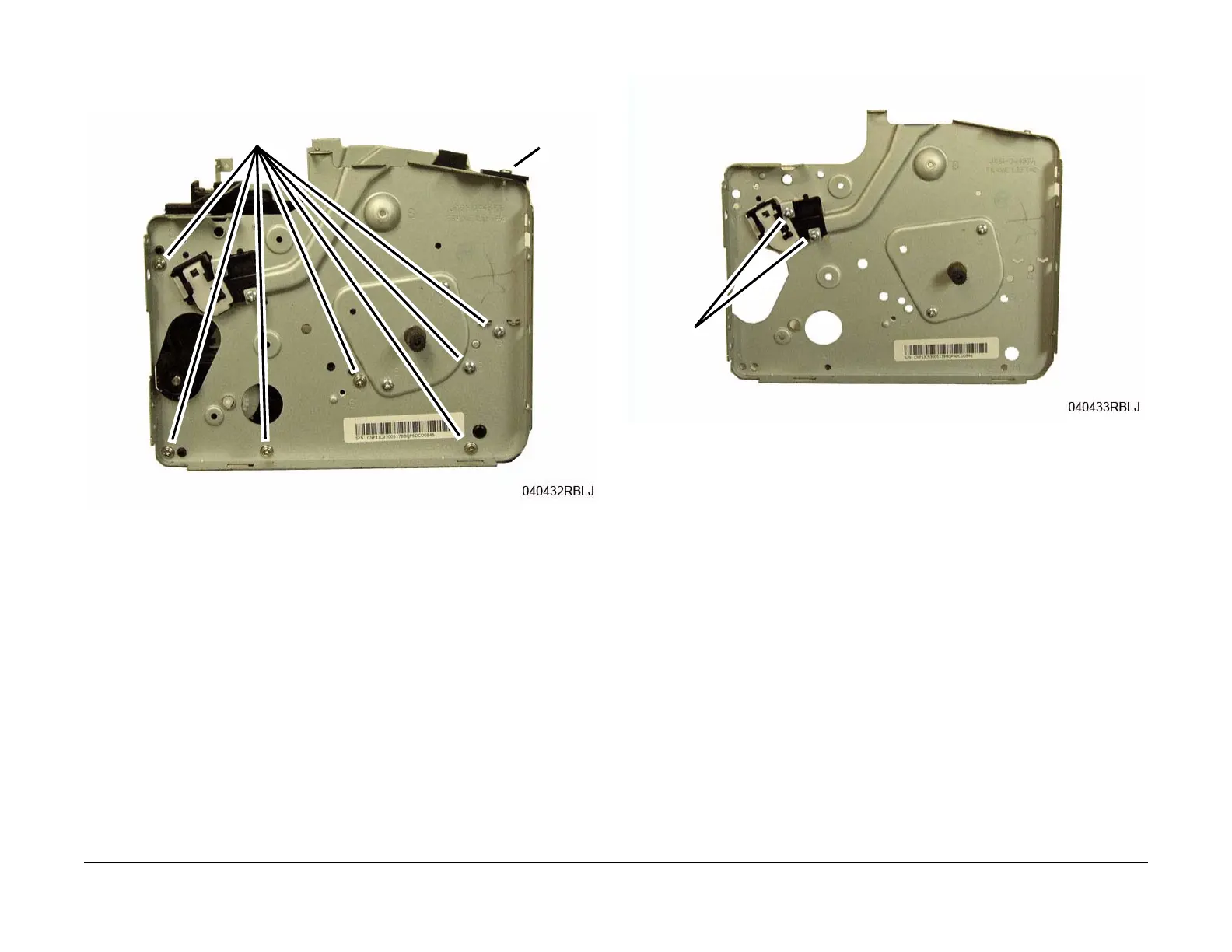

Figure 3 Left Frame Removal
8. Remove the Guide from the Left Frame (2 screws) (Figure 4).
Figure 4 Guide Removal
Replacement
NOTE: Tapered Plastic Screws and Round Machine Screws are used to hold the PWB to the
frame. Make sure that the Plastic Screws go into plastic components and Machine Screws go
into the metal frame.
Install the components in the reverse of removal.
NOTE: The Frame is flexible and can be bowed out if the screws are not tightened in the cor-
rect order.
Reinstall the Frame as follows so it seats flush against the printer internal modules.
1. Align the Left Frame on to the internal modules.
2. Install, but do not tighten, the screws (7) (Figure 3).
3. Tighten the Frame screws from the center of the Frame:
To the Front of the printer, then to the Rear of the Printer.
b - Screws
a - Screw
Screws

Xerox WorkCentre 3025BI Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Memory	128 MB
Duplex Printing	Manual
First Page Out	As fast as 8.5 seconds
Paper Input Capacity	150 sheets
Paper Output Capacity	100 sheets
Paper Capacity	150 sheets
Processor Speed	600 MHz
Dimensions	406 x 360 x 257 mm
Weight	7.5 kg
Scan Resolution	600 x 600 dpi
Maximum Document Size	216 x 356 mm
Connectivity	USB, Wi-Fi
Print Resolution	Up to 1200 x 1200 dpi enhanced image quality
Duty Cycle	Up to 15, 000 pages
