Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.4
Repairs

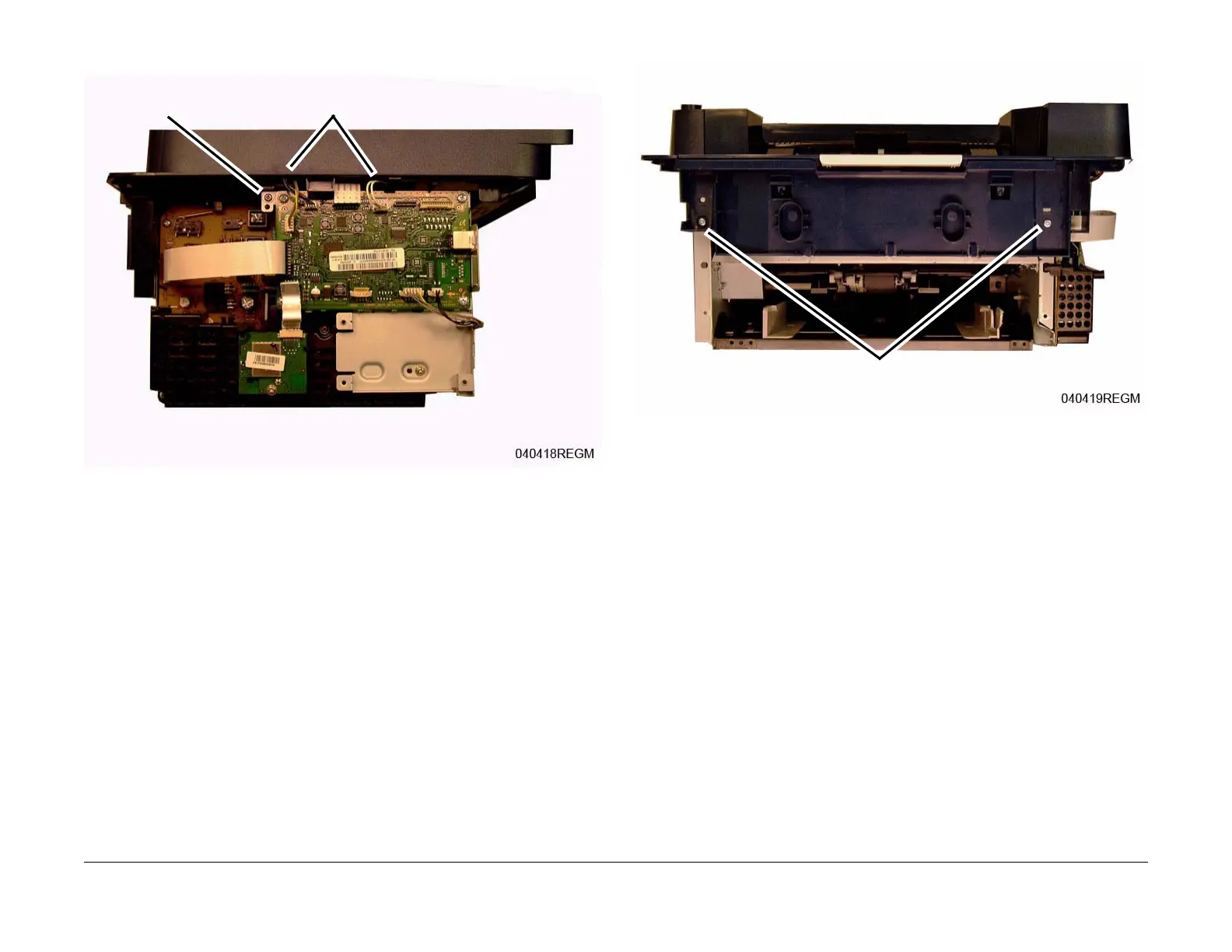

6. Remove the Middle Cover screw (1) on the left side of the printer (Figure 2).
Figure 2 Middle Cover Left Side Screw
7. Remove the Middle Cover front screws (2) (Figure 3).
Figure 3 Middle Cover Front Screws
8. Lift up and remove the Middle Cover.
Release the wires from the Main PWB, from the wire guides on the underside of the Mid-
dle Cover (Figure 2).
Screw
Wire Guides
Screws
To Next Page
