Xerox WorkCentre 3025BI Service Manual

June 2014
4-9
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.5
Repairs
4. Disconnect the connectors (3) and remove the Control Panel:
a. For the 3025 BI refer to (Figure 2).
b. For the 3025 NI refer to (Figure 3)

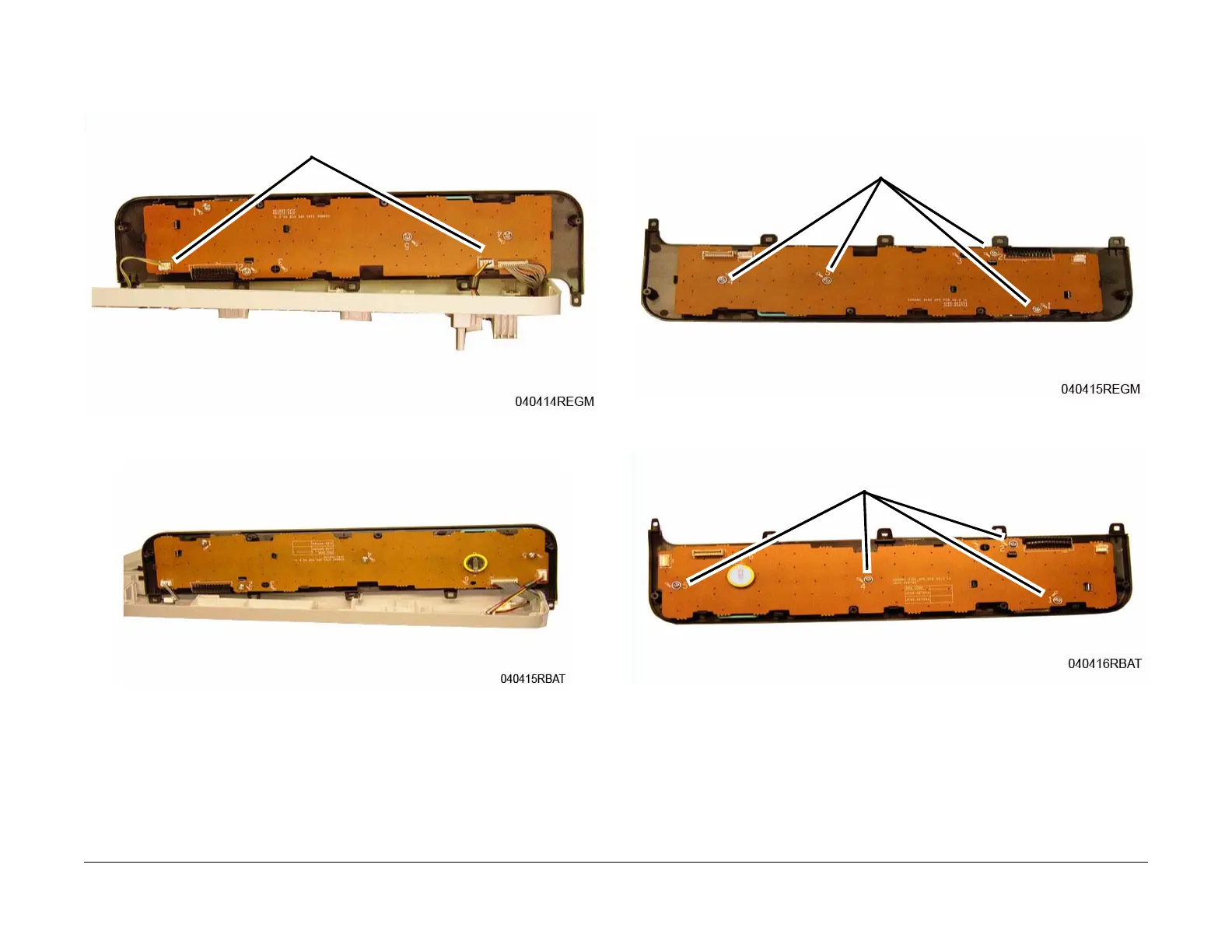

Figure 2 Control Panel Removal 3025 BI (Front View)
Figure 3 Control Panel Removal 3025 NI (Front View)
5. Remove the Control Panel PWB:
a. Remove the screws (4), release the latches and remove the PWB.
For the 3025 BI refer to (Figure 4).
For the 3025 NI refer to (Figure 5).
Figure 4 Control Panel PWB Removal 3025 BI
Figure 5 Control Panel PWB Removal 3025 NI
Replacement
Install the components in the reverse of removal.
Connectors
Screws
Screws

Xerox WorkCentre 3025BI Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Memory	128 MB
Duplex Printing	Manual
First Page Out	As fast as 8.5 seconds
Paper Input Capacity	150 sheets
Paper Output Capacity	100 sheets
Paper Capacity	150 sheets
Processor Speed	600 MHz
Dimensions	406 x 360 x 257 mm
Weight	7.5 kg
Scan Resolution	600 x 600 dpi
Maximum Document Size	216 x 356 mm
Connectivity	USB, Wi-Fi
Print Resolution	Up to 1200 x 1200 dpi enhanced image quality
Duty Cycle	Up to 15, 000 pages
