June 2014
4-22
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.12
Repairs
4. Perform the following (Figure 1):
a. Disconnect the Drive Motor connector (1).
b. Disconnect the LSU flat cables (2).
NOTE: The Flat Cable may be adhered to the LSU, detach it from the LSU and re-
install it on the new LSU in the same location.
c. Remove the inside LSU cover screws (2).

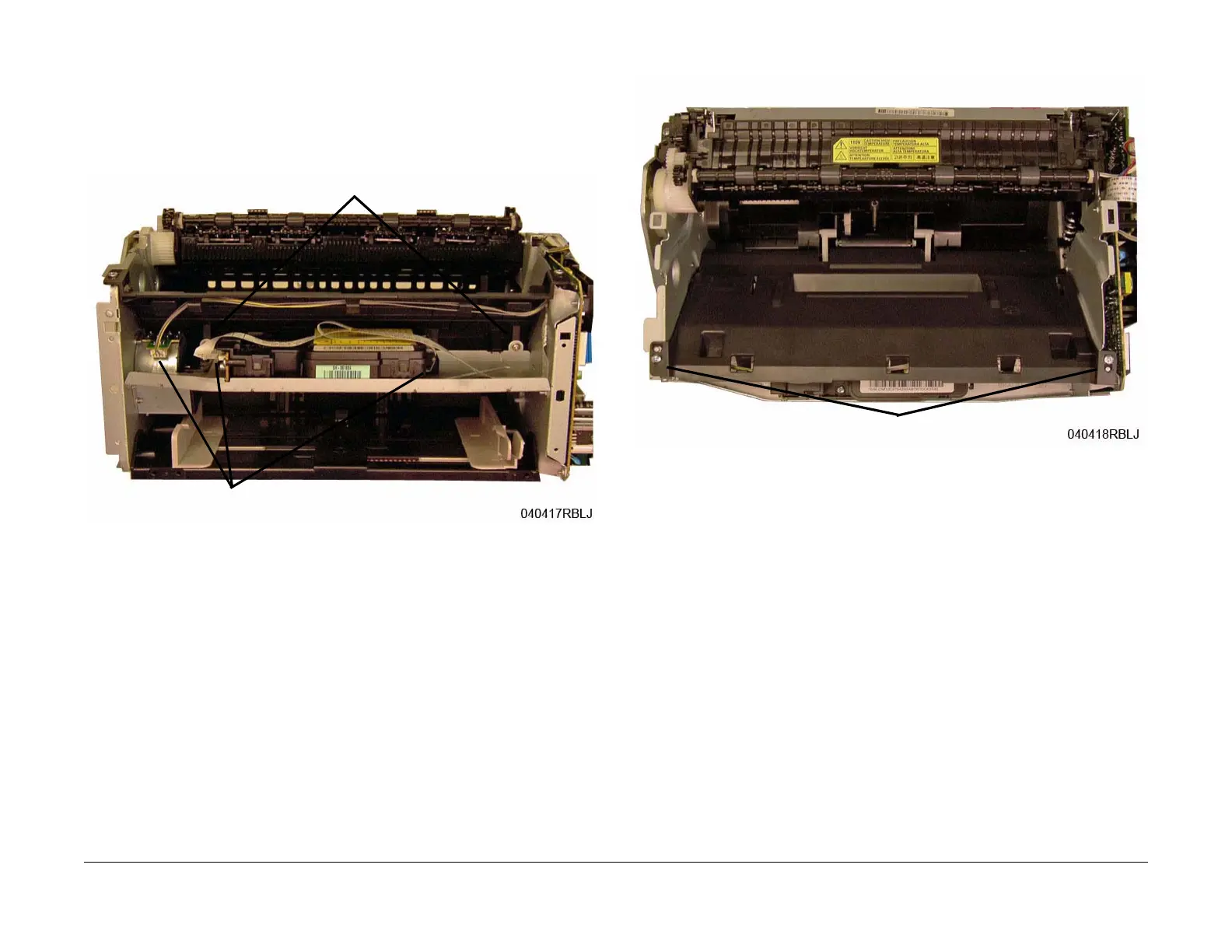

Figure 1 LSU Connectors and Screws (Front View)
5. Remove the top LSU cover screws (2) and the cover (Figure 2).
Figure 2 LSU Cover Top Screws (Top View)
Connector
Screw
To Next Page
