June 2014
4-27
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.14
Repairs
4. Release the latch on the Paper Drive Roll Gear and remove it (Figure 2).

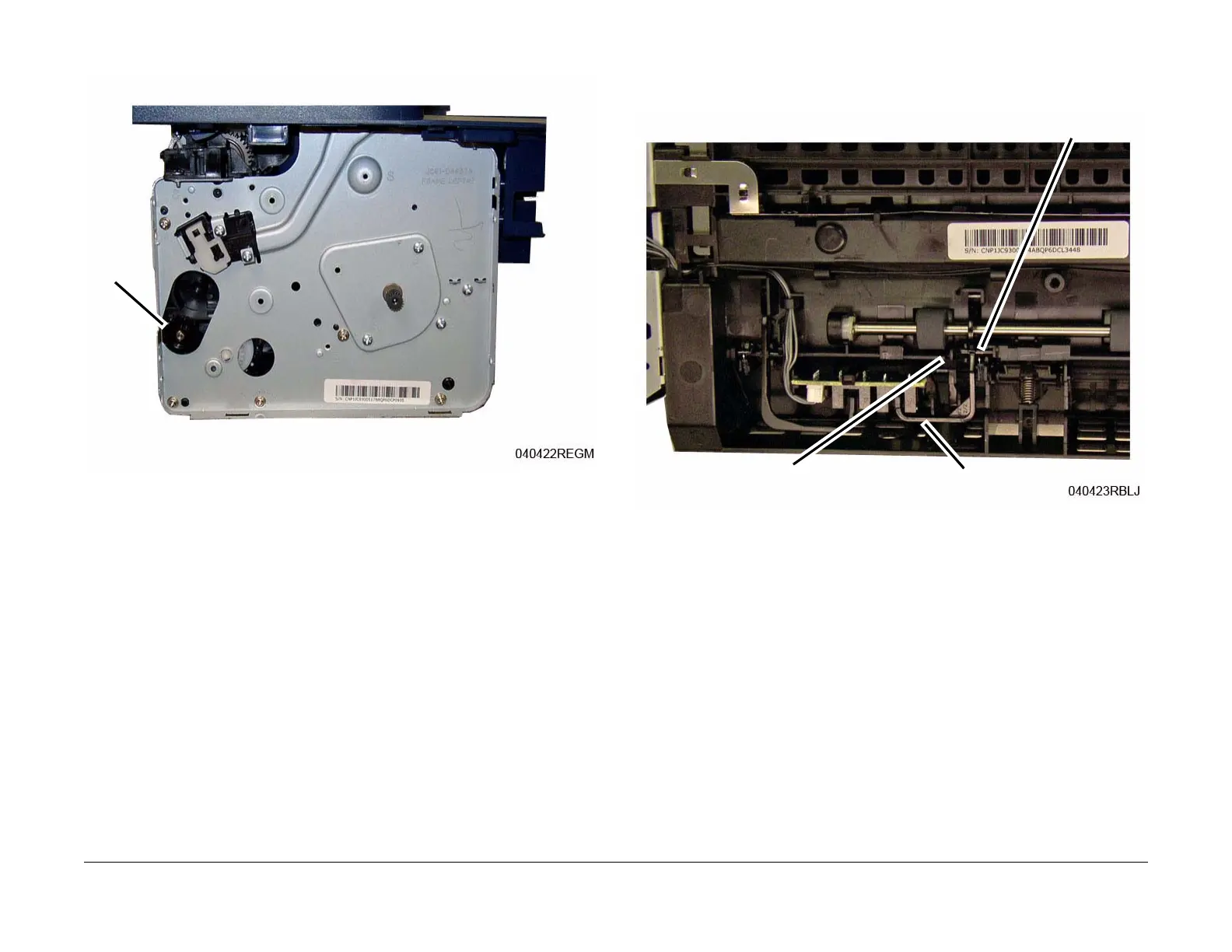

Figure 2 Paper Drive Roll Gear (Left View)
5. Remove the Feed Sensor Actuator (Figure 3).
Note the location of the Spring in the frame cutout for reinstallation.
a. Unlatch and remove the actuator.
Figure 3 Feed Sensor Actuator (Rear View)
Gear
Spring
Latch
Feed Sensor Actuator
To Next Page
