June 2014
4-31
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.17
Repairs
6. Lift the Transfer Roll out of the printer (Figure 2).

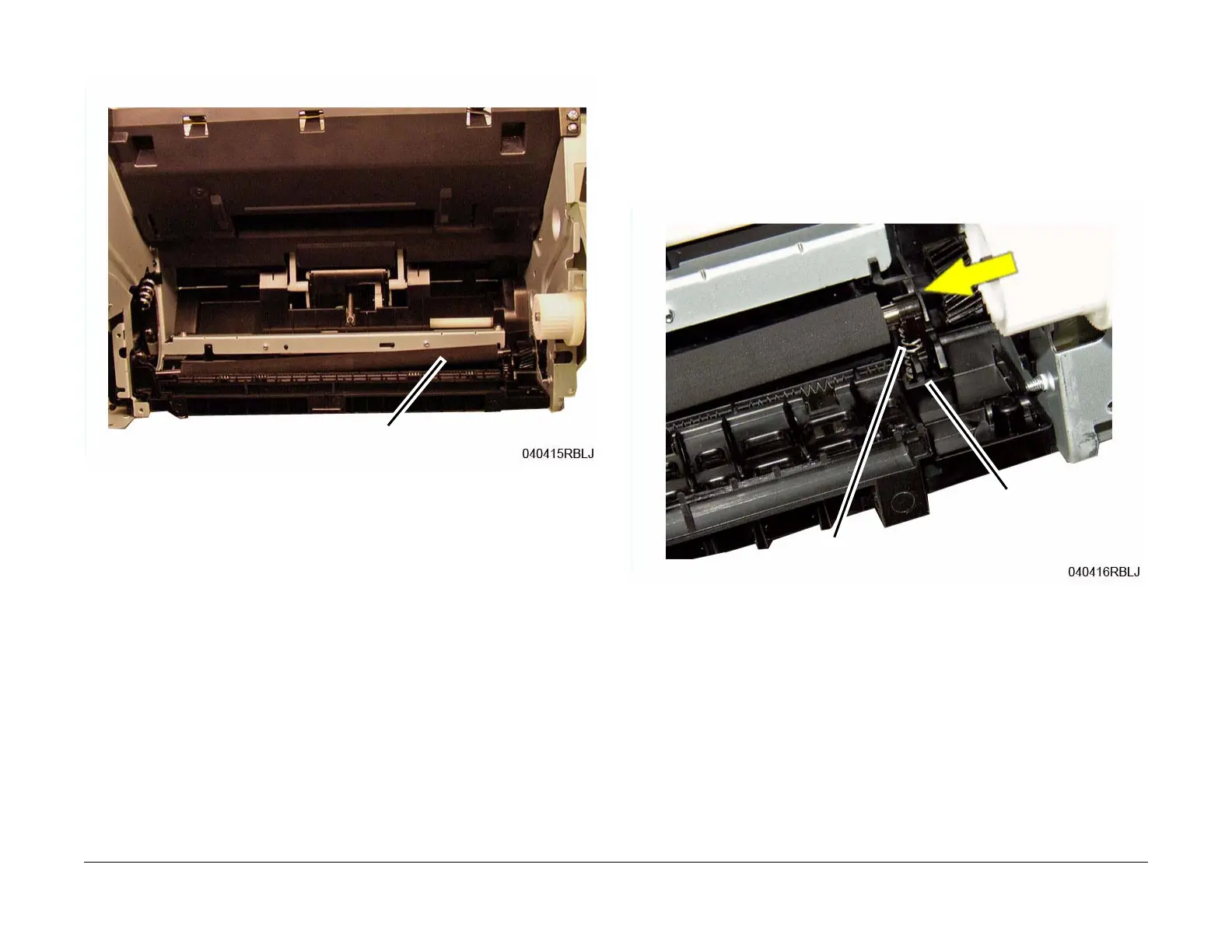

Figure 2 Transfer Roll Removal (Top View)
Replacement
NOTE: Tapered Plastic Screws and Round Machine Screws are used to hold the PWB to the
frame. Make sure that the Plastic Screws go into plastic components and Machine Screws go
into the metal frame.
1. Align the slots in the Transfer Roll Bushing with the Guides on the Printer Frame (Figure
3).
Tilt the top of the Bushing inward to align the Latches while pushing it into place.
Figure 3 Transfer Roll Bushing Alignment (Top View)
Install the components in the reverse of removal.
Transfer Roll
Slot
Guide
To Next Page
