Xerox WorkCentre 3025NI Service Manual

June 2014
4-34
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.19
Repairs

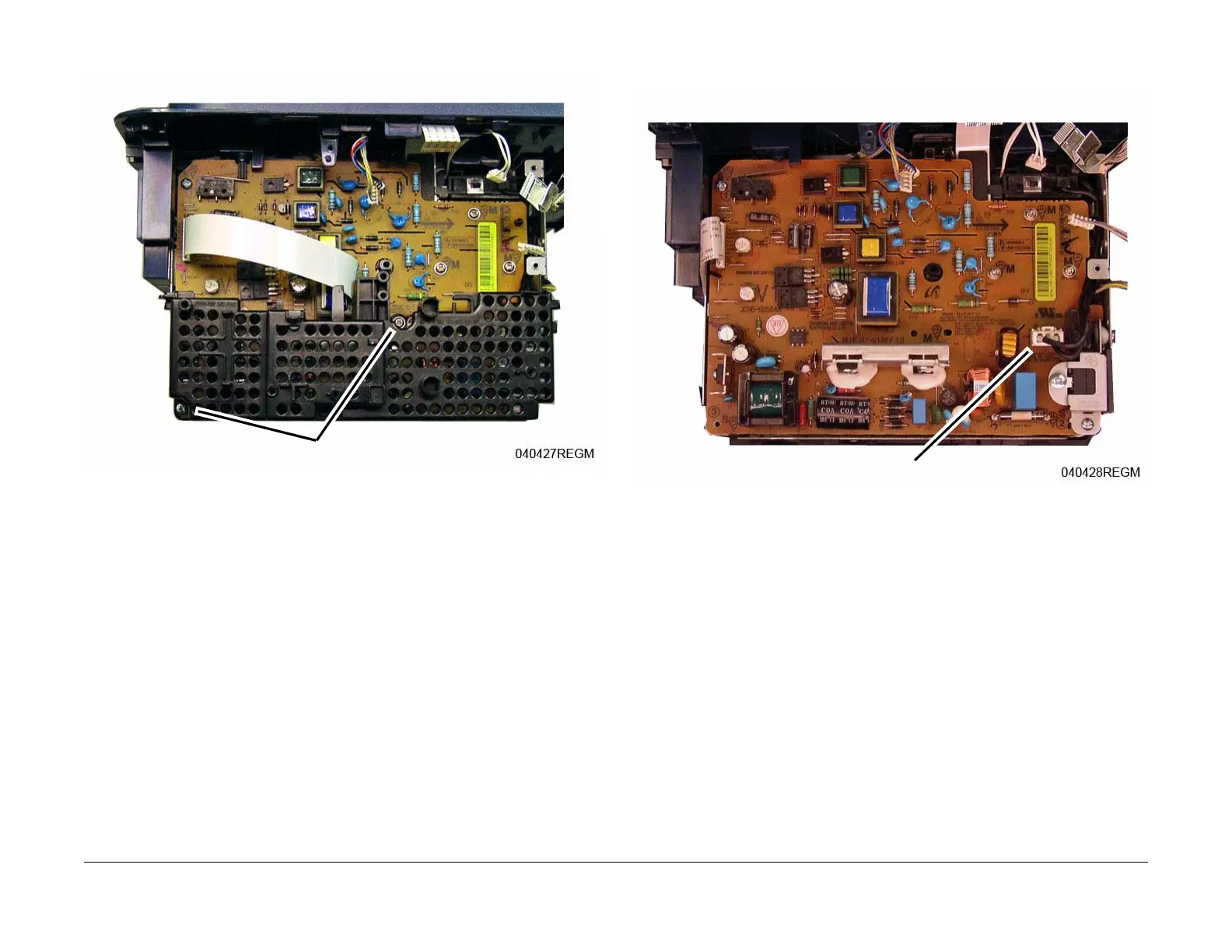

5. Remove the Plastic Shield (2 screws) (Figure 2).
Figure 2 Plastic Shield Removal
6. Disconnect the Fuser Connector (Figure 3).
Route the Fuser wires through the frame.
Figure 3 Fuser Connector
Screws
Connector
