xFusion Digital Technologies FusionServer 2288H V6 User Manual

FusionServer 2288H V6 Server
Technical White Paper
5 Hardware Description
2022-06-25
179
Activity Indicator
(Green)
Fault Indicator
(Yellow)
Description
Off
Blinking at 0.5 Hz
The NVMe drive has completed the hot
swap process and is removable.
Steady on/Off
Steady on
The NVMe drive is faulty.
M.2 FRU Indicators
The server supports the Avago SAS3004iMR RAID controller card, which supports two M.2
FRUs.

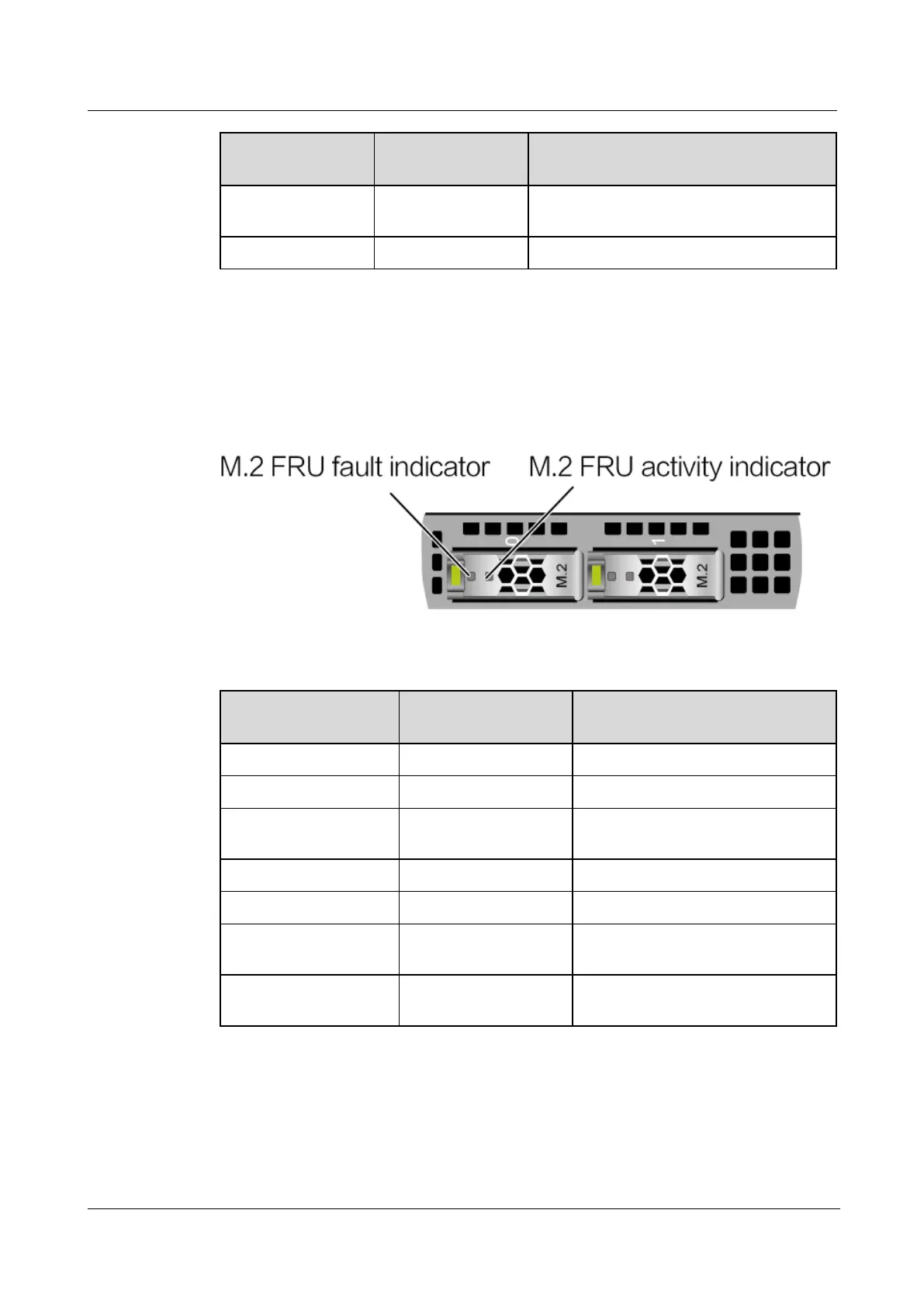

Figure 5-138 M.2 FRU indicators
Table 5-73 M.2 FRU indicators
M.2 FRU Active
Indicator (Green)
M.2 FRU Fault
Indicator (Yellow)
Description
Off
Off
The M.2 FRU is not detected.
Steady on
Off
The M.2 FRU is inactive.
Blink
Off
The M.2 FRU is in the read/write or
synchronization state.
Steady on
Blink
The M.2 FRU is being located.
Blink
Blink
The RAID array is being rebuilt.
Off
Steady on
The M.2 FRU cannot be detected or
is faulty.
Steady on
Steady on
The M.2 FRU RAID status is
abnormal.
5.2.5.3 RAID Controller Card
The RAID controller card supports RAID configuration, RAID level migration, and drive
roaming.
