xFusion Digital Technologies FusionServer 2288H V6 User Manual

FusionServer 2288H V6 Server
Technical White Paper
5 Hardware Description
2022-06-25
27
Silkscreen
Indicator and
Button
Description
FlexIO card
presence
indicator
Indicates whether the FlexIO card is detected.
⚫
Off: The FlexIO card is not detected.
⚫
Blinking green at 0.5 Hz: The FlexIO card is
detected but is not powered on.
⚫
Blinking green at 2 Hz: The FlexIO card is
detected and has just been inserted.
⚫
Steady green: The FlexIO card is detected and the
power supply is normal.
iBMC direct
connect
management
port indicator
Indicates the status when the iBMC direct connect
management port connects to a terminal (local PC or
Android mobile phone):
⚫
Off: No terminal is connected.
⚫
Blinking green at short intervals for 3 seconds and
then off: The port is disabled.
⚫
Steady green: The terminal is connected.
Indicates the status when the iBMC direct connect
management port connects to a USB device:
⚫
Blinking red at long intervals: The job fails or an
error is reported when the job is complete.
⚫
Blinking green at short intervals: The job is being
executed.
⚫
Blinking green at short intervals for 3 seconds and
then off: The port is disabled.
⚫
Steady green: The server configuration file is
being copied from the USB device or the job is
successfully completed.

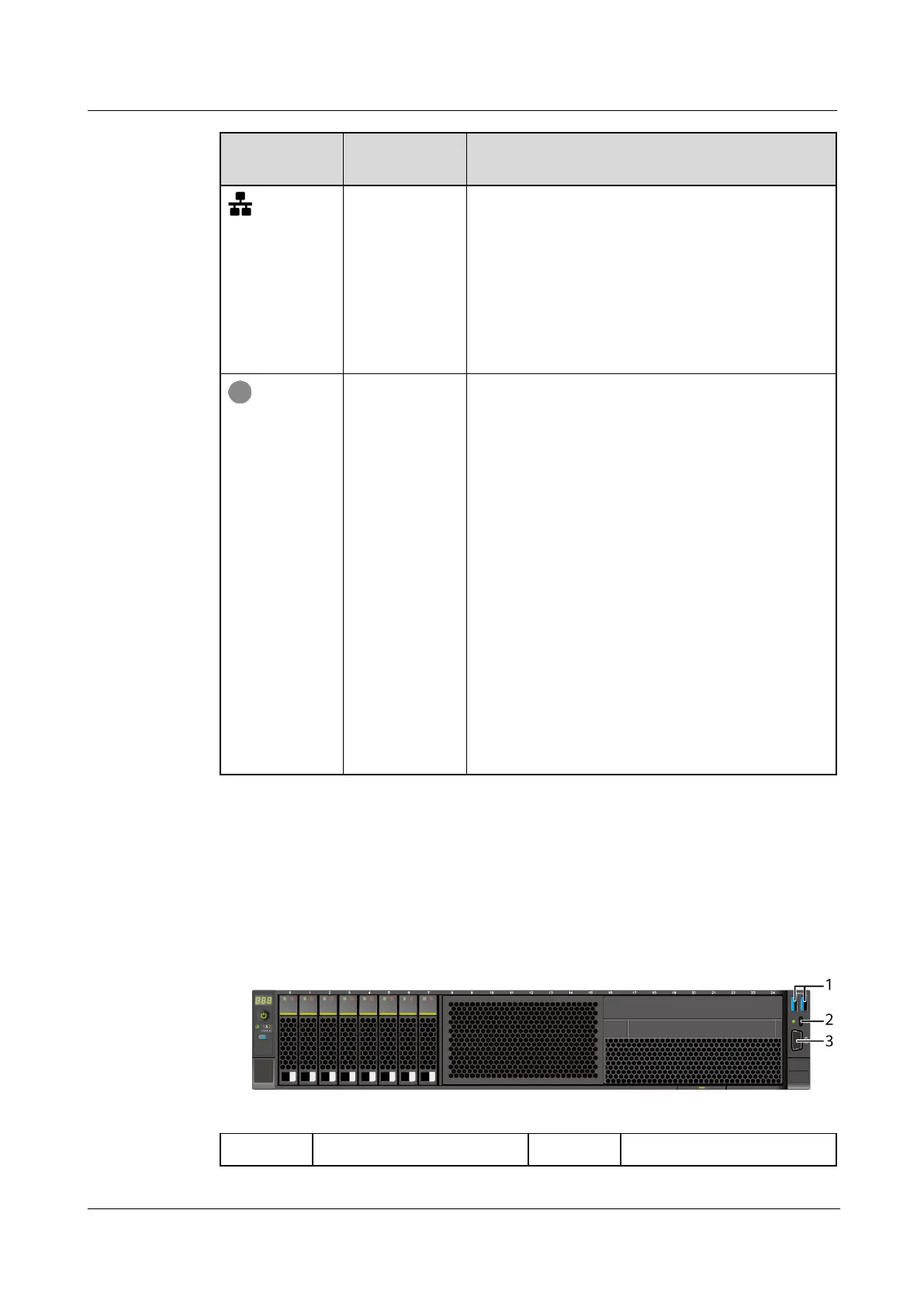

5.1.1.3 Ports
Port Positions
⚫
8 x 2.5" drive configuration
Figure 5-13 Ports on the front panel
1
USB 3.0 port
2
iBMC direct connect

xFusion Digital Technologies FusionServer 2288H V6 Specifications

General

Brand	xFusion Digital Technologies
Model	FusionServer 2288H V6
Category	Server
Language	English
