5.2.2 Rear Panel
5.2.2.1 Appearance

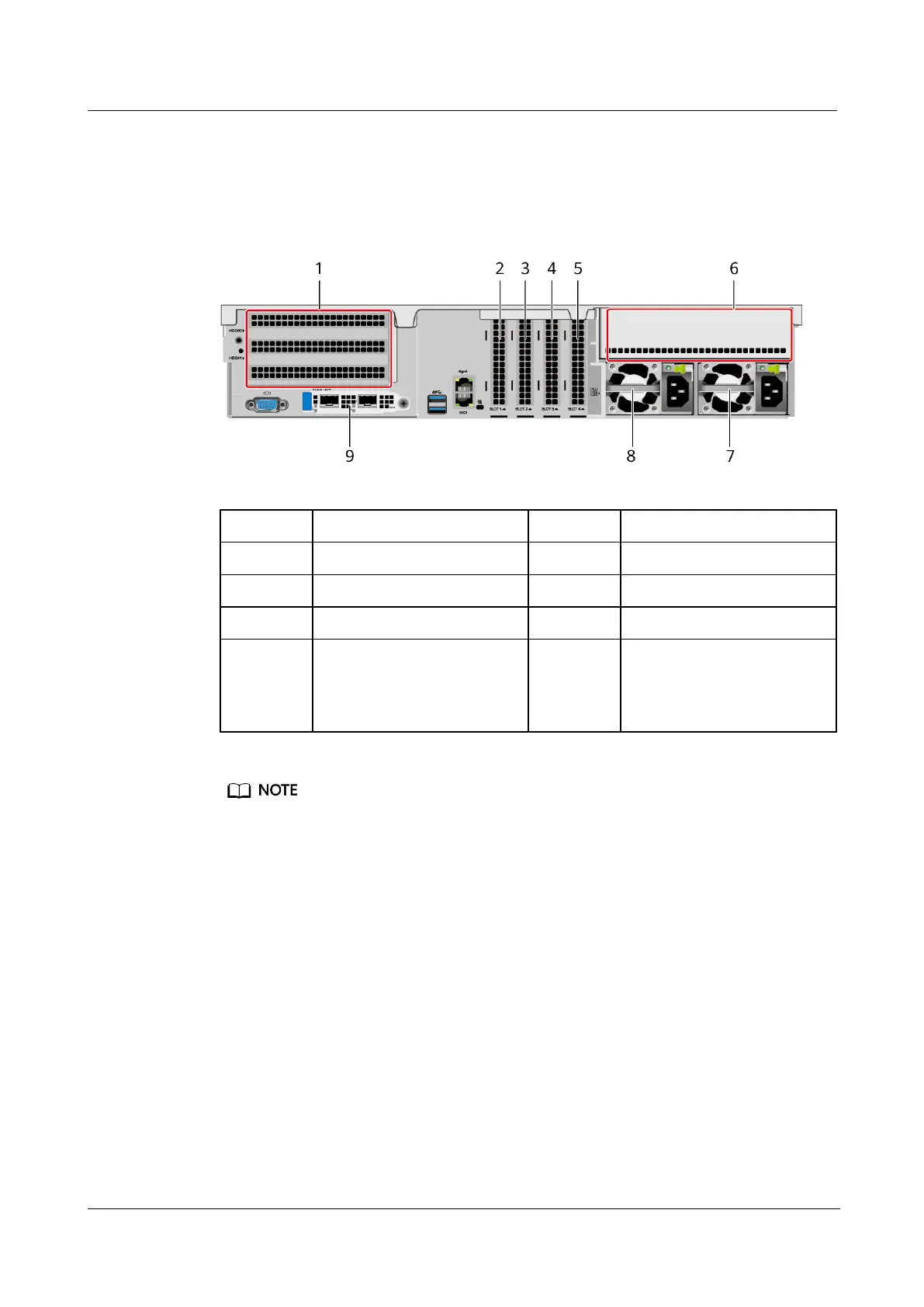

Figure 5-116 Rear view
1
I/O module 1
2
PCIe Slot1
3
PCIe Slot2
4
PCIe Slot3
5
PCIe Slot4
6
I/O module 3
7
PSU 2
8
PSU 1
9
FlexIO card
NOTE
The FlexIO card slot supports
OCP 3.0 network adapters.
-
-
⚫
I/O module 1 supports only the 2 x 3.5" rear-drive module.
⚫
I/O module 3 supports a PCIe riser module or 4 x 2.5" rear-drive module.
⚫
For details about the OCP 3.0 network adapter, see 5.2.6.1 OCP 3.0 Network Adapters.
⚫
The figure is for reference only. The actual configuration may vary.
