FusionServer 2288H V6 Server
Technical White Paper
⚫
For details about the OCP 3.0 network adapter, see 5.1.6.1 OCP 3.0 Network Adapters .
⚫
The figure is for reference only. The actual configuration may vary.
5.1.2.2 Indicators and Buttons
Indicator Positions
⚫
Server with a drive module or PRM on the rear panel

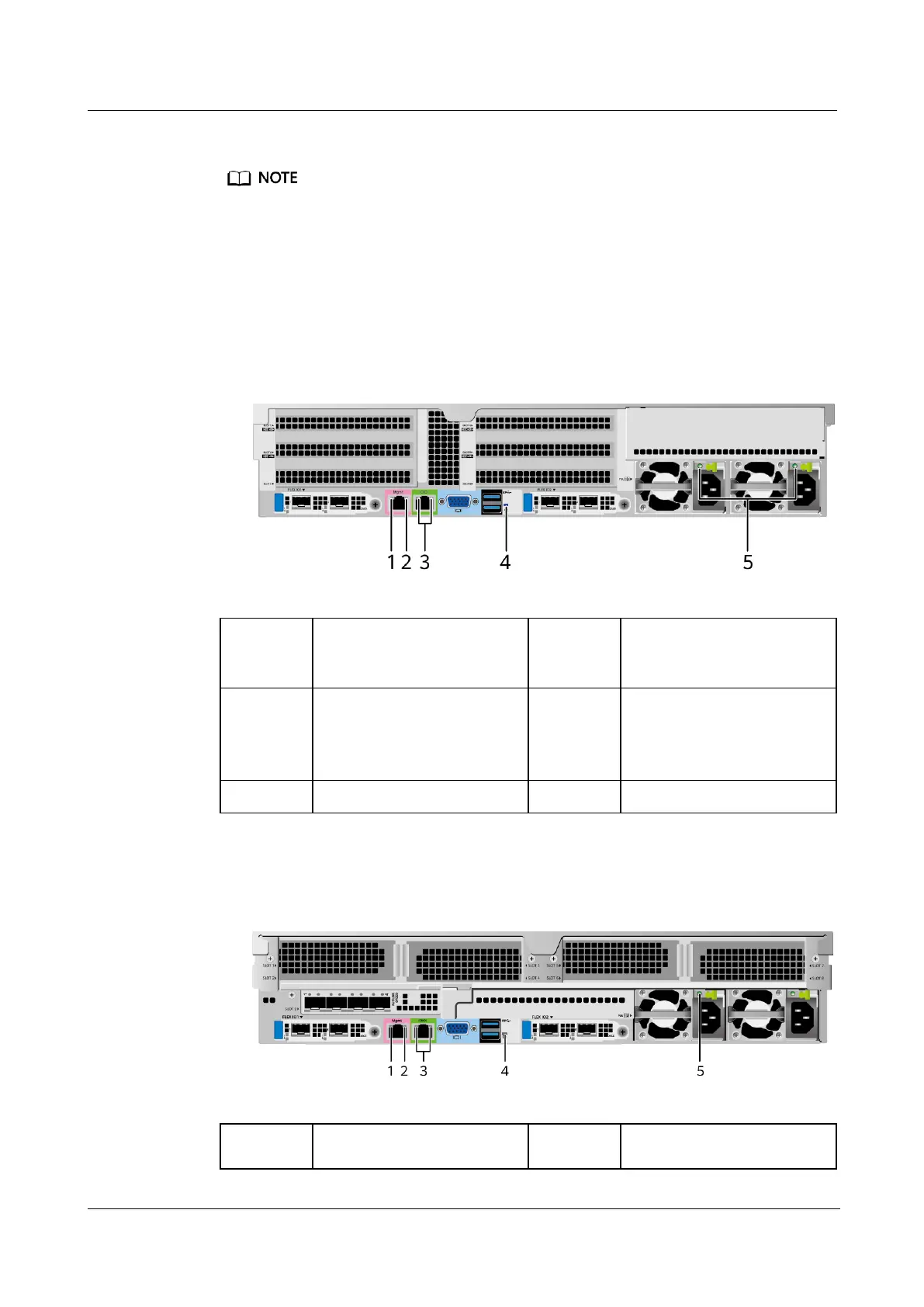

Figure 5-21 Indicators on the rear panel
Data transmission status
indicator of the management
network port
Connection status indicator of
the management network port
Serial port indicator
NOTE
Reserved and unavailable
currently.
⚫
Server with four GPUs on the rear panel
Figure 5-22 Indicators on the rear panel
Data transmission status
indicator of the management
Connection status indicator of
