network port
the management network port
3
Serial port indicator
NOTE
Reserved and unavailable
currently.
4
UID indicator
5
PSU indicator
-
-
⚫

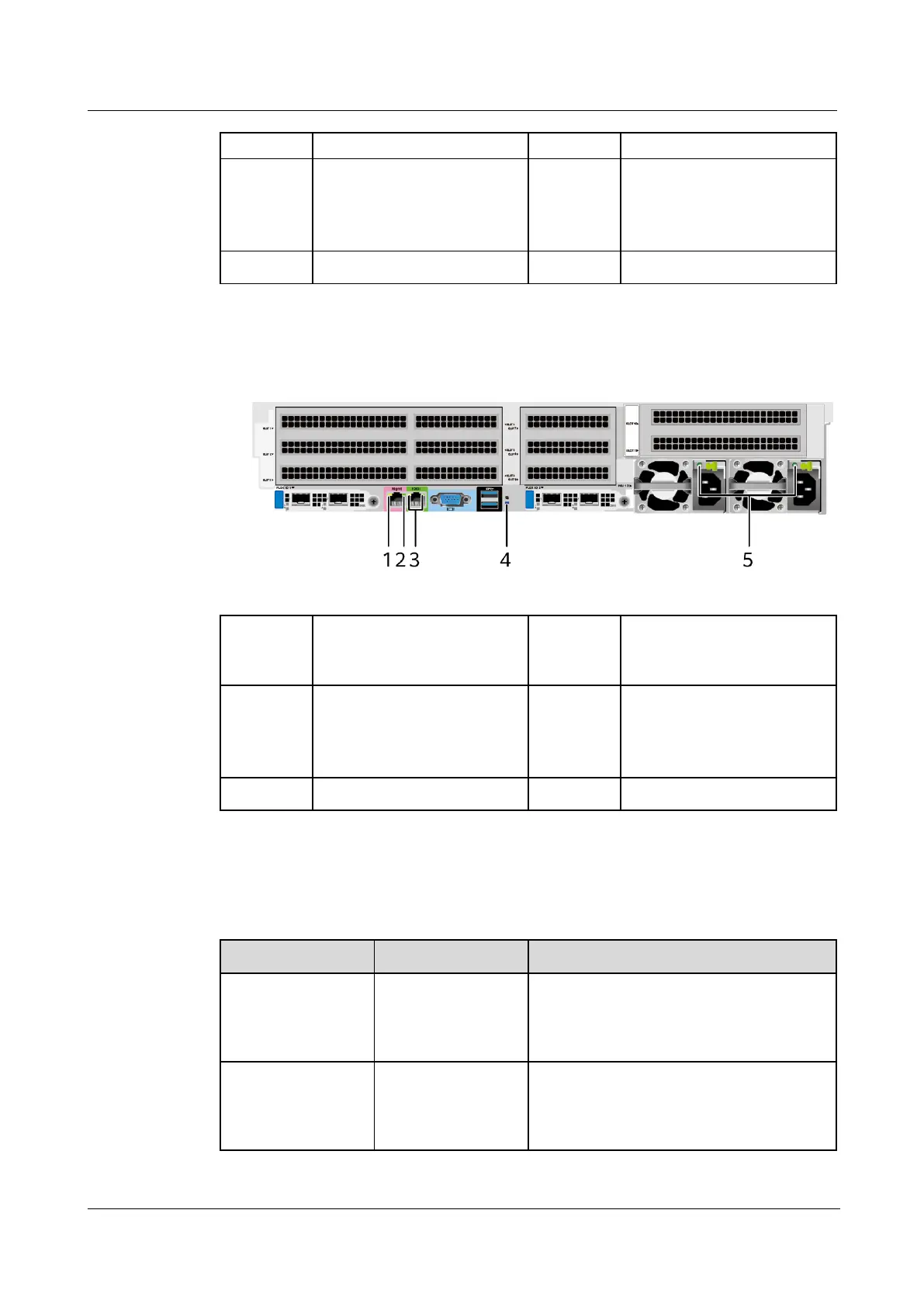

Server with 11 standard PCIe cards on the rear panel
Figure 5-23 Indicators on the rear panel
1
Data transmission status
indicator of the management
network port
2
Connection status indicator of
the management network port
3
Serial port indicator
NOTE
Reserved and unavailable
currently.
4
UID indicator
5
PSU indicator
-
-
Indicator Description
Table 5-3 Indicators on the rear panel
Silkscreen
Indicator
Description
-
Data transmission
status indicator for
the management
network port
⚫
Off: No data is being transmitted.
⚫
Blinking yellow: Data is being
transmitted.
-
Connection status
indicator for the
management
network port
⚫
Off: The network port is not connected.
⚫
Steady green: The network port is
connected properly.
