5.1.11 Boards
5.1.11.1 Mainboard

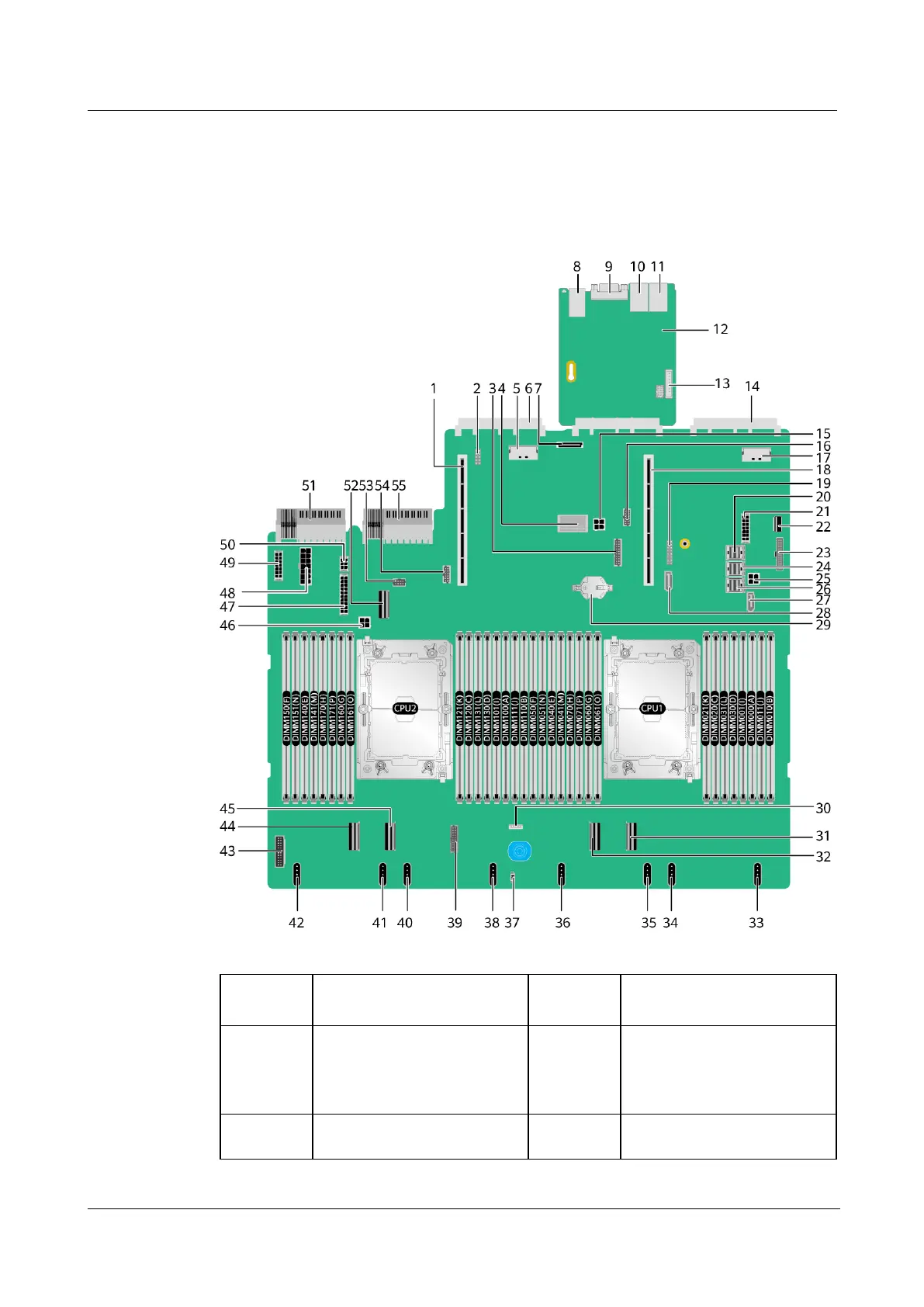

Figure 5-96 2288H V6-32DIMM mainboard
1
PCIe riser 2 slot (PCIE
RISER2/J51)
2
Debugging pin (J103)
3
Rear-drive backplane & BBU
low-speed signal connector
(BACK HDD BP&BBU
SIGNAL/J90)
4
Screw-in RAID controller
card connector (RAID
CARD/J86)
5
LP slimline 7 connector for
OCP 3.0 network adapter 2
6
OCP 3.0 network adapter 2
connector (OCP2
