xFusion Digital Technologies FusionServer 2288H V6

FusionServer 2288H V6 Server
Technical White Paper
5 Hardware Description
2022-06-25
191
This backplane is supported by 12 x 3.5" drive pass-through configuration 1, 12 x 3.5"
drive pass-through configuration 2, and 12 x 3.5" drive pass-through configuration 3 in
5.2.5.1.2 12 x 3.5" drive pass-through configuration.

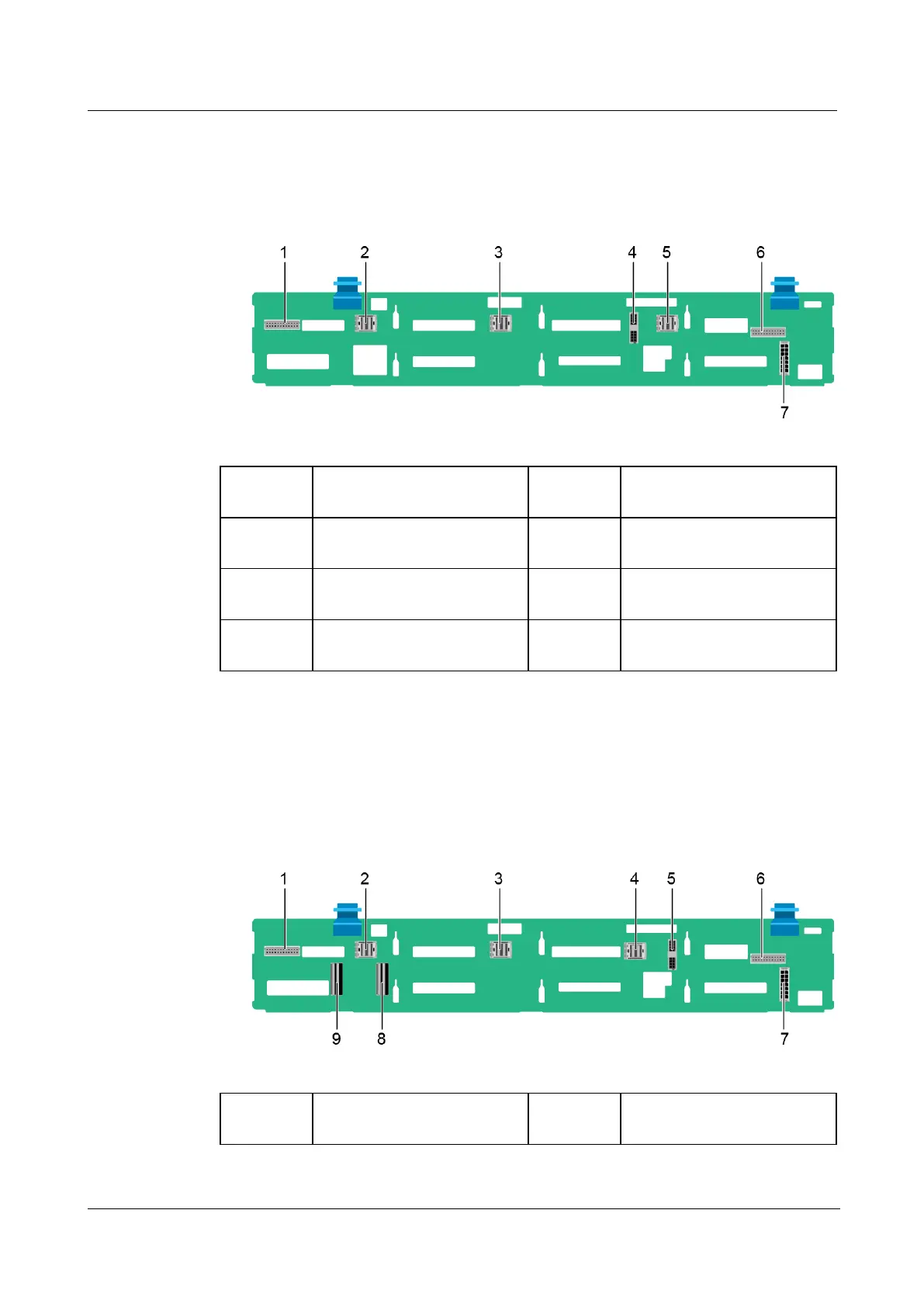

Figure 5-148 12 x 3.5" drive pass-through backplane
1
Indicator signal cable
connector (REAR BP0/J7)
2
Mini-SAS HD connector
(PORT C/J5)
3
Mini-SAS HD connector
(PORT B/J4)
4
Backplane signal cable
connector (HDD BP/J6)
5
Mini-SAS HD connector
(PORT A/J3)
6
Indicator signal cable
connector (REAR BP1/J8)
7
Power connector
(POWER/J1)
-
-
⚫
12 x 3.5" drive NVMe backplane (4 x NVMe)
This backplane is supported by 12 x 3.5" drive pass-through configuration 1 (4 x NVMe),
12 x 3.5" drive pass-through configuration 2 (4 x NVMe), and 12 x 3.5" drive
pass-through configuration 3 (4 x NVMe) in 5.2.5.1.2 12 x 3.5" drive pass-through
configuration.
Figure 5-149 12 x 3.5" drive NVMe backplane (4 x NVMe)
1
Indicator signal cable
connector (REAR BP0/J30)
2
Mini-SAS HD connector
(PORT C/J36)
