NOTE
⚫

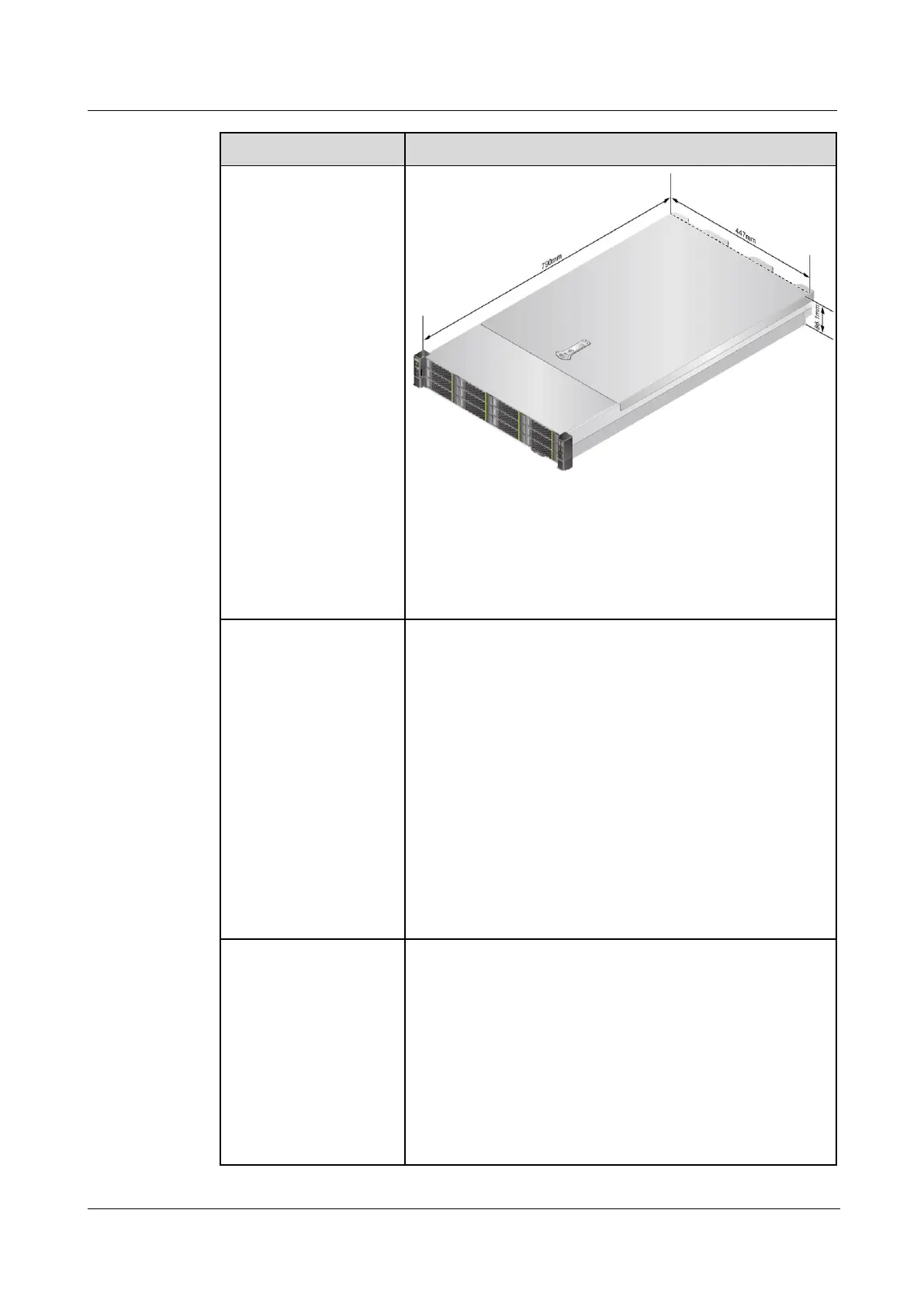

See Figure 6-1 for methods in measuring physical dimensions of
the chassis.
⚫
Methods measuring 3.5" and 2.5" drive chassis are the same. The
3.5" drive chassis is used as an example.
⚫
Requirements for cabinet installation:
Cabinet compliant with the International Electrotechnical
Commission (IEC) 297 standard
− Cabinet width: 482.6 mm (19.00 in.)
− Cabinet depth ≥ 1000 mm (39.37 in.)
⚫
Requirements for guide rail installation:
− L-shaped guide rails: apply only to our company's
cabinets.
− Static rail kit: applies to cabinets with a distance of
543.5 mm to 848.5 mm (21.40 in. to 33.41 in.) between
the front and rear mounting bars.
− Ball bearing rail kit: applies to cabinets with a distance
of 609 mm to 950 mm (23.98 in. to 37.40 in.) between
the front and rear mounting bars.
⚫
Net weight
− Maximum weight for server with 8 x 2.5" front drives:
22.5 kg (49.60 lb)
− Maximum weight for server with 12 x 2.5" front drives:
23.5 kg (51.80 lb)
− Maximum weight for server with 12 x 3.5" front drives:
35.5 kg (78.26 lb)
− Maximum weight for server with 20 x 2.5" front drives:
25.5 kg (56.22 lb)
− Maximum weight for server with 24 x 2.5" front drives:
