FusionServer 2288H V6 Server
Technical White Paper
5 Hardware Description
2022-06-25
24

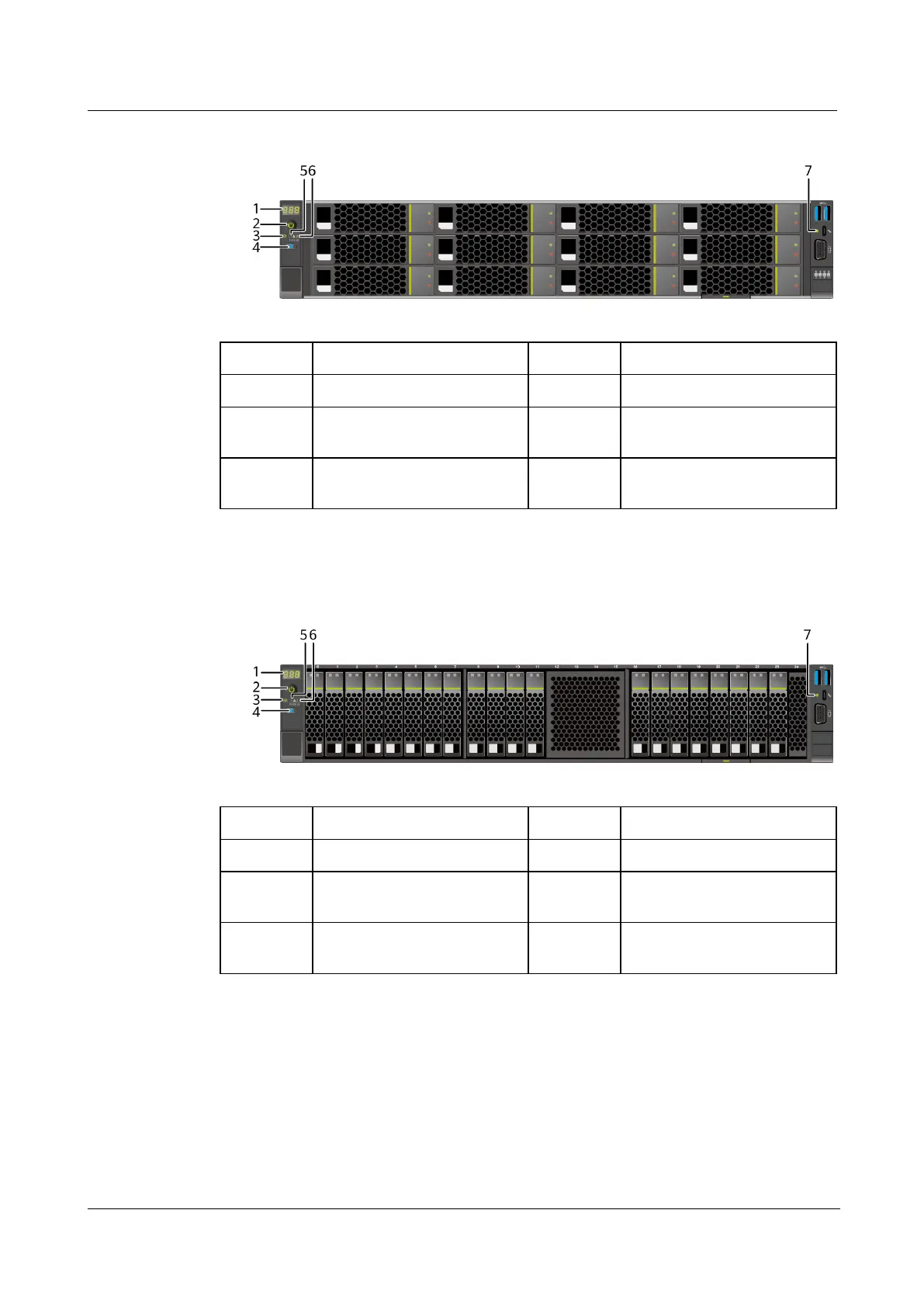

Figure 5-9 Indicators and buttons on the front panel
1
Fault diagnosis LED
2
Power button/indicator
3
Health status indicator
4
UID button/indicator
5
FlexIO card 1 presence
indicator
6
FlexIO card 2 presence
indicator
7
iBMC direct connect
management port indicator
-
-
⚫
20 x 2.5" drive configuration (4 x SAS/SATA + 16 x NVMe)
Figure 5-10 Indicators and buttons on the front panel
1
Fault diagnosis LED
2
Power button/indicator
3
Health status indicator
4
UID button/indicator
5
FlexIO card 1 presence
indicator
6
FlexIO card 2 presence
indicator
7
iBMC direct connect
management port indicator
-
-
⚫
24 x 2.5" drive configuration
