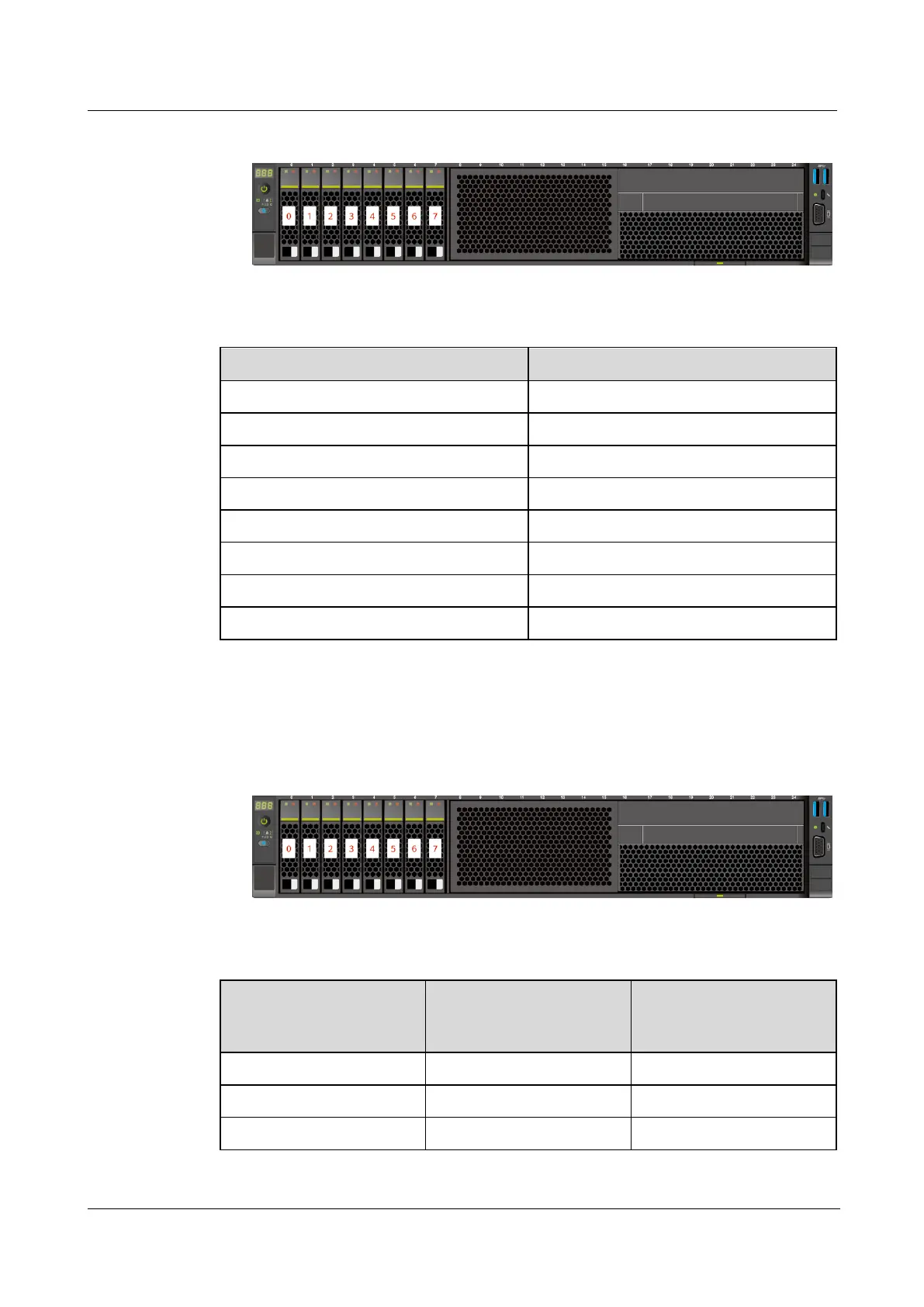

Figure 5-38 Slot numbers
Table 5-12 Slot numbers
Drive No.
Drive Number Identified by the iBMC
0
0
1
1
2
2
3
3
4
4
5
5
6
6
7
7
⚫
Drive slot numbers of 8 x 2.5" drive pass-through + 11 x PCIe card configuration 2, 8 x
2.5" drive pass-through + 11 x PCIe card configuration 3, and 8 x 2.5" drive + 4 x GPU
configuration 2 in Table 5-9
Figure 5-39 Slot numbers
Table 5-13 Slot numbers
Drive No.
Drive Number Identified
by the iBMC
Drive Number Identified
by the RAID Controller
Card
0
0
0
1
1
1
2
2
2
