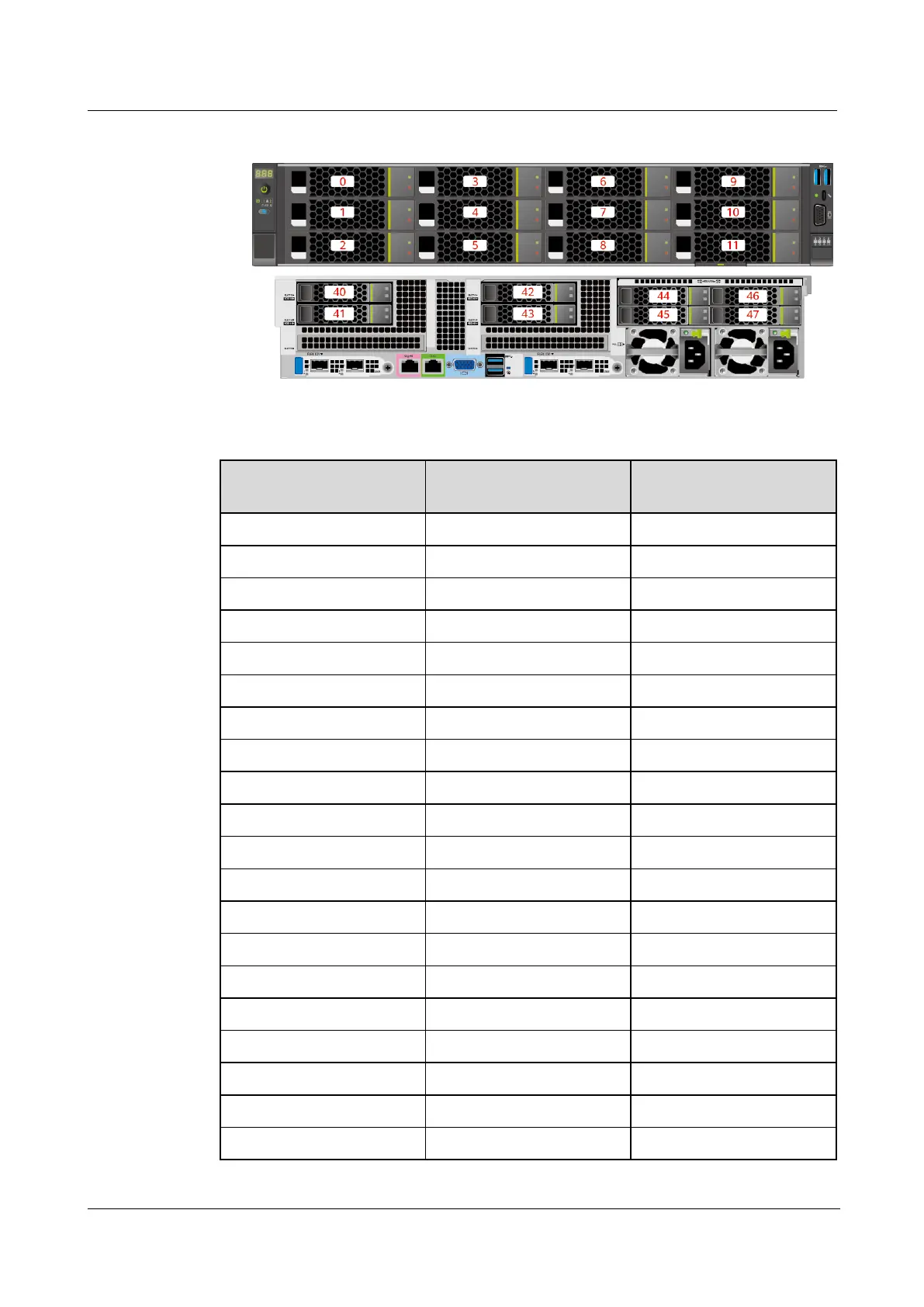

Figure 5-52 Drive slot numbers (2.5" drives in I/O module 1 and I/O module 2)
Table 5-24 Slot numbers
Drive No.
Drive Number Identified
by the iBMC
Drive Number Identified
by the RAID Controller
0
0
0
1
1
1
2
2
2
3
3
3
4
4
4
5
5
5
6
6
6
7
7
7
8
8
8
Note
9
9
9
Note
10
10
10
Note
11
11
11
Note
40
40
12
41
41
13
42
42
14
43
43
15
44
44
-
45
45
-
46
46
-
47
47
-
