MicroBlaze Development Kit Spartan-3E 1600 Edition User Guide 137
UG257 (v1.1) December 5, 2007 www.xilinx.com
RS-232 Ports, VGA Port, and PS/2 Port
R

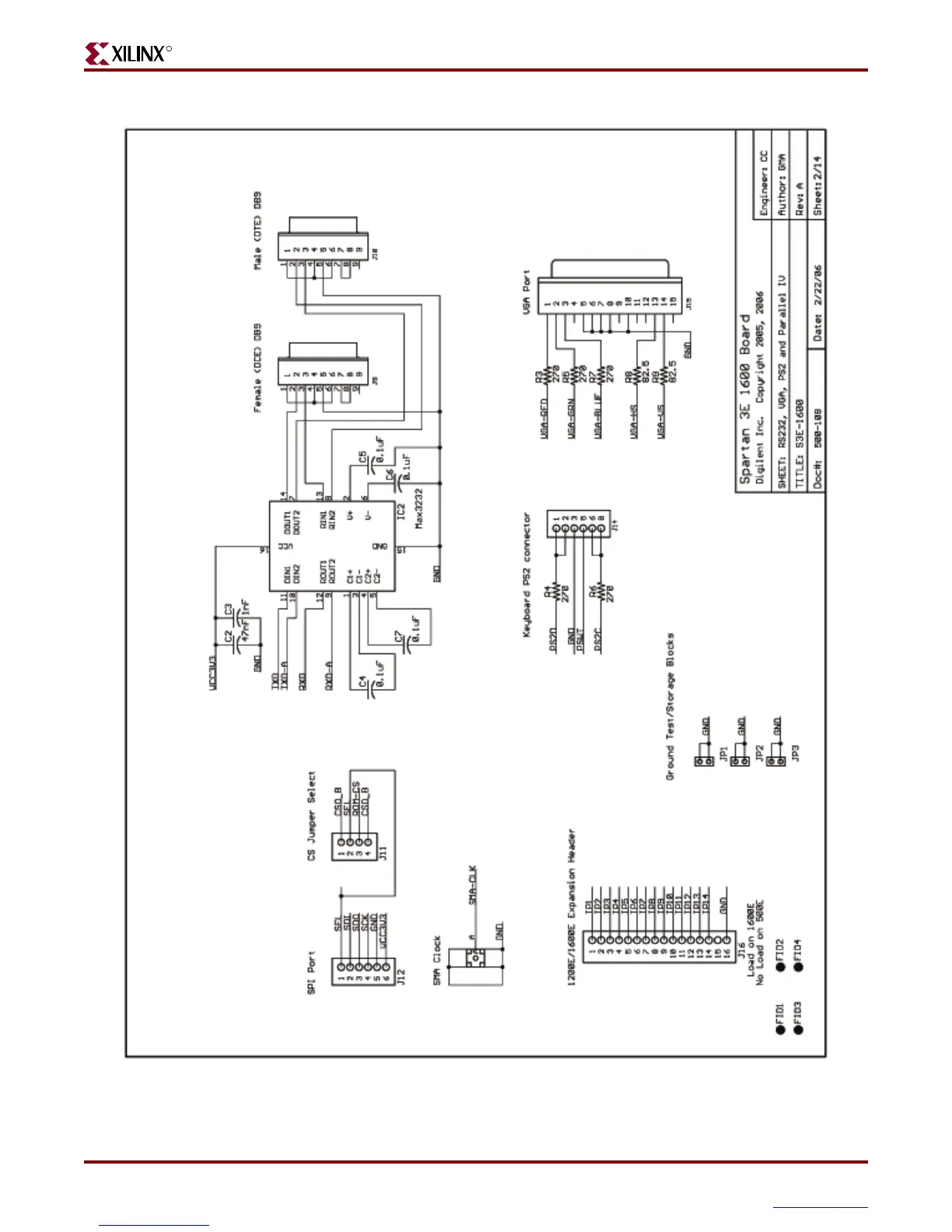

Figure 18-2: Schematic Sheet 2
UG257_A02_060606
