Chapter 7: ML561 Hardware-Simulation Correlation
R

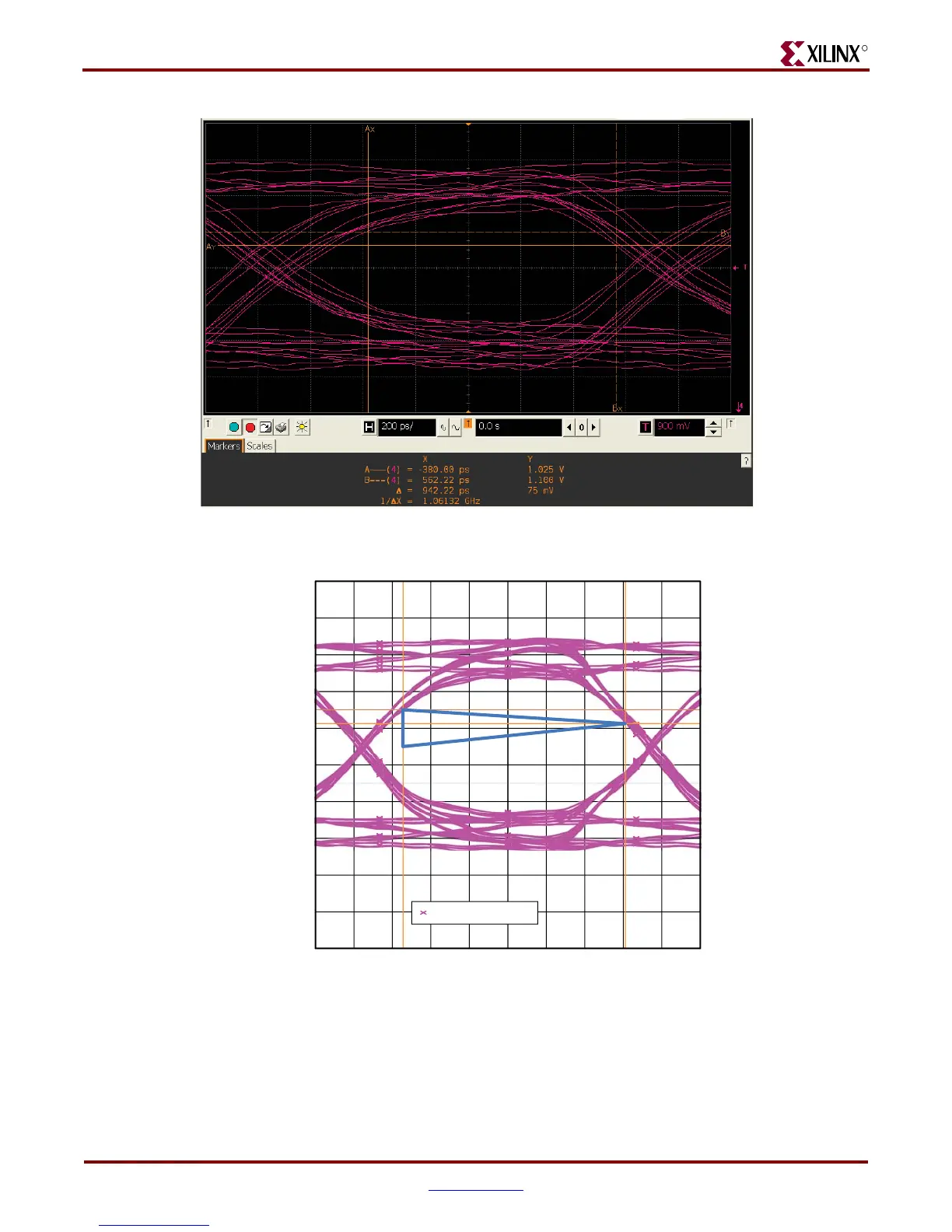

Figure 7-22: DDR2 DIMM Write HW Measurement - Eye Scope Shot at Probe Point #1 (DDR2 Memory Via)
UG199_c7_22_071107
Figure 7-23: DDR2 DIMM Write Correlation - Eye Scope Shot at Probe Point #1 (Slow Corner)
800.0 1200.0 1600.0 2000.0 2400.0 2800.0
-200.0
0.000
200.0
400.0
600.0
800.0
1000.0
1200.0
1400.0
1600.0
1800.0
UG199_c7_23_070907
Time (ps)
Voltage (mV)
Probe 3:C13.1 (at pin)
♦ 333 MHz, Slow, PRBS6, 77% UI
♦ Cursor 1: 1.1004V, 1.2553 ns
♦ Cursor 2: 1.0253V, 2.4105 ns
♦ Delta Voltage = 75.2 mV, Delta Time = 1.1582 ns (77% UI)
