Xilinx Virtex-7 FPGA VC7222 IBERT User Manual

VC7222 IBERT Getting Started Guide www.xilinx.com 49
UG971 (v5.0) June 12, 2014
11. In the new window, select Tools Run Tcl Script. In the Run Script window,
navigate to add_scm2.tcl in the extracted files and press OK. The SuperClock-2
Module Design Sources and Constraints are automatically added to the example
design (Figure 2-9).
X-Ref Target - Figure 2-9

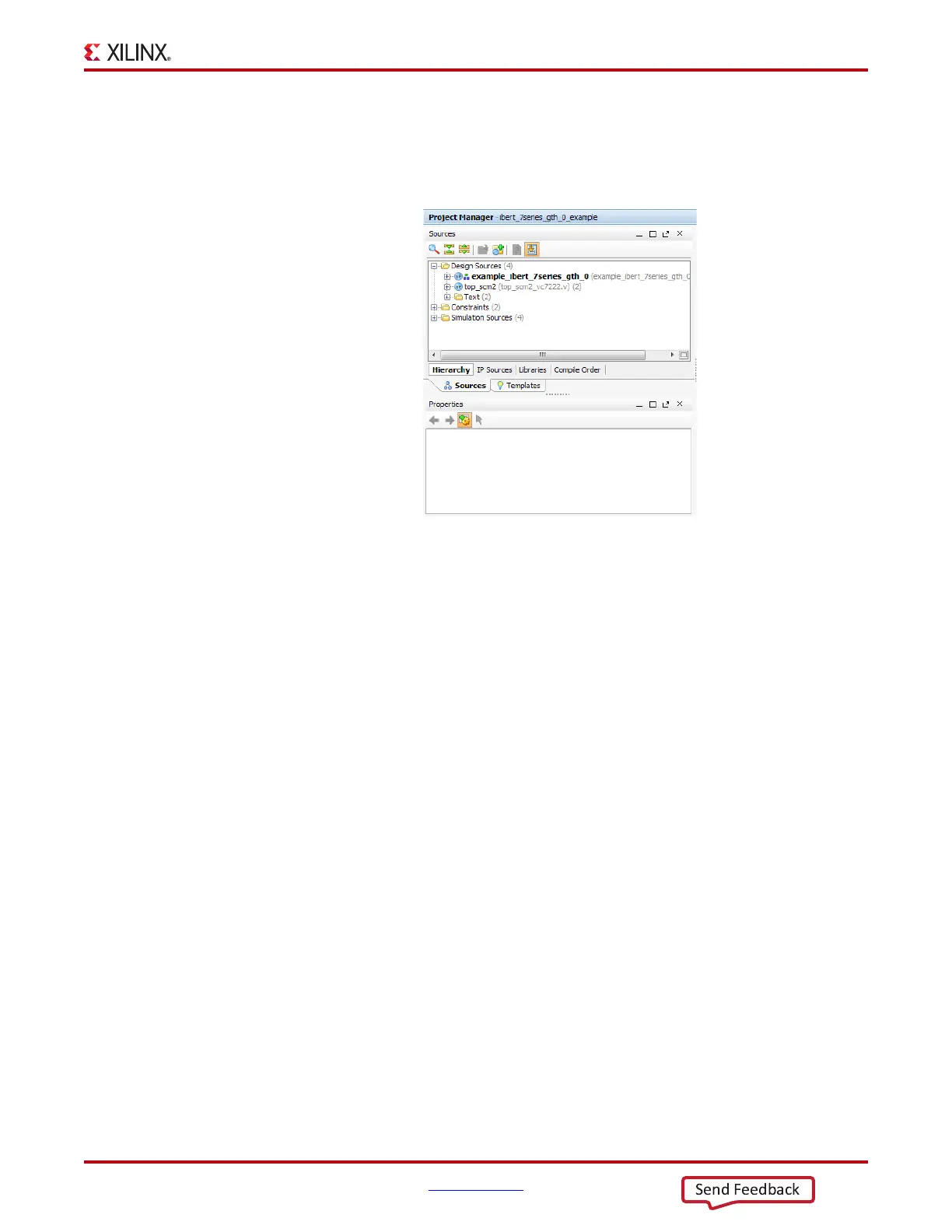

Figure 2-9: Sources after Running add_scm2.tcl
8*BFBB
Send Feedback
